Elecbee Laser PM100 Sensor TSP Sensor SDS198 Particle Sensor Dust Sensor Board Controller

SKU: EB0047518

Favorites

Key Features

Size: 71 x 70 x 23mm (L x W x H)

Accurate data: laser detection, stable and consistent;

Fast response: data update frequency 1 second 1 time

Easy to integrate: serial output (or IO port output can be customized), comes with a fan;

High resolution: the resolution of the particles has a minimum diameter of 1 micron;

Scope of application

TSP monitoring, dust monitoring, purification monitoring, road, factory, mine, construction site environmental monitoring;

xa0

Using the principle of laser scattering:

xa0

When the laser is irradiated to the particles passing through the detection position, weak light scattering occurs, and the light scattering waveform in a specific direction is related to the particle diameter. Real-time particles of different particle sizes can be obtained by waveform classification statistics and conversion formulas of different particle diameters. The concentration of the quantity is obtained according to the calibration method and the mass concentration is uniform with the official unit;

About the service life:

xa0

Lifetime is one of the key indicators of laser dust sensors. The laser dust sensor uses high-quality long-life imported laser diodes with a service life of up to 8,000 hours. For applications that do not last long (such as detectors), the default can be used. Configure 1 second continuous measurement. For applications that require continuous use (such as purifiers, air quality monitoring, etc.), you can use the indirect power-on measurement method to extend the service life, for example, 20 seconds for 1 minute, 40 seconds for shutdown. Extended life by up to 3 times

Number	Item	Parameter
1	Measurementxa0output	PM100
2	Range	0-20xa0mg/m3
3	Supplyxa0voltage	5V
4	Maximumxa0operatingxa0current	120mA
5	Sleepxa0current	2xa0mA
6	rangexa0ofxa0workingxa0temperature	-20-50℃
7	Responsexa0time
8	Serialxa0dataxa0outputxa0frequency	1xa0Hz
9	Sensitivity	1xa0ug/m3
10	Reproducibility	≤±10%
11	Relativexa0error	≤±15%xa0
12	Productxa0Size	71x70x23mm

Note: The interface spacing is 2.54 pitch, and the 90 degree pin interface is used without special instructions;

Protocol:

Serial communication protocol: 9600 8N1. (rate 9600, data bit 8, no parity bit, stop bit 1)

Serial port reporting communication cycle: 1.2 seconds

Data frame (10 bytes): message header + instruction number + data (6 bytes) + checksum + message tail

Bytexa0number	Name	Remarks
0	Messagexa0header	AA
1	Commandxa0number	CF
2	Dataxa01	Reserved
3	Dataxa02	Reserved
4	Dataxa03	PM100xa0lowxa0byte
5	Dataxa04	PM100xa0highxa0byte
6	Dataxa05	0xa0(reserved)
7	Dataxa06	0xa0(reserved)
8	Checksum	Checksum
9	Endxa0ofxa0message	AB

Checksum: The sum of the bytes from data 1 to data 6.

xa0

PM100 data content: PM100 (ug/m3) = ((PM100 high byte * 256) + PM100 low byte)

Size: 71 x 70 x 23mm (L x W x H)

Accurate data: laser detection, stable and consistent;

Fast response: data update frequency 1 second 1 time

Easy to integrate: serial output (or IO port output can be customized), comes with a fan;

High resolution: the resolution of the particles has a minimum diameter of 1 micron;

Scope of application

TSP monitoring, dust monitoring, purification monitoring, road, factory, mine, construction site environmental monitoring;

xa0

Using the principle of laser scattering:

xa0

About the service life:

xa0

Number	Item	Parameter
1	Measurementxa0output	PM100
2	Range	0-20xa0mg/m3
3	Supplyxa0voltage	5V
4	Maximumxa0operatingxa0current	120mA
5	Sleepxa0current	2xa0mA
6	rangexa0ofxa0workingxa0temperature	-20-50℃
7	Responsexa0time
8	Serialxa0dataxa0outputxa0frequency	1xa0Hz
9	Sensitivity	1xa0ug/m3
10	Reproducibility	≤±10%
11	Relativexa0error	≤±15%xa0
12	Productxa0Size	71x70x23mm

Note: The interface spacing is 2.54 pitch, and the 90 degree pin interface is used without special instructions;

Protocol:

Serial communication protocol: 9600 8N1. (rate 9600, data bit 8, no parity bit, stop bit 1)

Serial port reporting communication cycle: 1.2 seconds

Data frame (10 bytes): message header + instruction number + data (6 bytes) + checksum + message tail

Bytexa0number	Name	Remarks
0	Messagexa0header	AA
1	Commandxa0number	CF
2	Dataxa01	Reserved
3	Dataxa02	Reserved
4	Dataxa03	PM100xa0lowxa0byte
5	Dataxa04	PM100xa0highxa0byte
6	Dataxa05	0xa0(reserved)
7	Dataxa06	0xa0(reserved)
8	Checksum	Checksum
9	Endxa0ofxa0message	AB

Checksum: The sum of the bytes from data 1 to data 6.

xa0

PM100 data content: PM100 (ug/m3) = ((PM100 high byte * 256) + PM100 low byte)

Show Less

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

PM100

Show Similar Products >

Description

Introduction:

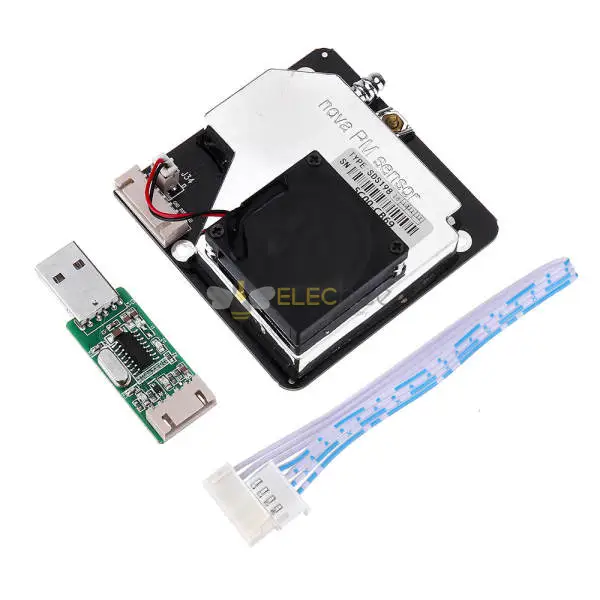

The PM100 sensor is also known as a full dust or TSP sensor. Using the principle of laser light scattering, SDS198 can obtain the concentration of suspended particles in the air from 1 to 100 microns, using imported lasers and photosensitive parts, the data is stable and reliable; built-in fan, digital output, high integration.
