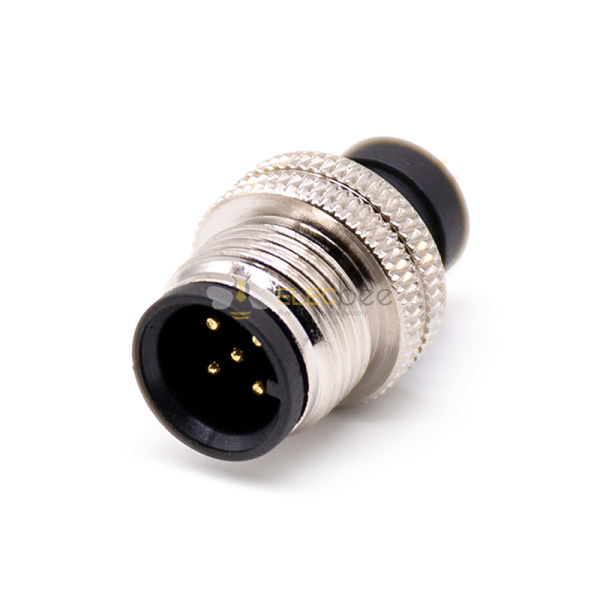

Elecbee M12 Molded Cable Connector A Code Straight 5pin Male Non-shield connector

SKU: EB-400-2324-1
Favorites
Key Features

Features:

  • A code,5 Pin,Male,Straight,Solder Cup,Unshielded,m12 Connector
  • thread locking mechanism, anti vibration locking design,12mm thread joint;
  • Easy quick connect and disconnect coupling;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
Show More
Attribute
Value
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder Cup
Contact Type
Male Pin
Shell Finish
Nickel Plated
Number of Positions
5 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated)
Rated Current
4A
Rated Voltage
60V
Connector Series
M12
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
22AWG
Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.
Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
R*****
Perfect fit for our industrial sensors. The IP67 rating is legit – survived a washdown cycle without issues. Easy to install with pre-molded cables.
l****a
Solid metal housing feels durable. Was looking for a non-shielded 5-pin male A-code and this delivered. Only wish shipping was a bit faster.
B****a
Exactly as described. Used in a factory automation setup – reliable connection even with vibration and dust. Great value for the quality.
d****r
Works well so far, but the cable termination required extra care during soldering. Good product if you're experienced with M12s.
L****K
Been using these in electric vehicle prototyping. The straight plug-and-play design saves time. Will definitely reorder.
