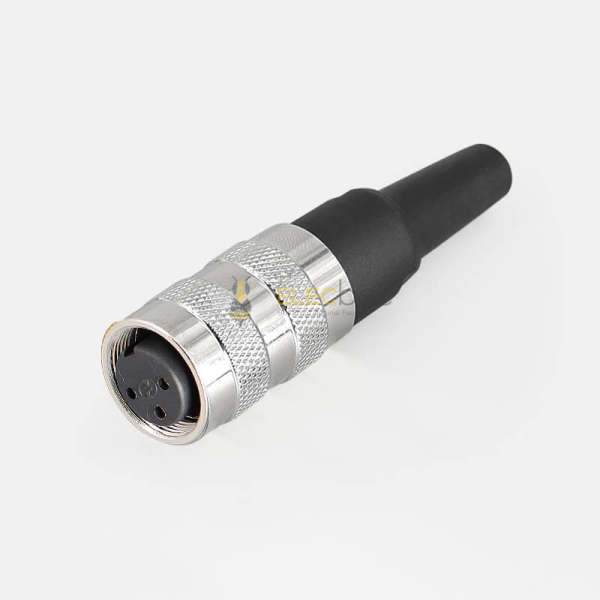

Elecbee M16 3pin Connector female Plug Metal Waterproof M16 J09 Connector

SKU: EB-400-3123-H
Favorites
Key Features

Features:

  • Connector Series: M16 / J09
  • Standard: IEC 61076-2-101
  • Coding: A
  • Pins: 2 3 4 5 6 7 8 12 14 16 19 Pin
  • Gender:Female
  • Connector Locking System: Fix the screw
  • Ambient Temperature: -25°C~+85°C
  • Connector Body: PA66+GF
  • Contacts: Phosphorus copper with gold plated
  • Screw/Nut: Brass with nickel plated
  • Waterproof 0-ring: FKM
  • Glue: Black epoxy resin
  • Wire Jacket: PVC/PUR

Noted: J09 series connectors. It can be compatible with the Amphenol C091D series, Binder 423 series and 680 series. It is applied to industries such as instrumentation, sensors, automation control and communication.

Show More
Attribute
Value
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder Cup
Contact Type
Female Pin
Shell Finish
Nickel Plated
Number of Positions
3 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated)
Rated Current
7A
Rated Voltage
250V
Connector Series
M16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
20AWG
