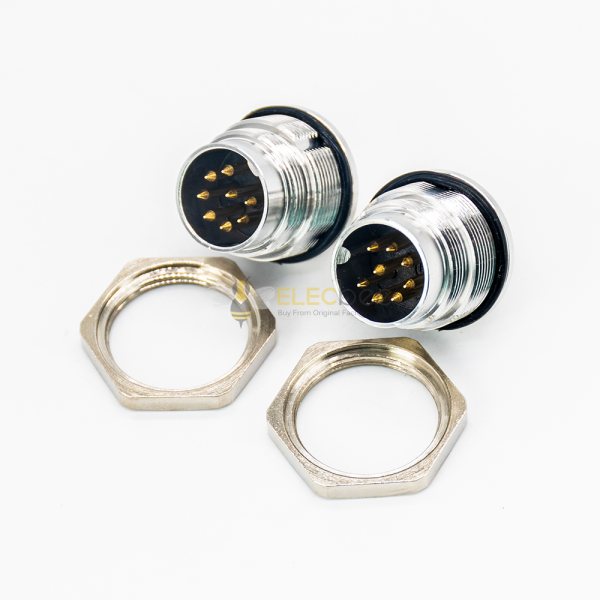

Elecbee M16 Dip PCB Connector Waterproof 8pin Male Back Shield Mount Connector Shield

SKU: EB-400-3006
Favorites
Key Features

Features:

  • M16,Panel Receptacles,Front Mount,Waterproof,8 Pin,Male,Straight,PCB,Shield
  • Extremely strong resistant to acid, alkali, chemical cleaning agent / reagent properties
  • Resistant to welding spark, continually twist
  • Resistant to oil, coolant, lubricant and emulsion
  • Straight jack and straight plug configurations available
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of M16 Connectors:

  • Petroleum
  • Chemical industry
  • Iron and Steel
  • Electricity
  • Automotive Industry
Show More
Attribute
Value
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Front Side Nut
Contact Type
Male Pin
Shell Finish
Nickel Plated
Number of Positions
8 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated)
Rated Current
5A
Rated Voltage
125V
Connector Series
M16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
20AWG
