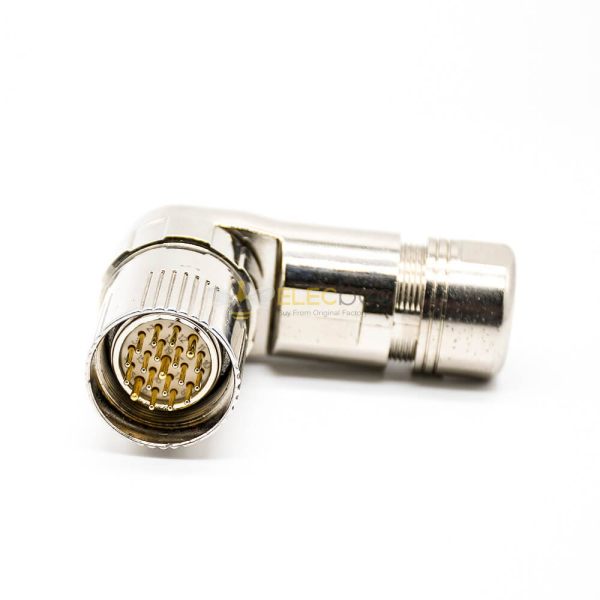

Elecbee M23 19 Pin Male Connectors Solder Type for Cable Shield 90 degree

SKU: EB-400-4093
Favorites
Key Features

Features:

  • 19pin,Male,90 degree,for Cable,Solder Type,Shield,M23 Connector
  • Male/Female, Straight/right angle
  • wire/pcb/cable,
  • Termination: Soldering/crimping, Front Mount "
  • thread locking mechanism, 23mm metric size,  central lock
  • Easy quick connect and disconnect coupling
  • High Quality with 30 days 100% Money back.
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • Applications
  • ●  Automation
  • ● Transport
  • ● Power generation
  • ● Shipbuilding
  • ● Medicine
Show More
Attribute
Value
Connector Type
Plug
Mounting Type
Panel Mount
Contact Type
Male Pin
Shell Finish
Nickel Plated
Number of Positions
19 Pin
Operating Temperature
-20℃~+85℃
Shielding
Shielded
Ingress Protection
IP67(mated)
Rated Current
8A
Rated Voltage
125V
Connector Series
M23
Color
Silver
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
White
