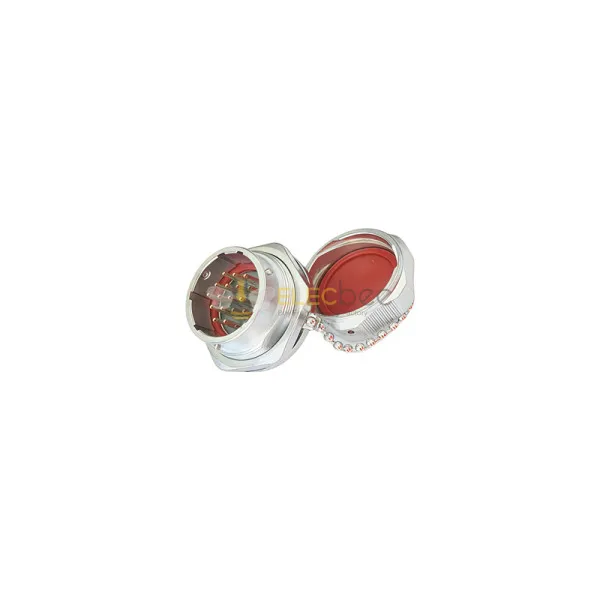

Elecbee Metal Aviation Connector WY Series Back Mount Receptacle Straight 24pin Male Socket WY28J24ZMQ

SKU: EB-WY28J24ZMQ
Favorites
Key Features

Features:

  • Material: Zinc alloy shell, robust and durable for harsh conditions
  • Specifications: Multiple dimensions and configurations available
  • Environment: Outdoor use IP55-IP67
  • With bayonet locking structure ,great component to work under waterproof and vibrating conditions.
  • Applications: EV batteries, automation, robots, security, monitoring, sensors, etc.
Show More
Attribute
Value
Connector Type
Receptacle
Mounting Type
Free Hanging
Termination
Solder
Contact Type
Male Pin
Shell Finish
Chrome Plated
Number of Positions
24 Pin
Operating Temperature
-40℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
400VAC
Connector Series
WY28
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
M28
Insulation Color
Black
