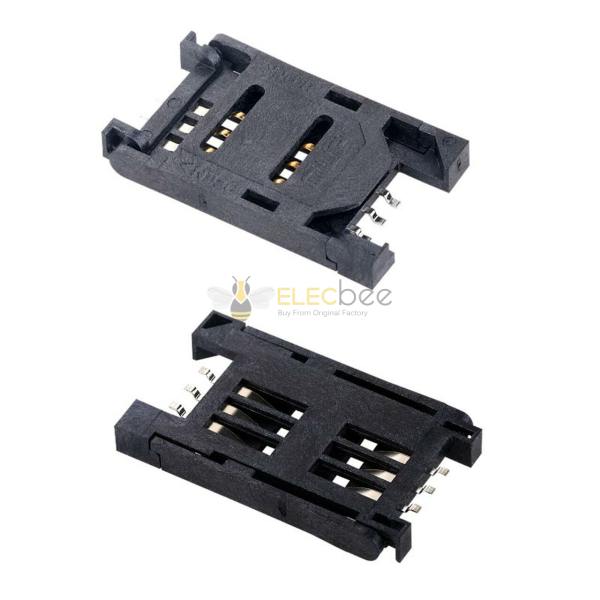

Elecbee MUP-C713 - 6Pin GSM11.11 SMT Sim Card Connector Shaft Up/Down/Horizontal

SKU: EB-508-0007
Favorites
Key Features
  • Compact 6Pin SMT SIM connector for reliable GSM integration.
  • Supports up/down/horizontal mounting for flexible PCB design.
  • High-quality green terminal with 3.50mm/3.81mm pitch options.
  • Rated 300V/10A for durable and safe electrical connections.
  • Through-hole screw clamping ensures secure wire termination.
Show More
Description

Description

The C713 is in strict accordance with GSM11.11 international recognized standard. It is designed for high performance and flexibility to give prospective customers a quick applications of the individual devices in their product series.

Resources
Datasheet


Extra Information

Brand:
MUP Industrial Co.
Dimensions:
29.65LX17.20WX2.50H mm
Weight:
Approx. 1.10 g
Contact principle:
Friction technology
Durability:
5,000 cycles Min
Rated voltage:
50V max
Number of Contacts:
6 Pins
Mounting System:
SMT(With Post)
Operation temperature:
-40~85 C
Rated current:
1A max
