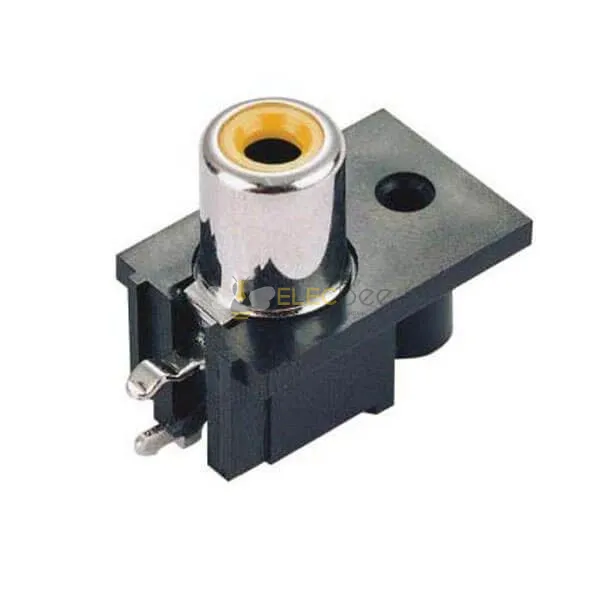

Elecbee PCB Mount RCA Chassis Sockets Female Right Angle Vedio Connector

SKU: EB-016-0062
Favorites
Key Features

Product features:

  • RCA,Female/Jack,socket,Right Angle,For pcb,Zinc Alloy,Nickel Plated
  • Commonly used to carry audio and video signals. ;
  • It is low-cost, simple design,quickly Installation;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • Transportation: Cars, Motorcycles
  • Home Appliances: TV, Refrigerators, VCDs, DVDs, Projectors, Lighting Products
  • Data Communication: Mobile Phone, Computers, CNC Equipment
  • Security: Alarms, Monitors, Security Products
Show More
Datasheet
Attribute
Value
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Edge Mount
Termination
Solder
Number of Positions
1 Pin
Operating Temperature
-55℃~+165℃
Insulation Color
Red, White
