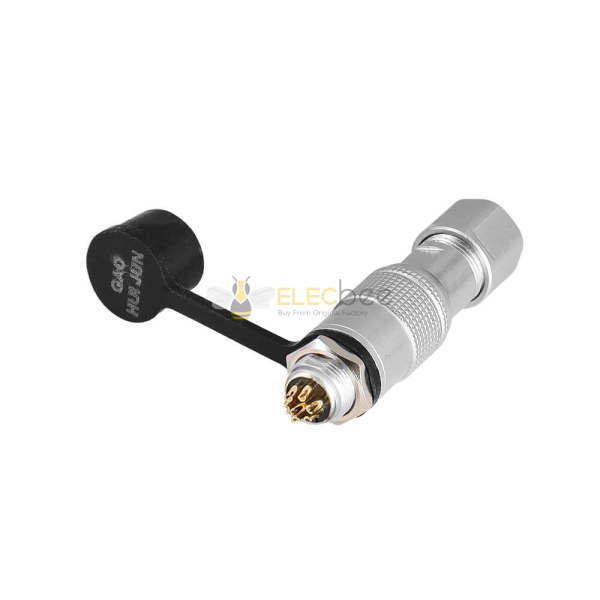

Elecbee Push-Pull Quick Lock Avation Connector YC8 Series reverse Mount7 Pin Male Plug Female Socket Waterproof

SKU: EB-040-0018
Favorites
Key Features

Features:

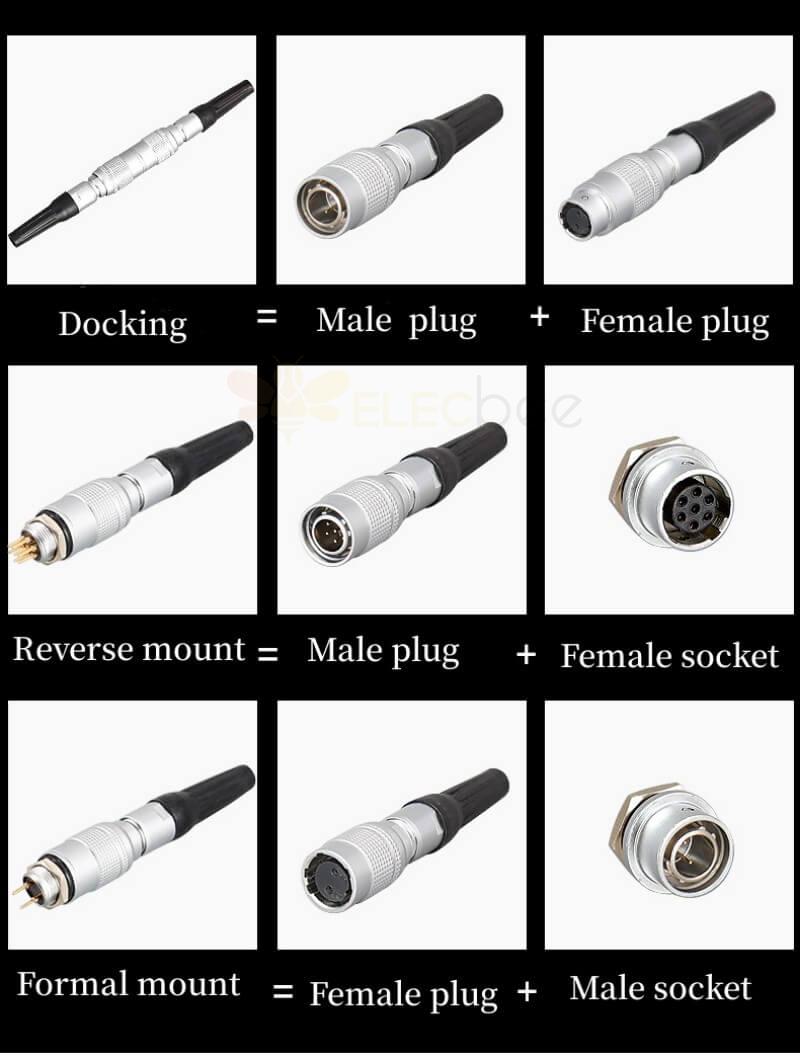

  • YC8 series aviation connector, Straight, Solder Cup, 7 Pin,  Reverse mount, Male  plug and Female socket
  • Termination Type: Solder Type
  • Shell Material: Chrome-plated brass
  • Contact Material: Copper Gold Plating
  • Coupling: Pull-push quick lock Connection
  • Temperature Range: -20 ℃ ~ +70 ℃
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
7 Pin
Operating Temperature
-20℃~+70℃
Rated Current
2A
Rated Voltage
250VAC
Connector Series
YC8
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Brass
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PPS
Insulation Color
Black
Description

Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Recommended For You

Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
A****d
Perfect for my drone project! The reverse mount 7-pin design fits exactly in the tight space I had. Soldering was smooth thanks to the gold-plated copper contacts.
T****y
Solid build with that chrome-plated brass shell. The push-pull locking is quick and secure. Only wish it handled slightly higher current, but works great within spec.
S*****
Waterproof and durable in outdoor use. After 3 months in a humid environment, no corrosion or signal loss. PPS insulator seems to really help with stability.
A****e
Good connector for the price. Solder cup type takes some skill to wire cleanly. Took a few tries to avoid cold joints on the small pins.
B****i
Over 1,000 mating cycles tested in our lab setup—still locks tightly. The silver finish looks sharp and resists fingerprints well.
