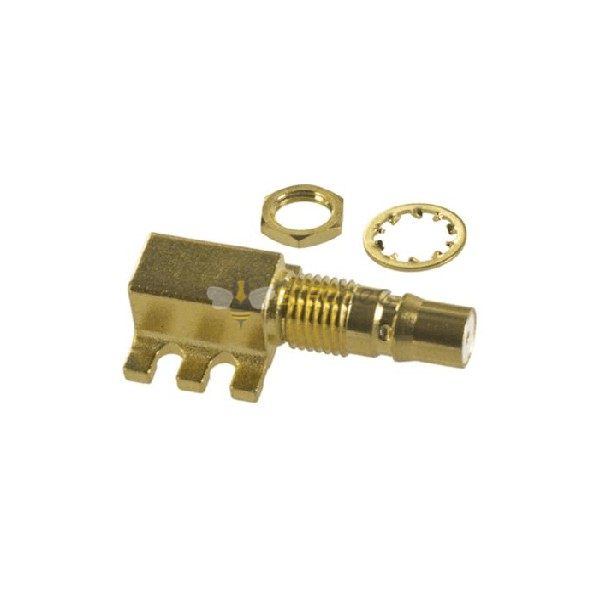

商品图

Elecbee QMA Right Angle PCB Mount Connector Jack Solder Termination

SKU: EB-024-0004
Favorites
Key Features
  • Female,Right Angle,Solder, PCB Mount,Threaded,Brass,Golden
  • replace the traditional threaded connection of SMA and N with a snap-fastening to allow faster mating
  • allow for 360° cable rotation after installation
  • 50 Ohm nominal impedance
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of QMAxa0Connectors:

  • Mil-Aero
  • Telecommunication
  • Cellular base stations
  • Antennas
  • defense applications
  • Radar systems



Show More
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Flush Mount
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Connector Series
QMA
Color
Gold
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper Alloy
