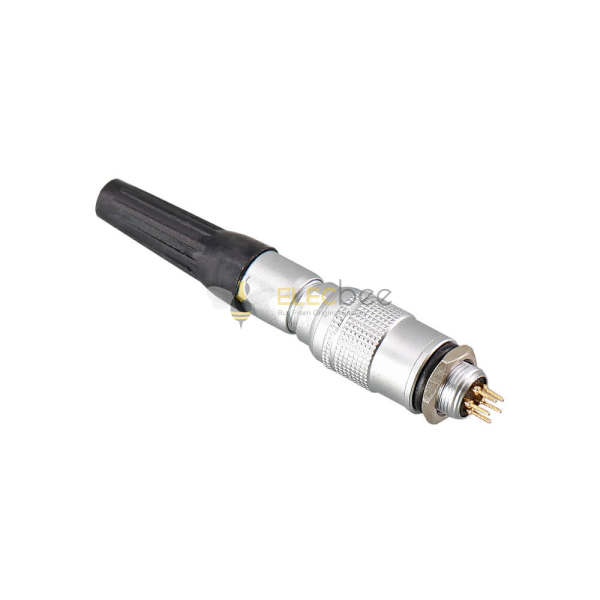

Elecbee Reverse Mount YC8 Series Avation Connector5 Pin Pcb Mount Male Plug Female Socket Push-Pull Quick Lock

SKU: EB-040-0028
Favorites
Key Features

Features:

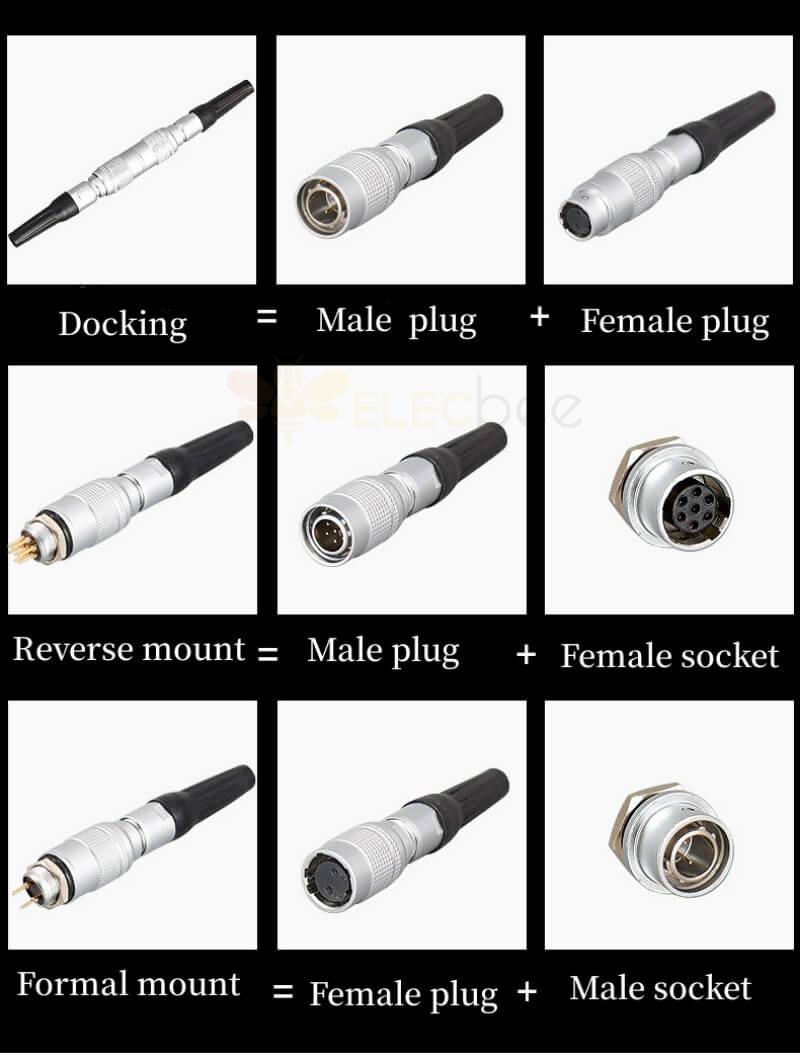

  • YC8 series aviation connector, Straight, 5 Pin,  Reverse mount, Male  plug and Female socket, Pcb Mount
  • Termination Type: Solder Type
  • Shell Material: Chrome-plated brass
  • Contact Material: Copper Gold Plating
  • Coupling: Pull-push quick lock Connection
  • Temperature Range: -20 ℃ ~ +70 ℃
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
5 Pin
Operating Temperature
-20℃~+70℃
Rated Current
2A
Rated Voltage
250VAC
Connector Series
YC8
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Brass
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PPS
Insulation Color
Black
Description

Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Recommended For You

Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
T****u
Perfect fit for my PCB project. The push-pull lock is solid and the gold-plated contacts ensure great conductivity. Easy to solder too.
A****A
Good quality connector. Chrome-plated brass body feels durable, and it mates securely. Only wish the pin alignment was a bit more forgiving during assembly.
B****a
Exactly as described. The reverse mount 5-pin setup worked flawlessly on our board. Love the quick-lock mechanism—saves so much time in field repairs.
T****a
Works well enough, but took extra care when soldering due to heat sensitivity of the PPS insulator. Connection is stable once assembled.
S****a
Impressed by the build quality. After 500+ insertions, still no sign of wear. Great choice for rugged applications.
