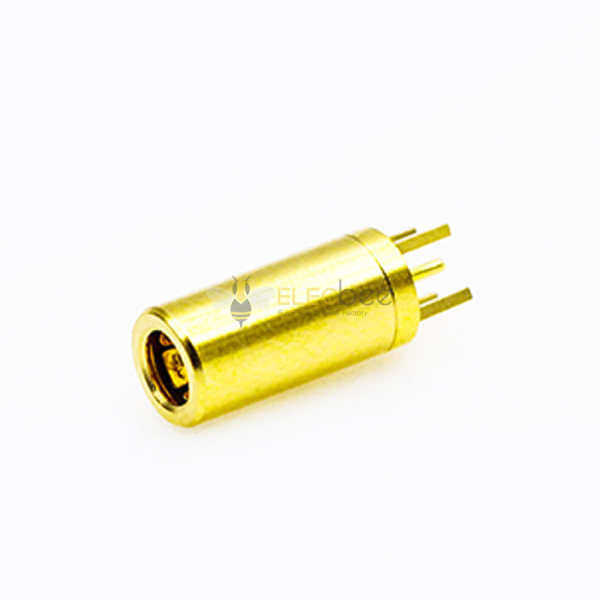

Elecbee RF SSMB Connector Female Straight Solder PCB Mount Through Hole

SKU: EB-211-0193
Favorites
Key Features

Features:

  • Lightweight and space saving alternative to SMB;
  • Snap-on interface for quick and easy installation;
  • 50 Ohm options available;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • Military
  • Instrumentation
  • PC/LAN
  • Wireless
Show More
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
12.4 GHz
Connector Series
SSMB
Color
Gold
Fastening Type
Push-on
Orientation
Straight
Shell Material
Zinc Alloy
