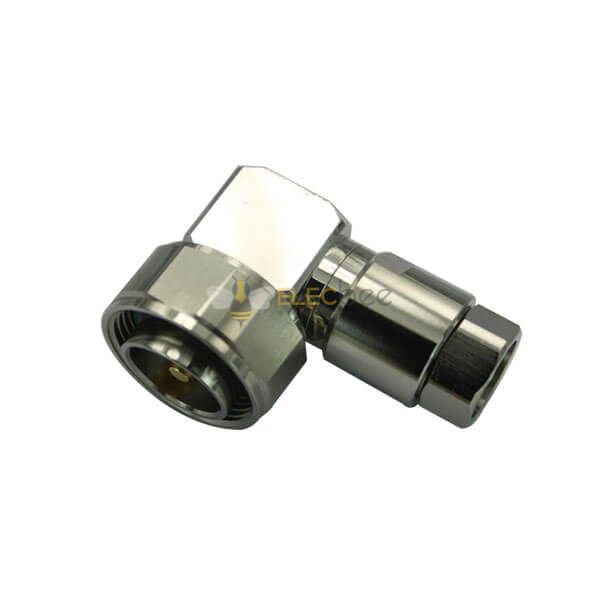

Elecbee Right Angle 7/16 DIN Connector Male Clamp Type for LMR195 RG214

SKU: EB-012-0007
Favorites
Key Features
  • Cable Connector, plug/male, Angled/90°, DIN7/16 Connector, Clamp Type, LMR195, RG214;
  • Designed to minimize signal distortion from inter modulation;
  • Screw on coupling ensure high durability and allow toolless application;
  • Excellent performance up to 5.2GHz frequency.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of DIN7/16 Connectors:

Consumer Electronic: Statellite Receivers, Statellite Radio
Aerospace and Defense: High-power communication devices
Commercial Vehicle: Bluetooth
Telecommunications: Antenna, Base Station
Industriasl: Antenna Mounts, Machine to Machine Communications


Show More
Attribute
Value
Connector Type
Male
Number of Ports
1
Mounting Type
Cable Type
Termination
Clamp
Contact Type
Male Pin
Shell Finish
Nickel Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Suitable Cable
LMR195, RG214
Connector Series
DIN 7/16
Color
Silver
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper Alloy
