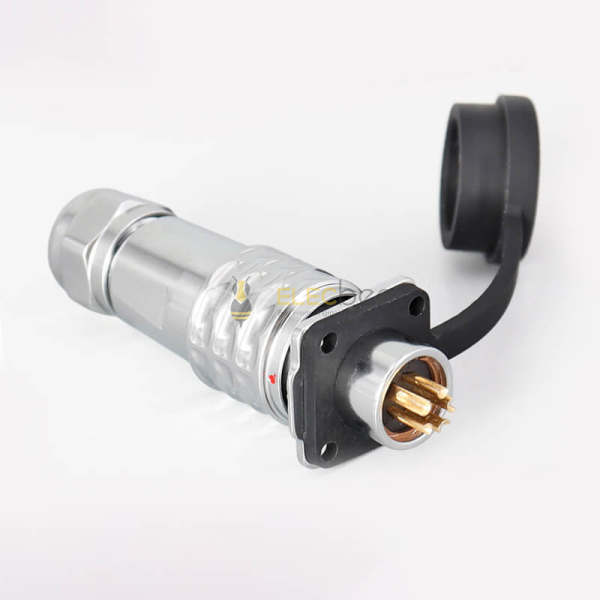

Elecbee SF12-5 Pin Waterproof Plug+Socket 4-Hole Flange Aviation Quick Circular Push-Pull Industrial Metal

SKU: EB-037-0012
Favorites
Key Features

Feature

  • Sloder,  Push-pull quick, Male plug , Female  socket, 4-hole flange, Waterproof,  5pin
  • WaterproofIP67
  • Low frequency
  • Easy quick connect and disconnect coupling;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application :

  • Applications: used in aviation, navigation, computers, communications, anti-theft devices, transportation, machinery and electronics, etc.



Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
5 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
180VAC
Features
Waterproof
Connector Series
SF12
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
12
Insulation Color
Black
Key
A Code
Description

Connection method:  Push-pull Quick

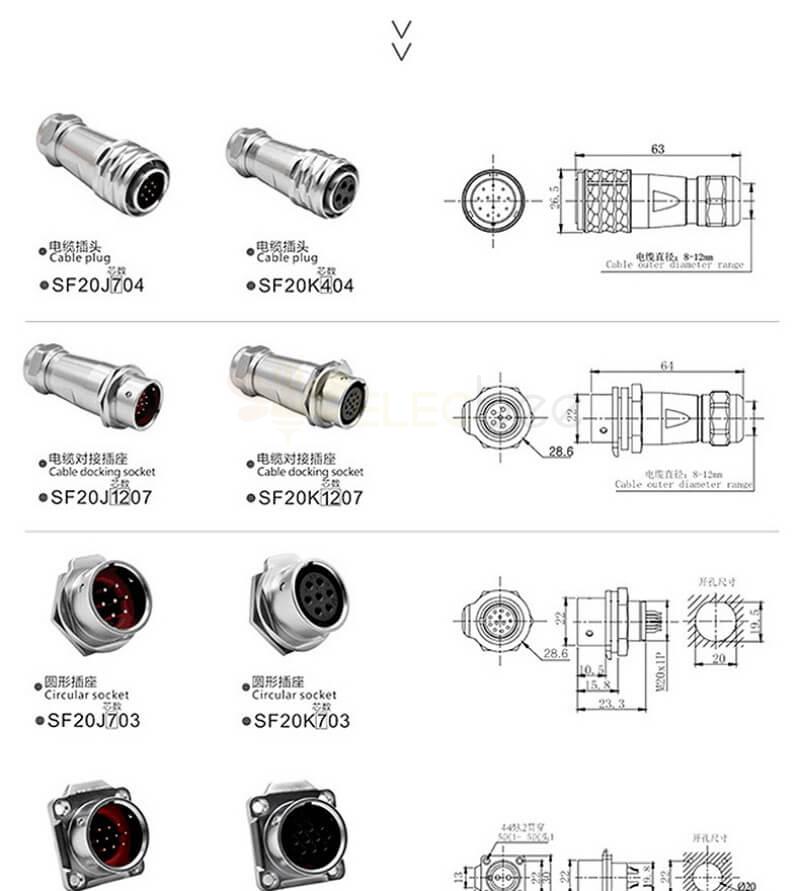

SF6   options: 2,3,4,5 pin

SF12   options:2,3,4,5,6,7,9 Pin

SF20    option:2,3,4,5,6,7,9,10,12 pin
