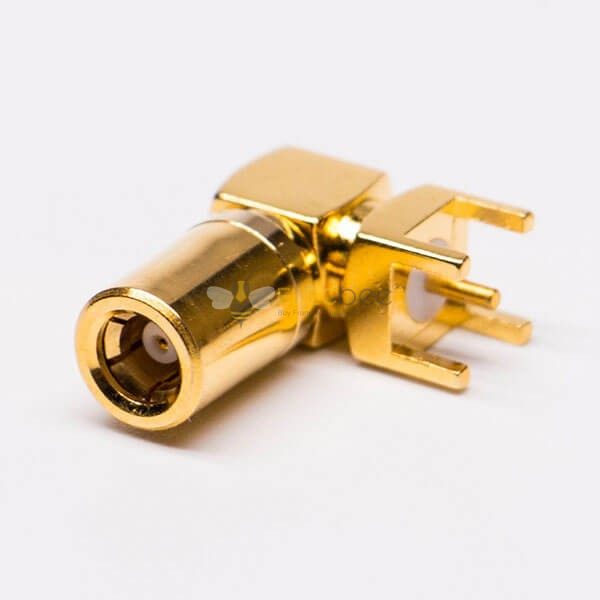

Elecbee SMB Connector Male Angled Through Hole for PCB Mount

SKU: EB-008-0005

Favorites

Key Features

Pcb Mount, plug/male, Angled/90°, 50Ω, Through Hole;
Snap-on coupling design for fast installation;
With boardband performance and low reflection;
To reduce your Cost by using die casting process in non-critical areas.
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMBxa0Connectors:

Aerospace and Defense: Test Stands
Technology: Telemetry
Commercial Vehicle: GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications: Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

17%

4 stars

5 stars

67%

P****n

I needed to a few little SMB connectors for project around 1 GHz. These worked just fine. They had an insertion loss of something like 0.1 or 0.2 dB (hard to tell really). They had basically a flat frequency response from 10 kHz to 2 GHz.

m****t

Perfect for my PCB design—angled 90° male connector saves space and the gold-plated brass ensures solid signal up to 4 GHz.

Z****h

Great impedance stability and snap-on fit is quick. Slight tightness during mating, but holds well after 200+ cycles.

A****h

Used in a telemetry project—low VSWR and excellent performance across 0–4 GHz. Teflon insulator adds reliability.

S****n

Good value with gold finish and solid specs. Mounting holes are precise, but be careful with soldering—Teflon can warp if overheated.

?****?

Exactly as described. The die-casting reduces cost without sacrificing durability. Works flawlessly in my GPS module array.
