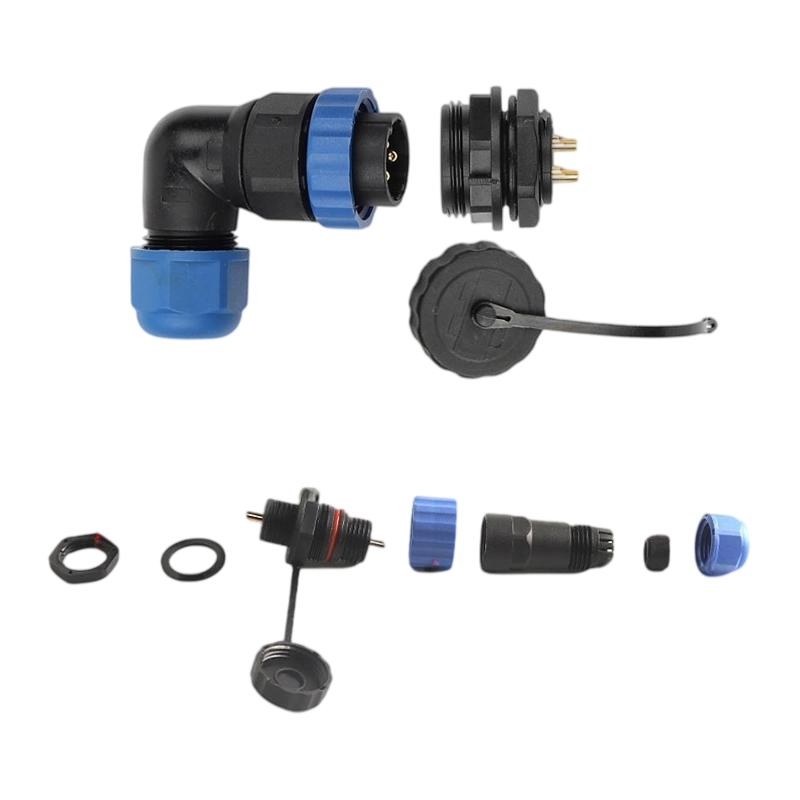

Elecbee SP29 Series Waterproof Aviation connector 10 pin Right Angle Solder Type Male Plug and Female Rear-nut mount Socket one pair

SKU: EB-410-3015
Favorites
Key Features

Features:

  • SP29 Series Connector,Angled,Standard Type,Rear-nut Mount Socket and Right Angled Plug,Solder Contact,10 Pin
  • With its IP68 rating, each product is excellent within harsh environments
  • Easy quick connect and disconnect coupling
  • High cost-effective with good quality
Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Number of Positions
10 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
25A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
SP29
Color
Black, Blue
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
PA66, PC
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
11AWG
Shell Size
29
Insulation Color
Black
Description
