Elecbee T.SK105A.03 Universal LCD LED TV Controller Driver Board +7 Key button+1ch 6bit 30Pins LVDS Cable+1 Lamp Inverter+Speaker+EU Power Adapter

SKU: EB0041914

Favorites

Key Features

Datasheet

EB0041914

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

SK105A

USB Support

USB

Show Similar Products >

Description

Voltage: 12V

Precise details>>

Precise details:

T.RD8503.03 Firmware: Click here to open

T.V53.03 Manual: Click here to open

T.V53.03 Firmware: Click here to open

T.SK106A.03 Manual: Click here to open

T.SK106A.03 Firmware: Click here to open

New Version T.SK105A.03 Manual: Click here to open

New Version T.SK105A.03 Firmware: Click here to open

Note: Since the driver board model is updated frequently, the appearance and chip will be different, please refer to the actual received. If you mind this, please buy carefully.

Please note before buying:

1. This product is compatible with most models. Customers only need to confirm that the LCD screen is compatible with the following resolutions, without repeating the inquiry model. (Firmware burns the corresponding resolution)

2. This product needs to burn the firmware by yourself before it can be used. If you don't know how to burn the firmware, unfortunately, it is recommended not to buy. Thank you for your understanding.

3. This kit comes with a 1ch 6bit 30pins screen cable by default. If it is not compatible with your screen, please purchase a matching screen cable separately.

4. Be sure to use the correct power supply. If the current is too low/too high, it will fail to boot, or even burn out the chip and damage the motherboard.

5. Please pay attention to the choice of screen voltage 3.3V/5V/12V, and change the position of the jumper cap according to different voltages.

Description:

Model: T.V53.03 (Update from December 25, 2019)

Model: T.SK106A.03 (Update from September 1, 2020)

Update Model: T.SK105A.03 (Update from November, 2020) The specific model is mainly based on the received model, pay attention to burning the corresponding model firmware.

TV Format: Analog Signal

Support Language: Russian, English, Hindi, Simplified Chinese, Khmer, Vietnamese, Myanmar, French, German, Italian, Spanish.

Input Interface: PC / HDMI / TV / AV / USB multimedia playing

Power Adapter: DC 12V 3-5A

Screen interface: LVDS Single 6

Screen voltage: 3.3V / 5V / 12V (Jump cap)

Not only USB interface can be used to upgrade programs, but also can use to play video/music/photo, basically, formats are supported. You can also set a boot display pictures or LOGO and Mirror Enable.

Only supports the resolution of:

1920x1200

1920x1080

1680x1050

1680x945

1600X1200

1600x900

1400X1050

1440x900

1366x768

1280x1024

1280x854

1280x800

1280x768

1280x720

1024x768

1024x600

800x600

How to know if your panel suitable for this board?

Step 1: Find your LCD model's resolution (you can check the resolution from this link: )
Step 2: Find and write in the corresponding firmware.

Programming:

1. Put the firmware of "SKR8503_100.bin" in formatted USB flash disk(FAT32), then insert the USB disk and the 7KEY-Button to the board

2. After turn on the power, the light of the 7key button be Red then flash red faster.

IT KEEPS flashing and NEVER STOP. it's normal, just wait about 1 minute, it means upgrade has finished. then power off and pull off the u-disk. (Note that write programs do not power outages, crashing won't be able to use)

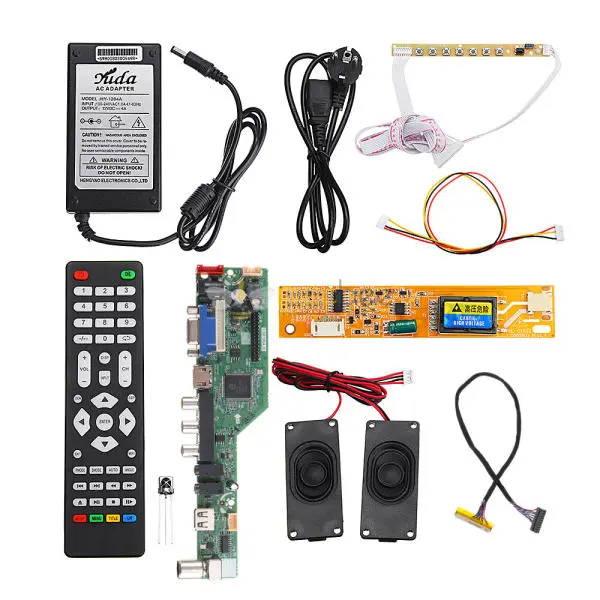

1 x Controller Board

1 x English Remote control

1 x IR

1 x 7key button

1 x 1ch 6bit 30pins lvds cable 250mm length

1 x 1pcs CCFL inverter with 3.5mm pin pitch

2 x 4ohm 3W Speaker

1 x EU 12V 4A Power Adapter

Note:

The IR & KEY definition is special and different between v29 v56 v59 and 3463A, pls notice and don't mix up.

This kit is just for signal interface is 2ch 8 bit 30 pins and without 4pcs ccfl inverter

If you are not sure, pls provide your lcd panel model number, so we can help you, thanks
