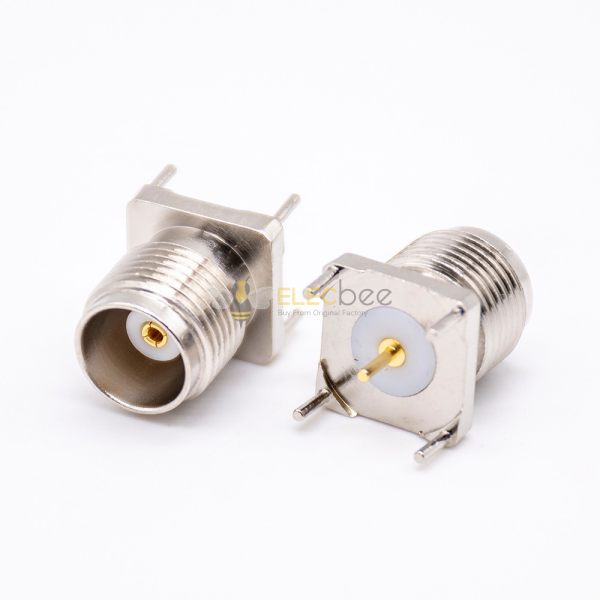

Elecbee TNC Connector Videos Straight Jack for PCB Mount

SKU: EB-002-0057
Favorites
Key Features
  • Pcb Mount,jack/female, Straight/180°,50Ω;
  • Thread Version of BNC used in Vibration-Intense application with high durability;
  • Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50 ohm impedance;
  • High Quality with 30 days 100% Money back, made according to MIL-C-39012 standard;;
  • From the OEM Original Factory, same quality with much better price.

Main Application of TNC Connectors:

Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS, Wireless Base Station, Microwave Comonents, Radar, Networks,Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation.


Show More
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Connector Series
TNC
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
