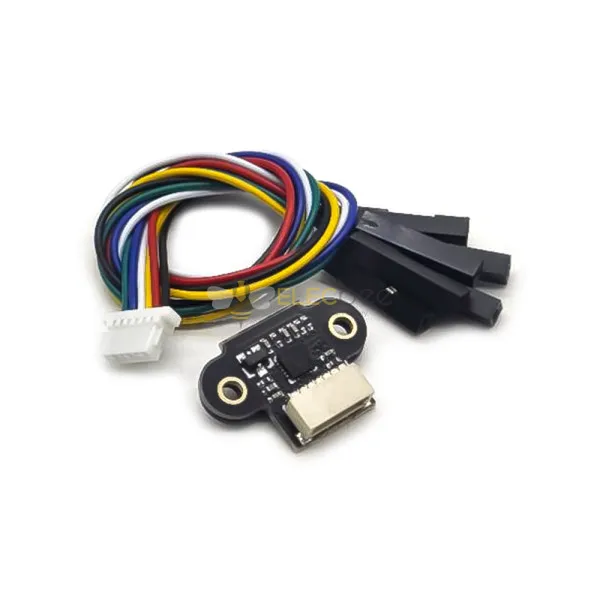

Elecbee TOF10120 Laser Range Sensor Module 10-180cm Distance Sensor RS232 Interface UART I2C IIC Output 3-5V

SKU: EB0043727

Favorites

Key Features

xa0

・940nm laser classified as class 1 under operation condition

by IEC 60825-1:2014-3rd edition

・Small ceramic package(20×13.2×2.0mm)

・Long range absolute range measurement up to 1.8m

within 5%xa0accuracy at indoor

・Reported range is independent of the target reflectance

・Operates in high infrared ambient light levels

・Advanced optical cross-talk compensation

・High speed ranging MAX 30ms

・Standard solder reflow compatible

・No additional optics

・Single power supply

・Txd interface for device control and data transfer

・High-speed AF

・Continuous AF for video

・User detection for Personal Computers/

・Laptops/Tablets

・Robotics (obstacle detection)

・White goods (hand detection in automatic

xa0

Specifications:

xa0

Ranging Rangexa0 100 - 1800mm

VCC: 3 - 5V DC

ICC_VDD: 35mA

Toprxa0 -xa0 20 + 70 °C

Tstgxa0 xa0-xa0xa040 +xa085 °C

Communication protocol

Bits per Second:9600

Data Bits : 8

Parity : None

Stop bits : 1

Flow Control : None

xa0

Cable:xa0

xa0

①GND Black

②VCC Red

③RXD Yellow

④TXD white

⑤SDA blue

⑥SCL purple

xa0

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

TOF10120

Show Similar Products >

Description

1 x TOF10120 Laser Range Sensor Module 10-180cm Distance Sensor

>>>Manual: Click here to open<<<

Overview:

TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-of-flight technology allows

performance independent of object reflectance.TOF10120's time-of-flight sensing technology is realized by Sharp's original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design.

1 x TOF10120 Laser Range Sensor Module 10-180cm Distance Sensor

TOF10120-Laser-Range-Sensor-Module-10-180cm-Distance-Sensor-RS232-Interface-UART-I2C-IIC-Output-3-5V-1566456
