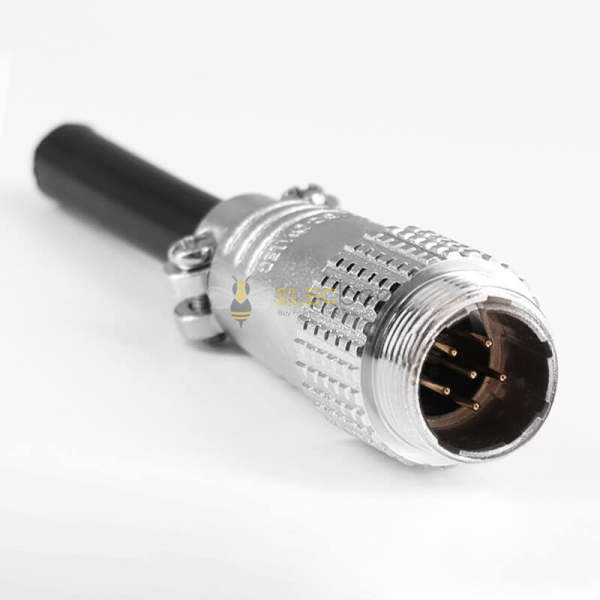

Elecbee TP12 6 Pin Connector Aviation Plug Male Round Solder Connector For Cable

SKU: EB-035-0022-H
Favorites
Key Features

Features:

  • TP12 Series Aviation Connector, Straight, Solder Cup, Male Plug, 6 Pin
  • Termination Type: Solder Type
  • Shell Material: Zinc Alloy (Chromeplate)
  • Contact Material: Copper Gold Plating
  • Coupling: Threaded Connection
  • Temperature range: -20 ℃ ~ +85 ℃
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Attribute
Value
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male Pin
Shell Finish
Tin Plated
Number of Positions
6 Pin
Operating Temperature
-20℃~+85℃
Rated Current
5A
Rated Voltage
125VAC
Connector Series
TP12
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PBT
Cable Diameter
8mm
Shell Size
12
Insulation Color
Black
