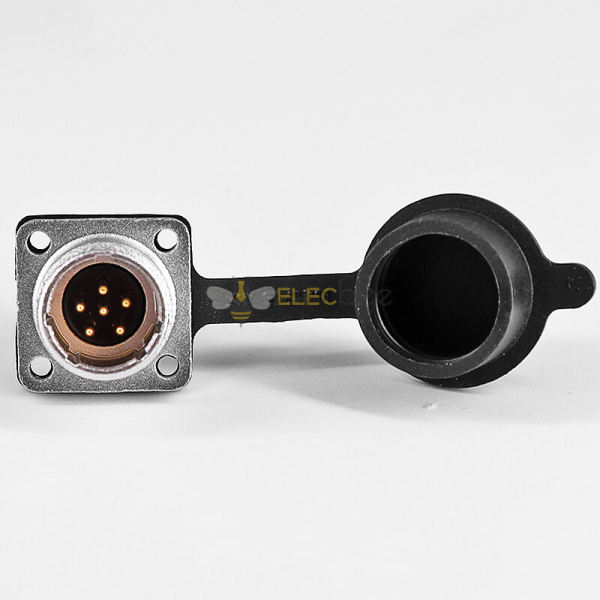

Elecbee TP12 6 Pin Male Socket 4 Hole Flange Connector Solder Cup For Cable With Rubber Dust Cap

SKU: EB-035-0023-H
Favorites
Key Features

Features:

  • TP12 Series Aviation Connector, Straight, Solder Cup, Male Socket, 4 Hole Flange, 6 Pin
  • Termination Type: Solder Type
  • Shell Material: Zinc Alloy (Chromeplate)
  • Contact Material: Copper Gold Plating
  • Coupling: Threaded Connection
  • Temperature range: -20 ℃ ~ +85 ℃
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Tin Plated
Number of Positions
6 Pin
Operating Temperature
-20℃~+85℃
Rated Current
5A
Rated Voltage
125VAC
Features
With Cover
Connector Series
TP12
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PBT
Cable Diameter
8mm
Shell Size
12
Insulation Color
Black

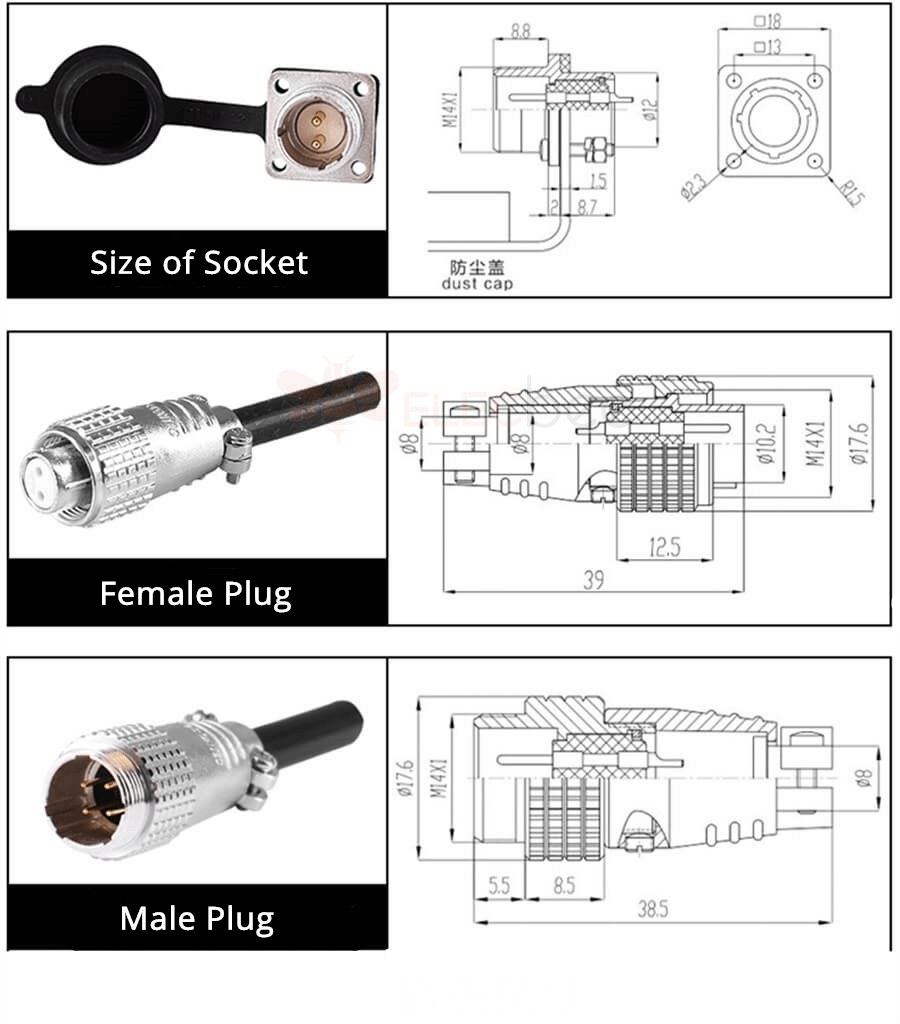

Description
