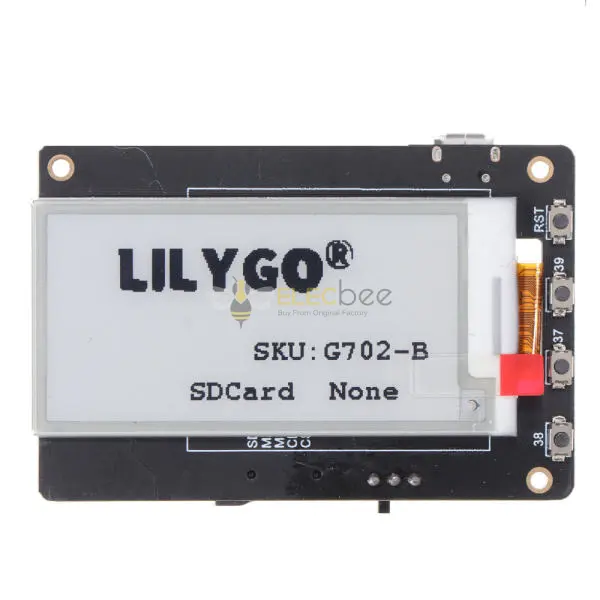

Elecbee TTGO T5 V2.4 Wifi And bluetooth Basis ESP-32 Esp32 1.54/2.13/2.9 E-ink Diaplay Module Screen Board 2.13 inch

SKU: EB0051052-2768

Favorites

Key Features

Screen features:

No backlight, keeps displaying last content for a long time even when power down

Ultra low power consumption, basically power is only required for refreshing

Comes with development resources and manual (examples for Arduin-esp32)

Specifications:

Operating voltage: 3.3V

Interface: 3-wire SPI, 4-wire SPI

Display color: Black, white

Grey level: 2

Full refresh time: 8s

Refresh power: 26.4mW(typ.)

Standby power: <0.017mW

Viewing angle: >170°

Product Details:

Part Number	Colors	Grey Level	Resolution	Display size (mm)	Outline Dimension (mm)	Full Refresh Time (s)	Partial Refresh Time (s)	Interface
1.54 inch E-ink (Product ID: 1287925):	black, white	2	200x200	27.60 × 27.60	31.8 × 37.3	2	0.3	SPI
2.13 inch E-ink	black, white	2	250x122	48.55 × 23.71	59.2 × 29.2	2	0.3	SPI
2.7 inch E-ink	black, white	2	264x176	57.29 × 38.19	70.4 × 45.8	6	N/A	SPI
2.9 inch E-ink	black, white	2	296x128	66.89 × 29.05	79.0 × 36.7	2	0.3	SPI

Test the firmware:

https://github.com/Xinyuan-LilyGO/LilyGO_T5_V24/tree/master/firmware

https://github.com/Xinyuan-LilyGO/LilyGo-T5-ink-series

Specifications
