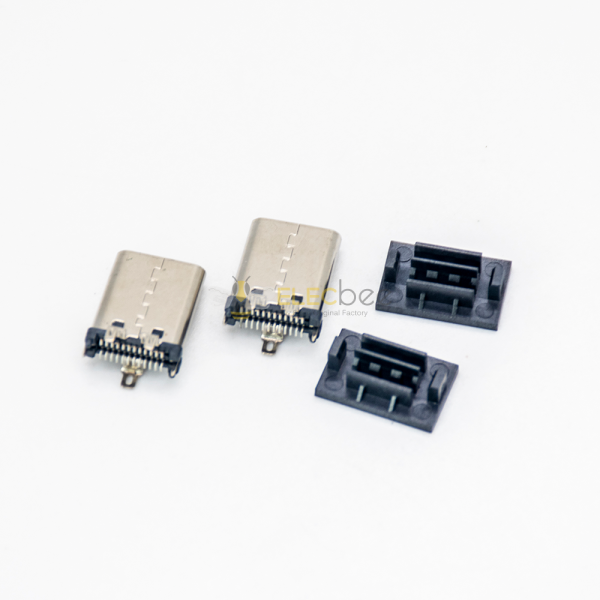

商品图

Elecbee Type C Vertical Type Male SMT Through Hole for PCB Mount

SKU: EB-500-5013
Favorites
Key Features

Features:

  • USB 3.0,Type C,Male/Plug,Straight/180°,SMT,DIP,Vertical Type,PCB Mount
  • Reversible plug and cable orientation for better user experience;
  • Smaller connector size saves space;
  • Easy and Quick usage;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • Industrial machinery
  • Technology devices
  • Hard Disk Drives
  • Flash Disk
  • Mobile Phone/Tablet
  • VR Camera
  • Charger
  • Car Media Player/Hub
Show More
Attribute
Value
Connector Type
Plug
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
PCB
Termination
Solder
Contact Type
Male Pin
Number of Positions
24 Pin
Operating Temperature
-30℃~+85℃
Ingress Protection
IP00
Rated Current
5A
Rated Voltage
5V
Specifications
USB 3.0
