Elecbee Ultrasonic Sensor Module Distance Measuring Meter Ranging Sensor 1cm-600cm Adjustable Relay Output with Probe and Display 12V/24V DC

SKU: EB0043830

Favorites

Key Features

xa0

1. The CB-001-V2 ultrasonic ranging three-in-one module is designed using non-contact test ultrasonic detection technology. The product can accurately detect the distance from a flatxa0object in the range of 1cm to 600cm, and can accurately measure people in the range of 1cm to 230cm.

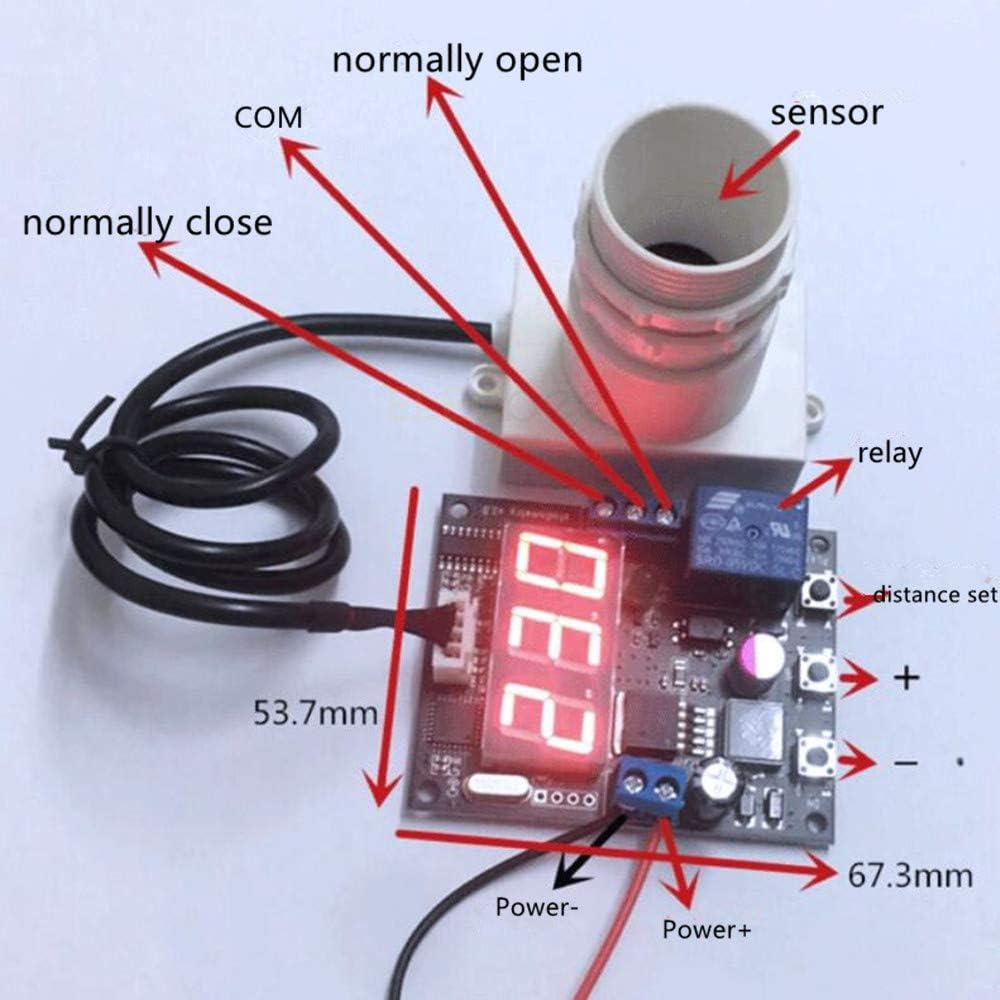

2. This product can match a variety of ultrasonic ranging modules with serial port output, can customize the actual practical measurement range (with digital tube display) and realize the relay normally open and closed dual output.

Specifications:
xa0

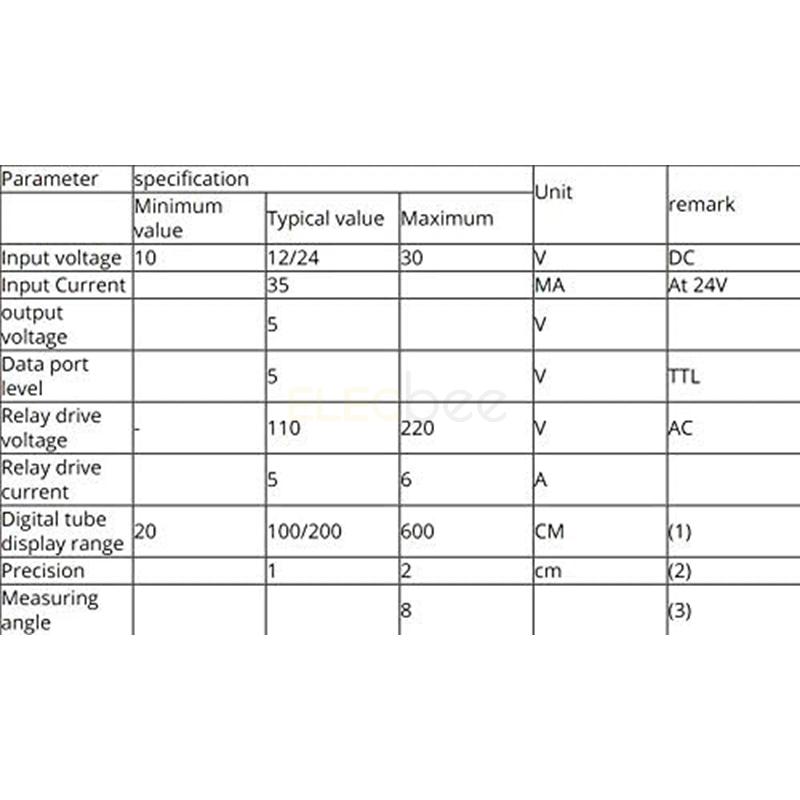

Parameter	specification			Unit xa0	remark
xa0	Minimum value	Typical value	Maximum	Unit xa0	remark
Input voltage	10	12/24	30	V	DC
Input Current	xa0	35	xa0	MA	At 24V
output voltage	xa0	5	xa0	V	xa0
Data port level	xa0	5	xa0	V	TTL
Relay drive voltage	-	110	220	V	AC
Relay drive current	xa0	5	6	A	xa0
Digital tube display range	20	100/200	600	CM	(1)
Precision	xa0	1	2	cm	(2)
Measuring angle	xa0	xa0	8	xa0	(3)

Remarks:

(1) Adjustable range is 22cm-600cm

(2) The farther the measurement distance is, the larger the error is, which basically conforms to the linear proportional relationship.

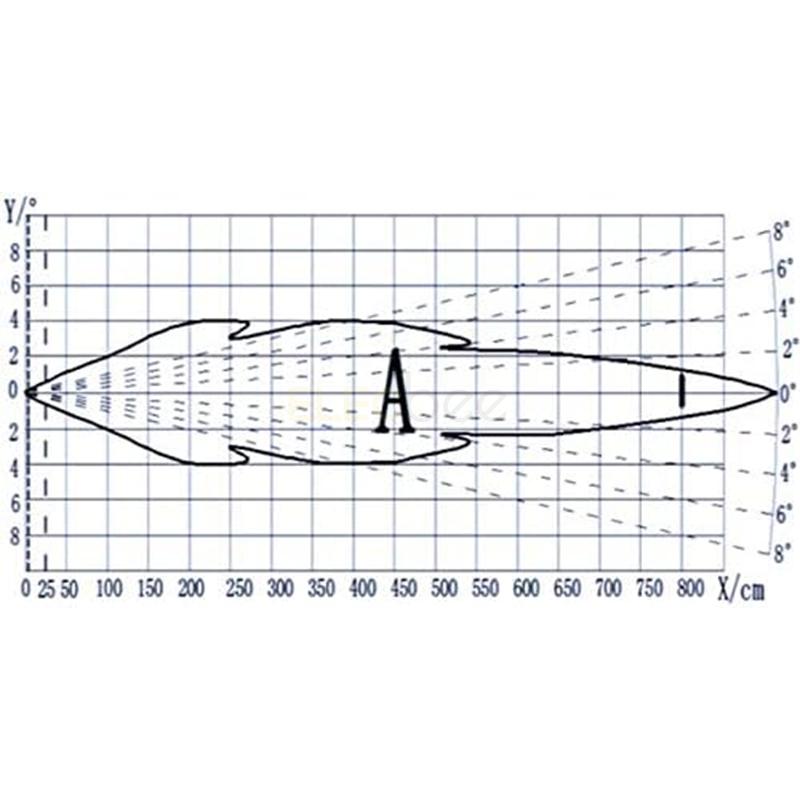

(3) Measuring angle characteristics such as the following wave speed map

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products >

Description

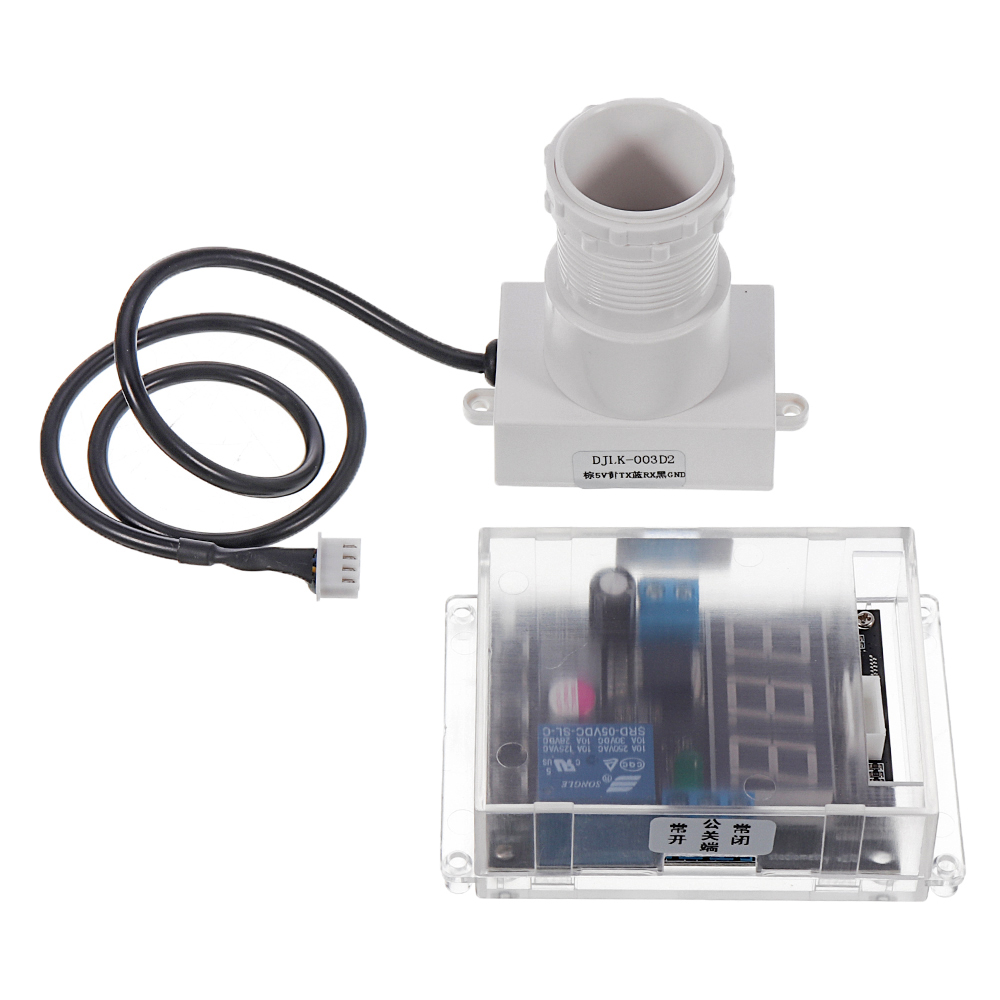

Package includes:

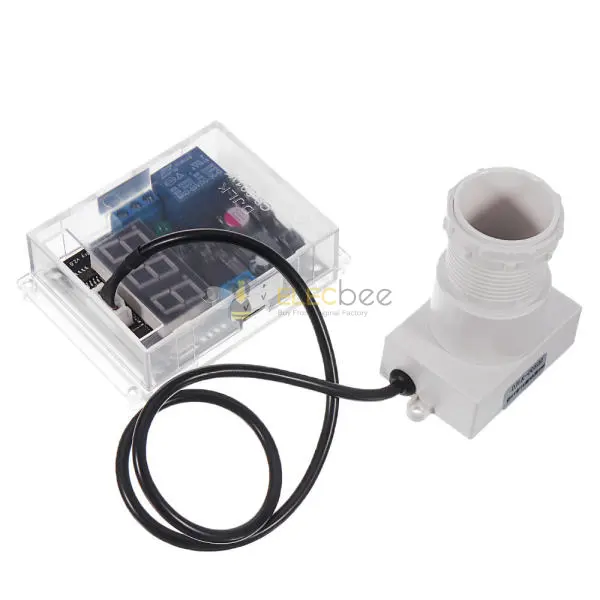

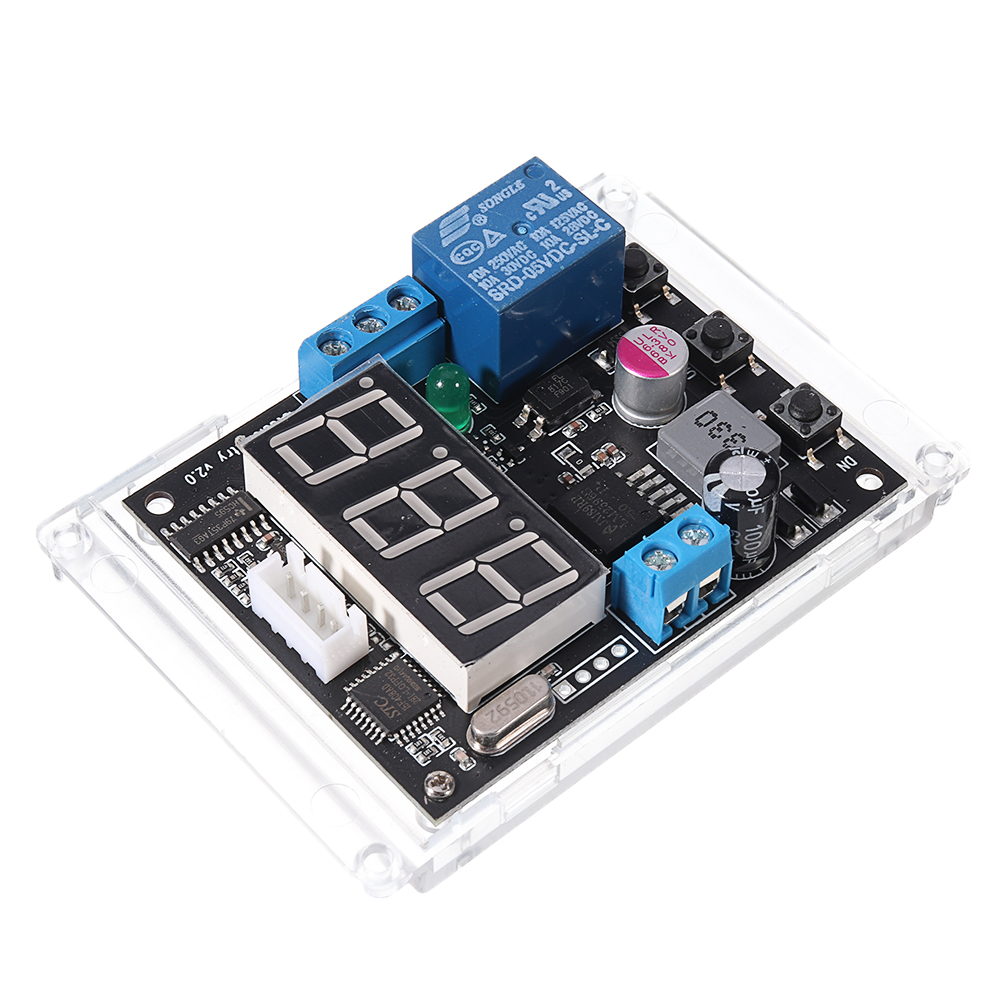

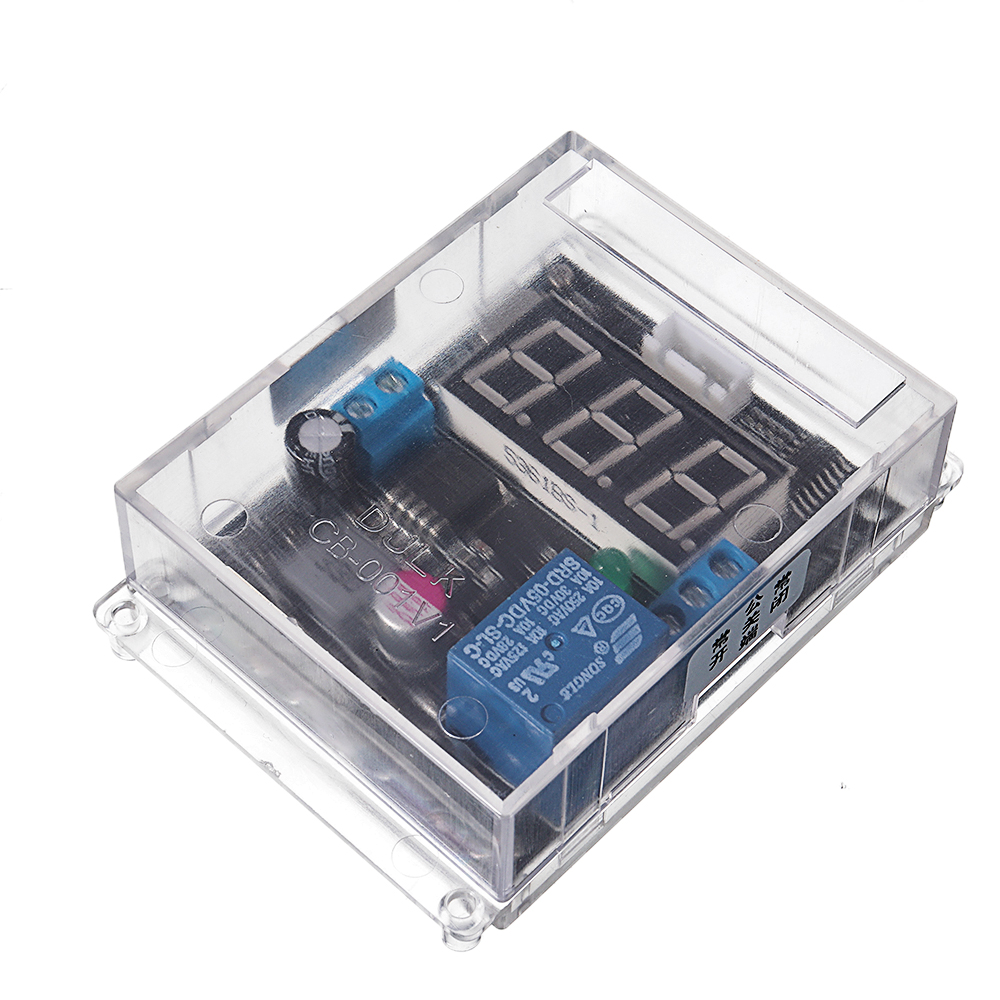

1 x 12V/24V DC Ultrasonic Sensor Module

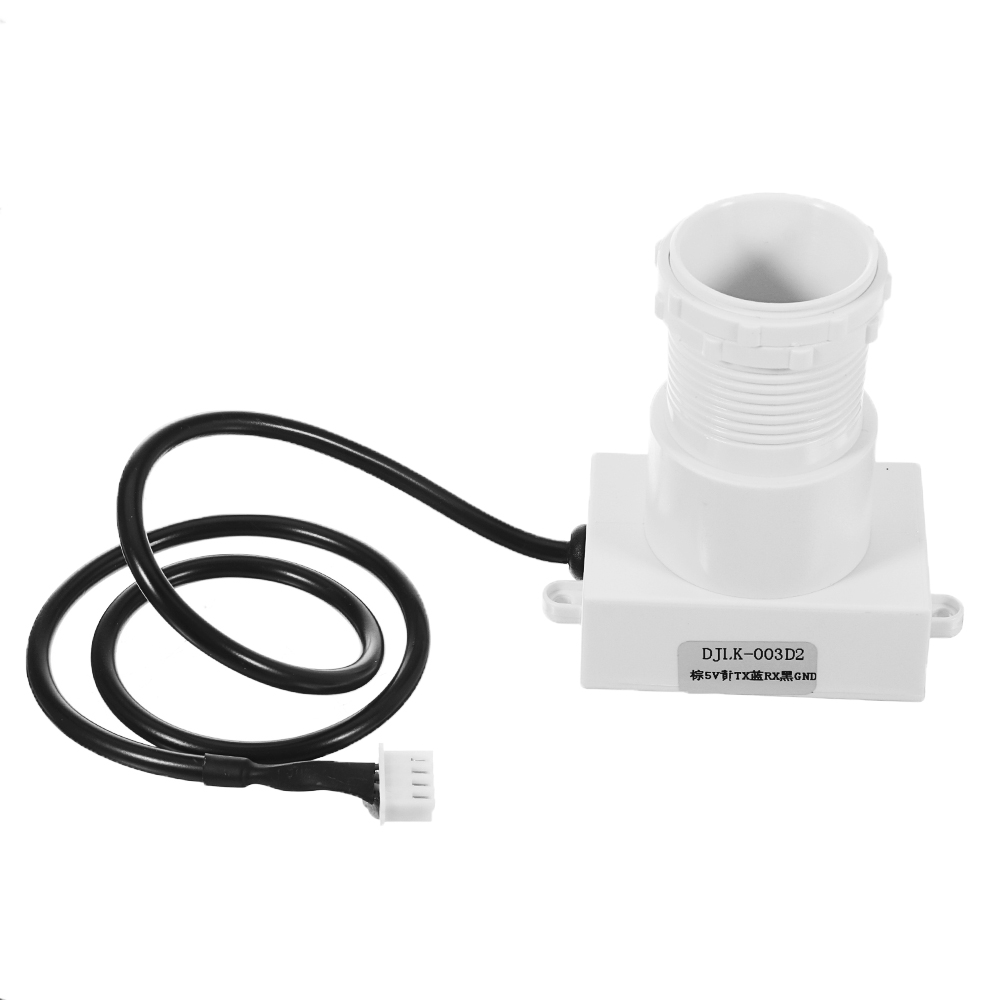

1 x Ultrasonic Sensor Probe

Ultrasonic-Sensor-Module-Distance-Measuring-Meter-Ranging-Sensor-1cm-600cm-Adjustable--Relay-Output--1658213
