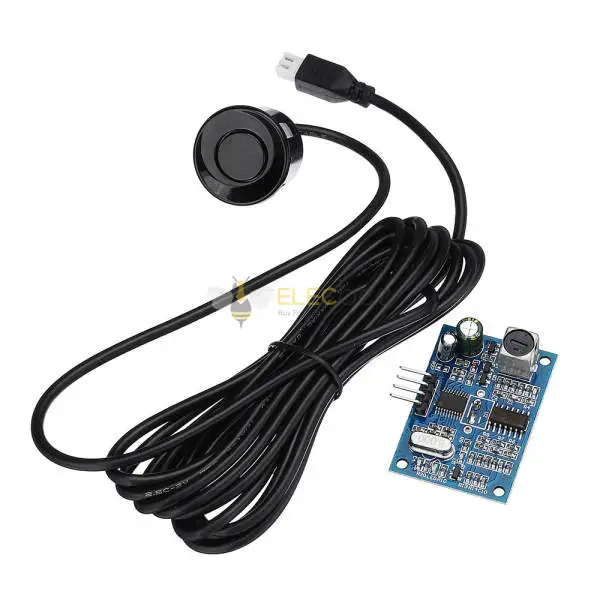

Elecbee Waterproof Ultrasonic Sensor Module Integrated Ranging Sensor Reversing Radar Measuring Distance

SKU: EB0043728

Favorites

Key Features

Product Features:

- Small size and easy to use;

- Low voltage and low power consumption;

- High measurement accuracy;

- Strong anti-interference;

- Integrated enclosed waterproof line probe for wet and harsh measurement applications.

ParameterS:

Working voltage: DC 5V

Static working current: 5mA

Working total current: 30mA

Transmission frequency: 40KHz

Maximum distance: 5M

Blind area: 25cm

Resolution: 0.5cm

Angle: <50°

Working temperature: -10 to 70 °C

Storage temperature: -20 to 80°C

Size: 41x28.5mm
Wire length: 2.5m

Application:

1 horizontal ranging

2 obstacle avoidance, automatic control

3 objects are close, there is awareness

4 Traffic control

5 Security, industrial control

6 Artificial intelligence, teaching and research

Basic working Principle:

(1) Using IO port TRIG to trigger ranging, giving a high level signal of at least 10us;

(2) The module automatically sends eight 40khz square waves to automatically detect whether there is a signal return;

(3) There is a signal return, and a high level is output through the IO port ECH0, and the high level duration is the time from the transmission to the return of the ultrasonic wave. Test distance = (high time * sound speed (340M / S)) / 2

Specifications

Show Similar Products >

Attribute

Value

Model

DESCRIPTIONIMAGE0

Show Similar Products >

Description

This module is easy to use. A control port sends a high level above 10US, so you can wait for the high level output at the receiving port. You can turn on the timer when there is an output. When this port goes low, you can read it. The value of the timer, at this time is the time of the distance measurement, in order to calculate the distance. Such continuous cycle measurement, that is, you can reach the value of your mobile measurement.

Package included:

1 x Ranging Sensor
