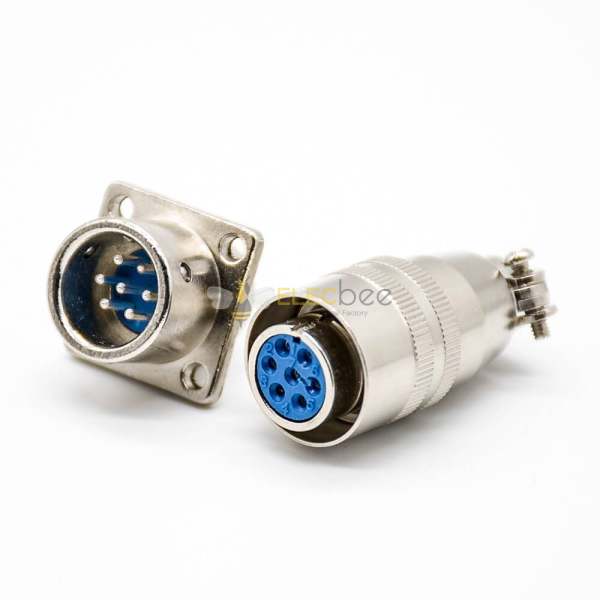

Elecbee XS16 Aviation connector 7pin Male Female Push-Pull Circular Quick Connector

SKU: EB-404-0121
Favorites
Key Features

Features:

  • XS16,Female Plug&Male Socket,7 Pin,Panel Mount,Solder Type,4 Hole Flange
Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
7 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
125VAC
Connector Series
XS16
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Nickel Plated
Insulating Materials
PBT
Cable Diameter
7.5mm~8.3mm
Insulation Color
Blue
Description
