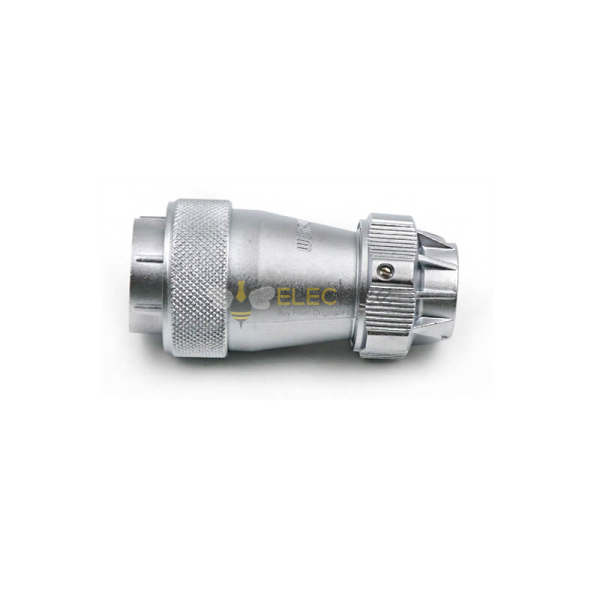

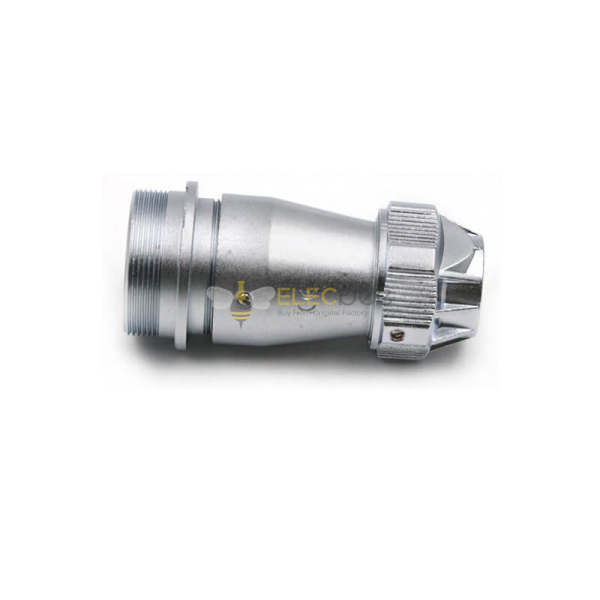

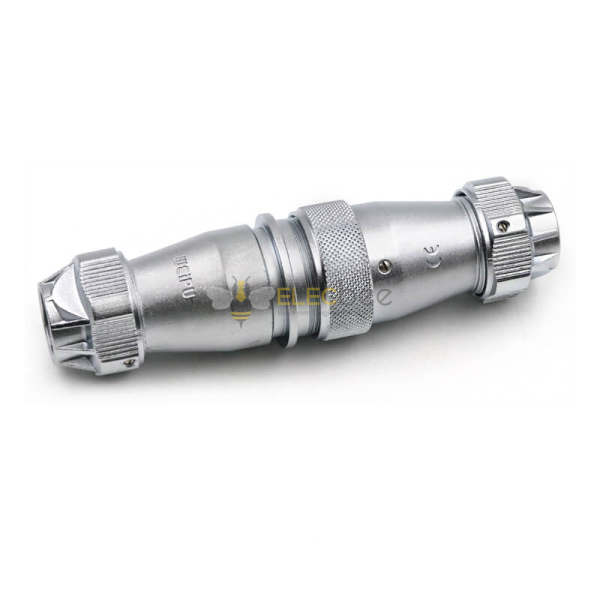

Elecbee 2pin Aviation Waterproof Male Plug and Female Socket WF28 TE+ZE Docking Straight Connector

SKU: EB-WF28J2TE-WF28K2ZE
お気に入り
主要特徴

Features:

  • Specification: WF28 Connector, Male  and  female , Solder Cup, for  cable, 2 Pin,Straight
  • Shell Material: Zinc alloy with chrome plating
  • Coupling: Thread
  • Termination Type:  Solder
  • Insulator: High-temperature PPS
  • Temperature Range: -40°C~85°C
  • Contact material: Brass with gold plating
  • Hole Diameter: 28mm
  • Number of Contacts: 2/3/4/7/8/9/10/12/16/17/20/24/26Pin
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
もっと見る
属性
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
2 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
50A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF28
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
7AWG
Shell Size
28
Insulation Color
Black
