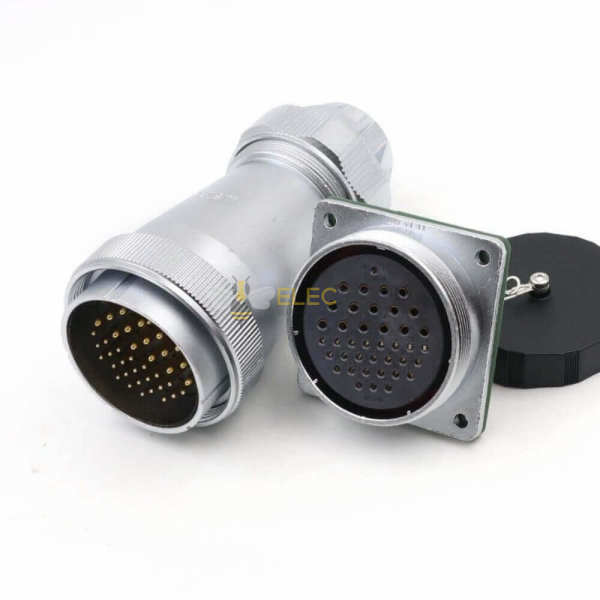

40pin TE+Z Straight Connector WF55 series Male Plug and Female Jack Connector Aviation plug Socket

Description

Feature

Female and male, Straight, Waterproof, Sloder up, 40pin, 4-hole flange;
Termination Type: sloder
Easy quick connect and disconnect coupling;
Options: 4/7/40/53/61 pins
Hole Diameter: 55mm
From the OEM Original Factory, same quality with much better price.

Main Application of WF55 Connectors:

Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.

Electrical Characteristics

Working Voltage: 500 V rms
insulator resistance:2000 ohm
test Voltage:1500 V rms

Mechanical Characteristics

Coupling: threaded
Mating Durability: ≧500 cycles

Environmental Characteristics

Temperature Range: -40°C~85°C
IP65

Materials

Part Material Finish
Body
Zinc alloy chrome plating
silver
Center Contact Pin gold-plated brass gold

Insulator PPS black
