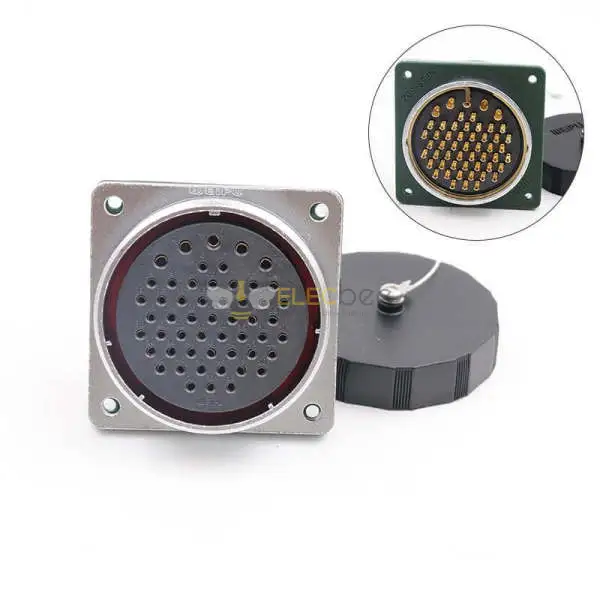

53pin Flange Socket and Straight Plug WF55 series TI+Z Male plug and Female Receptacle

Description

Feature

Female socket, male plug , Straight, Waterproof, Sloder up, 53pin, 4-hole flange;
Termination Type: sloder
Easy quick connect and disconnect coupling;
Options: 4/7/40/53/61 pins
Hole Diameter: 55mm
From the OEM Original Factory, same quality with much better price.

Main Application of WF55 Connectors:

Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.

Electrical Characteristics

Working Voltage: 500 V rms
insulator resistance:2000 ohm
test Voltage:1500 V rms

Mechanical Characteristics

Coupling: threaded
Mating Durability: ≧500 cycles

Environmental Characteristics

Temperature Range: -40°C~85°C
IP65

Part Material Finished
Body
Zinc alloy chrome plating
silver
Center Contact Pin gold-plated brass gold

Insulator PPS black

Shopping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

20%

5 stars

60%

P****o

Perfect for industrial automation setup. The 53pin WF55 connector is solidly built with gold-plated brass contacts, and the IP65 rating ensures reliable waterproof performance. Easy to solder and locks securely with threaded coupling.

S****n

Good value compared to OEM prices. Zinc alloy body feels durable and the chrome plating resists corrosion. Used in a marine navigation project and it’s holding up well under harsh conditions.

A****l

Exactly as described. The 55mm flange fits perfectly into our machinery housing. Soldering was clean thanks to the well-spaced pins. Withstands repeated mating cycles without signal loss.

D****o

Works fine but took time to solder all 53 pins. Would’ve preferred pre-wired versions. Good insulation and PPS material handles heat well. Just needs more careful handling during assembly.

S****r

Used in an aviation telemetry system—performs flawlessly. Handles 500V RMS with no issues, and the -40°C to 85°C range makes it ideal for extreme environments.
