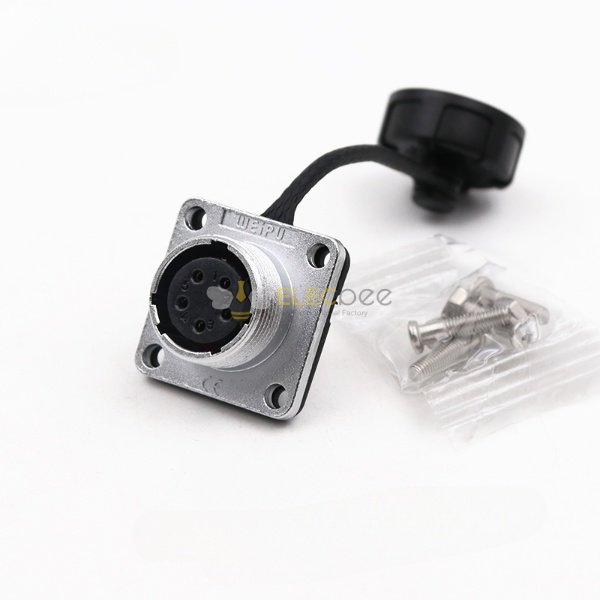

Elecbee 5pin Female Jack WF16 Square Flange Mount Aviation Waterproof Connector Z Jack

SKU: EB-WF16K5Z
즐겨찾기
핵심 특징

Features:

  • Model Number: WF16
  • Shell Material: Zinc alloy
  • Coupling: Thread
  • Termination Type:  Solder
  • Insulator: High-temperature PPS
  • Temperature Range: -40°C~85°C
  • Contact material: Brass with gold plating
  • Hole Diameter: 16mm
  • Number of Contacts: 2/3/4/5/7/9/10Pin
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
더 보기
속성
Connector Type
Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Female Pin
Shell Finish
Chrome Plated
Number of Positions
5 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
16
Insulation Color
Black
