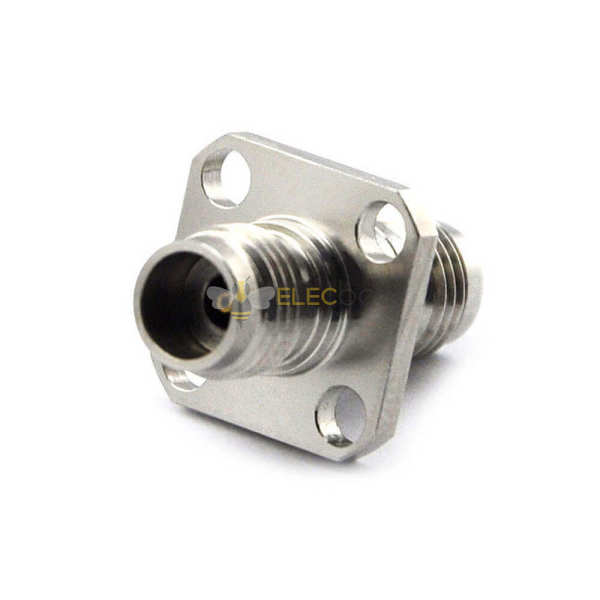

Elecbee 1.85-KFKS 1.85Mm Female To 1.85Mm Female 4-Hole Flange Dc-67Ghz Precision RF Connector

Features:

• 1.85mm Connector, 1.85 female to 1.85 female, Straight, PCB mount, 4-Hole Flange, Stainless Steel,High frequency rf coax connector;
• Operation from DC to 67 GHz
• Impedance: 50 Ω
• Compatible with 2.4mm Connector Series
• Dielectric: Air
• Ruggedized Construction for Repeatability and Reliability
• Low VSWR:

       DC to 27.0 GHz …........1.10:1 max

       27.0 to 40.0 GHz ……...1.15:1 max

       40.0 to 50.0 GHz ……...1.18:1 max

       50.0 to 67.0 GHz ……...1.25:1 max

• Outer conductor diameter: 1.85 mm
• Interface Standards: IEEE 287-2007

Appliance:

• Mil-Aero
• Telecommunication
• RFID
• Antennas
• Test and measurement
• Radar systems
