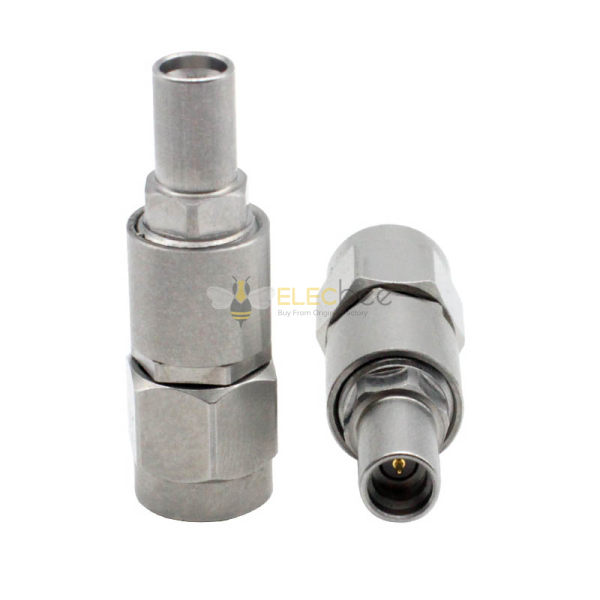

Elecbee 2.92MM Male Plug to SMP Male Straight Stainless Steel 40GHZ Adapter High Performance

SKU: EB-DRF-0158-C
Favorites
Key Features
  • High-performance 40GHz adapter for reliable signal transfer.
  • Durable stainless steel construction for long-lasting use.
  • Precision 2.92mm male to SMP male straight connector design.
  • 75Ω impedance ensures optimal signal integrity.
  • Compression-type RG11 cable connector for secure connections.
Show More
Attribute
Value
Mounting Type
Cable Type
Shell Finish
Nickel Plated
1st Contact Type
Male Pin
2nd Contact Type
Male Pin
Frequency Max
40 GHz
Shell Material
Stainless steel
Conversion Series
Different Series
Convert From(Adapter 1)
2.92mm
1st Connector Fastening Type
Threaded
Convert To(Adapter 2)
SMP
2nd Connector Fastening Type
Threaded
Adapter Style
Straight
Description

Electrical:
  • lmpedance: 50Ω
  • Frequency: DC-40GHz
  • VSWR: ≤1.25
  • Dielectric withstanding voltage: 750v(rms)
  • Center contar resistance /2.92mm: ≤3MΩ
  • Outer contart resistance/2.92mm: ≤2MΩ
  • Center contar resistance /SMP: ≤6MΩ
  • Outer contart resistance/SMP: ≤2MΩ
  • Insulation resistance: ≥1000MΩ

Environmental &Mechanical:
  • Temperture range: -45 ~+165°
  • Rohs Compliant: RoHS
  • Durability: 500cycles

Material and Plating:
  • Inner Contact: beryllium-copper, gold plated
  • Outer Contact: Stainless Steel,Passivated
  • Insulators: PEI

Typical Use Cases Include:
• 5G mmWave Networks and Communications Infrastructure
• High-frequency, small cell-based wireless access points
• MIMO ultra-high-speed outdoor backhaul fixed and moving wireless access points
• Test and measurement instrumentation
• High-speed, Mil-Aero, SATCOM, and instrumentation applications
