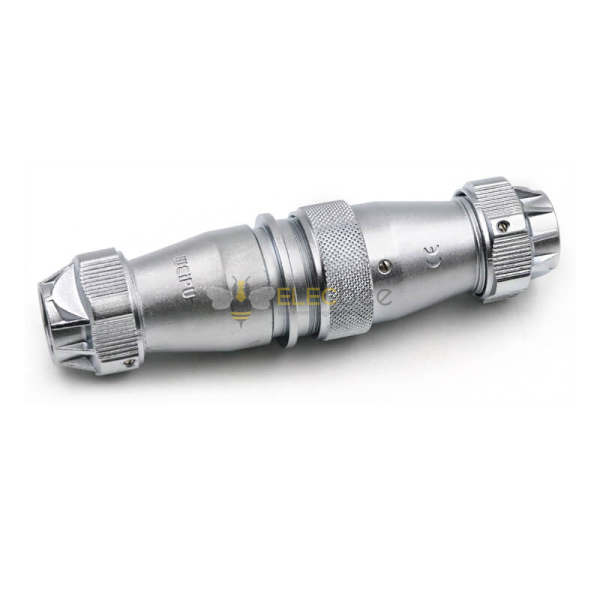

商品图

Elecbee Male Plug and Female Jack Connector 3pin Docking Straight TE+ZE WF28 Aviation Waterproof Connector

SKU: EB-WF28J3TE-WF28K3ZE
收藏
主要特点

Features:

  • Specification: WF28 Connector, Male  and  female , Solder Cup, for  cable, 3Pin,Straight
  • Shell Material: Zinc alloy with chrome plating
  • Coupling: Thread
  • Termination Type:  Solder
  • Insulator: High-temperature PPS
  • Temperature Range: -40°C~85°C
  • Contact material: Brass with gold plating
  • Hole Diameter: 28mm
  • Number of Contacts: 2/3/4/7/8/9/10/12/16/17/20/24/26Pin
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
展开
属性
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
3 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
50A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF28
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
7AWG
Shell Size
28
Insulation Color
Black
描述

配送指南
运费与发货
发货周期
现货商品预计3天内发货。
Elecbee每天下午5点发货一次,周日除外。
发货后,预计送达时间取决于您选择的承运商。
DHL快递:3-7个工作日
DHL电商:12-22个工作日
FedEx国际优先快递:3-7个工作日
EMS:10-15个工作日
挂号航空邮件:15-30个工作日
运费标准您订单的运费可在购物车中查看。
发货选项我们提供DHL、FedEx、EMS、顺丰速运和挂号航空邮件国际配送服务。
发货追踪订单发货后,我们将通过邮件通知您追踪号码。您可以使用“我的订单追踪”功能追踪您的订单。
退货与保修退货通常在发货日期30天内完成退货申请。请联系客服获得退货授权。商品须未使用且保持原包装。运费由客户承担。
保修所有Elecbee购买商品均享有30天无理由退款政策,以及1年制造缺陷保修。
此保修不适用于因客户组装不当、未按说明操作、产品改装、疏忽或不当操作而造成的缺陷。
下单与订购如何订购Elecbee接受在线订单。
加入购物车 > 结账 > 提交订单 > 完成支付 > 发货
支付支持 PayPal、信用卡(包括 Visa、MasterCard、美国运通卡)以及银行转账。

为您推荐

评论
ELECBEE
所有评论均来自已验证的购买者
1 星
0%
2 星
0%
3 星
20%
4 星
20%
5 星
60%
a****h
Perfect for my marine project! The zinc alloy shell feels rugged and the waterproof seal works great in damp conditions. Easy to solder thanks to the cup terminals.
A****i
Solid build quality and the chrome plating resists corrosion well. Thread coupling is secure, though a bit tight at first. Good 3-pin solution for outdoor use.
c****s
Exactly as described. The high-temp PPS insulator gives me confidence in engine bay installations. Soldering was smooth with the solder cups.
b****s
Works fine but took time to assemble. Need to be careful when threading the connectors. Good for waterproof needs once properly installed.
A****u
Used in a drone build—lightweight yet durable. The straight 3-pin design fits perfectly. Impressed by the sealing performance.
