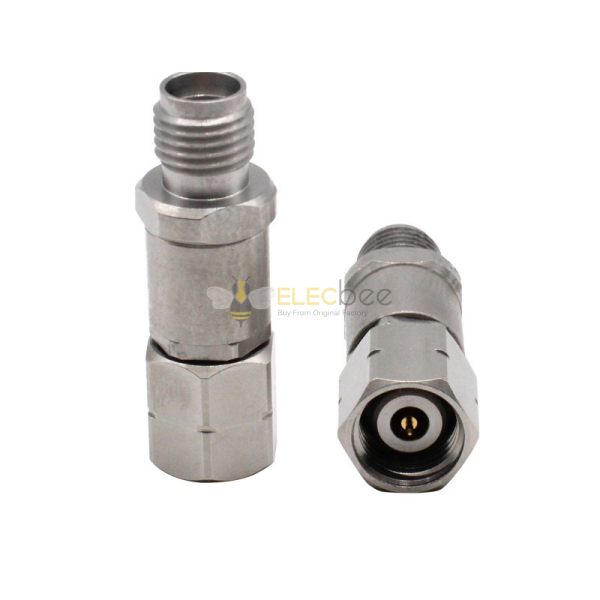

商品图

Elecbee 2.4mm Male Plug to 2.92mm Female Jack Stainless Steel Connector 40GHz Coaxial Adapter

SKU: EB-DRF-0120-C
Favorites
Key Features
  • High-frequency 40GHz coaxial adapter for reliable signal transmission.
  • Durable stainless steel construction resists corrosion and wear.
  • IP67 rated for dust and water resistance in harsh environments.
  • Secure 2.4mm male to 2.92mm female connection with stable performance.
  • Panel mount straight receptacle, ideal for industrial applications.
Show More
Attribute
Value
Mounting Type
Cable Type
Shell Finish
Nickel Plated
1st Contact Type
Male Pin
2nd Contact Type
Female Pin
Frequency Max
40 GHz
Shell Material
Stainless steel
Conversion Series
Different Series
Convert From(Adapter 1)
2.4mm
1st Connector Fastening Type
Threaded
Convert To(Adapter 2)
2.92mm
2st Connector Fastening Type
Threaded
Adapter Style
Straight
Description

Electrical:
  • lmpedance: 50Ω
  • Frequency: DC-40GHz
  • VSWR: ≤1.2
  • Dielectric withstanding voltage: 750v(rms)
  • Center contar resistance /2.92mm: ≤3MΩ
  • Outer contart resistance/2.92mm: ≤2MΩ
  • Center contar resistance /2.4mm: ≤4MΩ
  • Outer contart resistance/2.4mm: ≤2.5MΩ
  • Insulation resistance: ≥1000MΩ

Environmental &Mechanica:
  • Temperture range: -45 ~+165°
  • Rohs Compliant: RoHS
  • Durability: 500cycles

Material and Plating:
  • Inner Contact: beryllium-copper, gold plated
  • Outer Contact: Stainless Steel,Passivated
  • Insulators: PEI

Typical Use Cases Include:
• 5G mmWave Networks and Communications Infrastructure
• High-frequency, small cell-based wireless access points
• MIMO ultra-high-speed outdoor backhaul fixed and moving wireless access points
• Test and measurement instrumentation
• High-speed, Mil-Aero, SATCOM, and instrumentation applications
