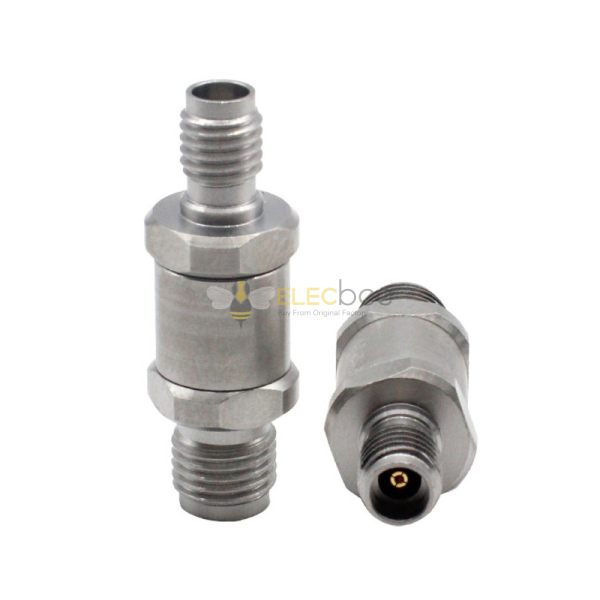

Elecbee 2.92MM Female to SSMA Female Coaxial Adapter Stainless Steel 40GHZ Tester Connector

SKU: EB-DRF-0146-C
Favorites
Key Features
  • High-frequency 40GHz performance for reliable signal testing.
  • Durable stainless steel construction for long-lasting use.
  • Precision 2.92mm female to SSMA female coaxial connection.
  • 75Ω impedance ensures optimal signal transmission.
  • Compression-type RG11 connector for secure, stable fit.
Show More
Attribute
Value
Mounting Type
Cable Type
Shell Finish
Nickel Plated
1st Contact Type
Female Pin
2nd Contact Type
Female Pin
Frequency Max
40 GHz
Shell Material
Stainless steel
Conversion Series
Different Series
Convert From(Adapter 1)
SSMA
1st Connector Fastening Type
Threaded
Convert To(Adapter 2)
2.92mm
2st Connector Fastening Type
Threaded
Adapter Style
Straight
Description

Electrical:
  • lmpedance: 50Ω
  • Frequency: DC-40GHz
  • VSWR: ≤1.2
  • Dielectric withstanding voltage: 750v(rms)
  • Center contar resistance /2.92mm: ≤3MΩ
  • Outer contart resistance/2.92mm: ≤2MΩ
  • Center contar resistance /SSMA: ≤4MΩ
  • Outer contart resistance/SSMA: ≤2.5MΩ
  • Insulation resistance: ≥1000MΩ

Environmental &Mechanical:
  • Temperture range: -45 ~+165°
  • Rohs Compliant: RoHS
  • Durability: 500cycles

Material and Plating:
  • Inner Contact: beryllium-copper, gold plated
  • Outer Contact: Stainless Steel,Passivated
  • Insulators: PEI

Typical Use Cases Include:
• 5G mmWave Networks and Communications Infrastructure
• High-frequency, small cell-based wireless access points
• MIMO ultra-high-speed outdoor backhaul fixed and moving wireless access points
• Test and measurement instrumentation
• High-speed, Mil-Aero, SATCOM, and instrumentation applications
