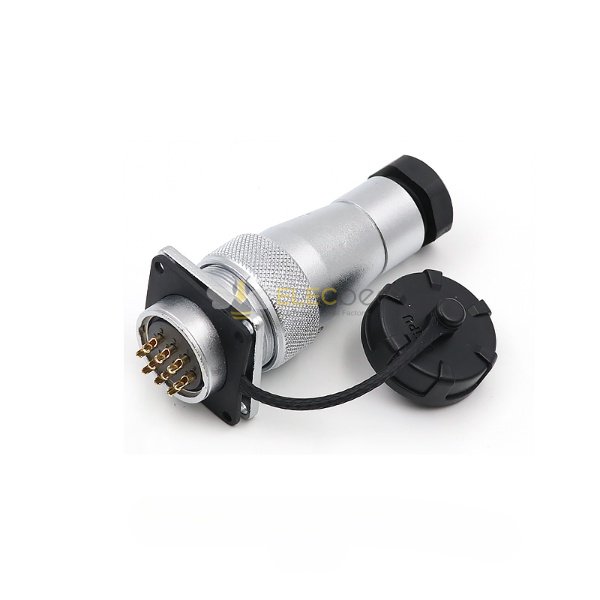

Elecbee Male Plug and Female Jack Connector 10pin Straight TA/Z WF24 Aviation Waterproof Connector

SKU: EB-WF24J10TA-WF24K10Z
Favorites
Key Features

Features:

  • Model Number: WF24
  • Shell Material: Zinc alloy with chrome plating
  • Coupling: Thread
  • Termination Type:  Solder
  • Insulator: High-temperature PPS
  • Temperature Range: -40°C~85°C
  • Contact material: Brass with gold plating
  • Hole Diameter: 24mm
  • Number of Contacts: 2/3/4/9/10/12/19Pin
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
10 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP65
Rated Current
10A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF24
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
14AWG
Shell Size
24
Insulation Color
Black
