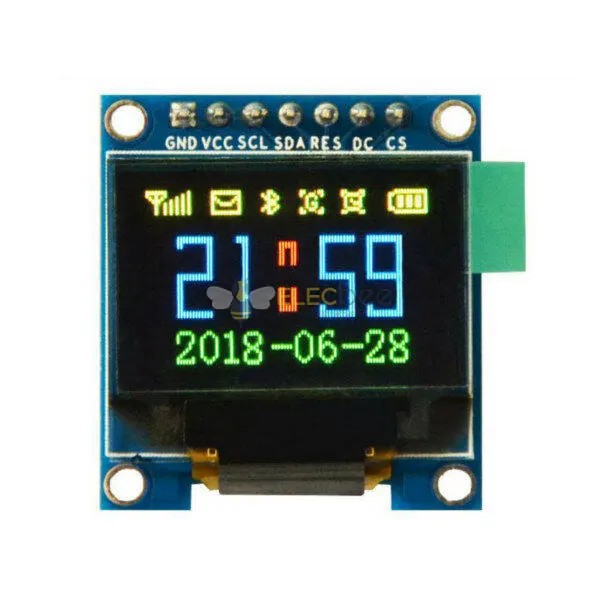

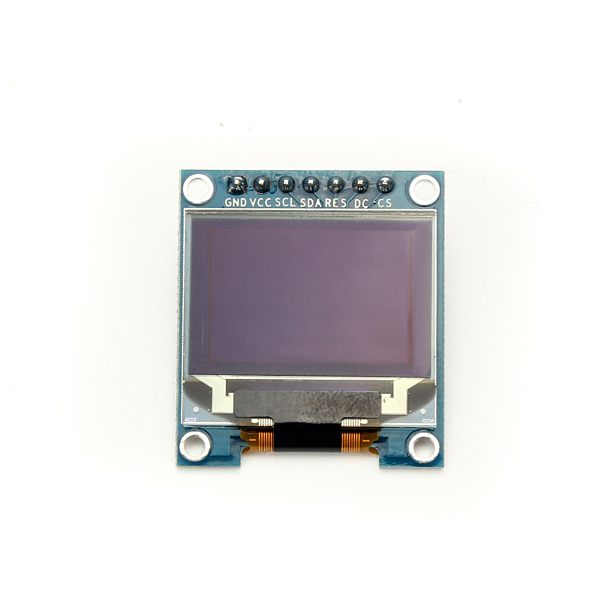

Elecbee 0.95 Inch 7pin Full Color 65K Color SSD1331 SPI OLED Display

SKU: EB0050356
Favorites
Key Features


Size: 0.95 inch
Resolution: 96*64
Drive IC: SSD1331
Color: 65536 color
Interface: SPI interface
PIN NO.: 7Pin
Voltage: 3.3V - 5V

Pin description:

GND: Power ground
VCC: 2.8-5.5V power supply
D0: CLK clock
D1: MOSI data
RST: Reset
DC: Data / command
CS: Chip-select signal

Show More
Attribute
Value
Model
SSD1331
Description
File download: Click to open



1 x 0.95 Inch 7pin OLED
