Elecbee MMDVM Hotspot Support P25 DMR YSF + Raspberry Pi Zero Board + OLED Display + 8G TFT Card + Antenna + Acrylic Case Kit

SKU: EB0049524
Favorites
Key Features

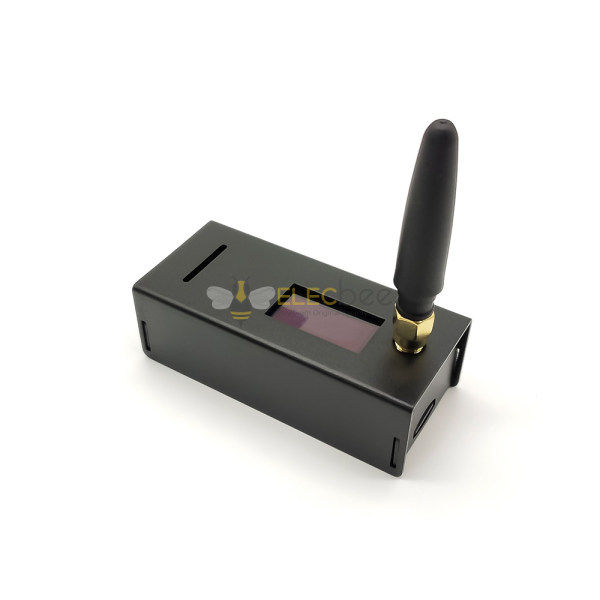

Pocket size aluminum enclosure
High performance 32-bit ARM processor
Fully tested
Supports DMR, P-25, D-Star and System Fusion
Onboard LEDs to show status (Tx, Rx, PTT, Mode)
Up to 10mW RF power
SMA antenna connector, UHF antenna included
Mounts cleanly on all current Raspberry Pi's including the Pi Zero
The firmware is pre-loaded and is easily upgraded via software.(Please do not upgrade the firmware by yourself)
Open source 3D printable case available
Support and tested with PI-STAR
UHF420-450MHz ,
VHF 144-146MHZ
Test ID 460xxxx, test frequency 439.600MHZ, test mode DMR, test WIFI: TZB/13902982913


Show More
Attribute
Value
MCU/SoC Model
MMDVM Hotspot Support
CPU Architecture
TIONIMAGE0
Wi‑Fi Standard
Wi-Fi + Bluetooth
Memory
Raspberry Pi OS/Linux
Debug Interface
USB
Power Protection
USB 5V
Platform & Ecosystem
802.11B/G/N
Description
Product Description:

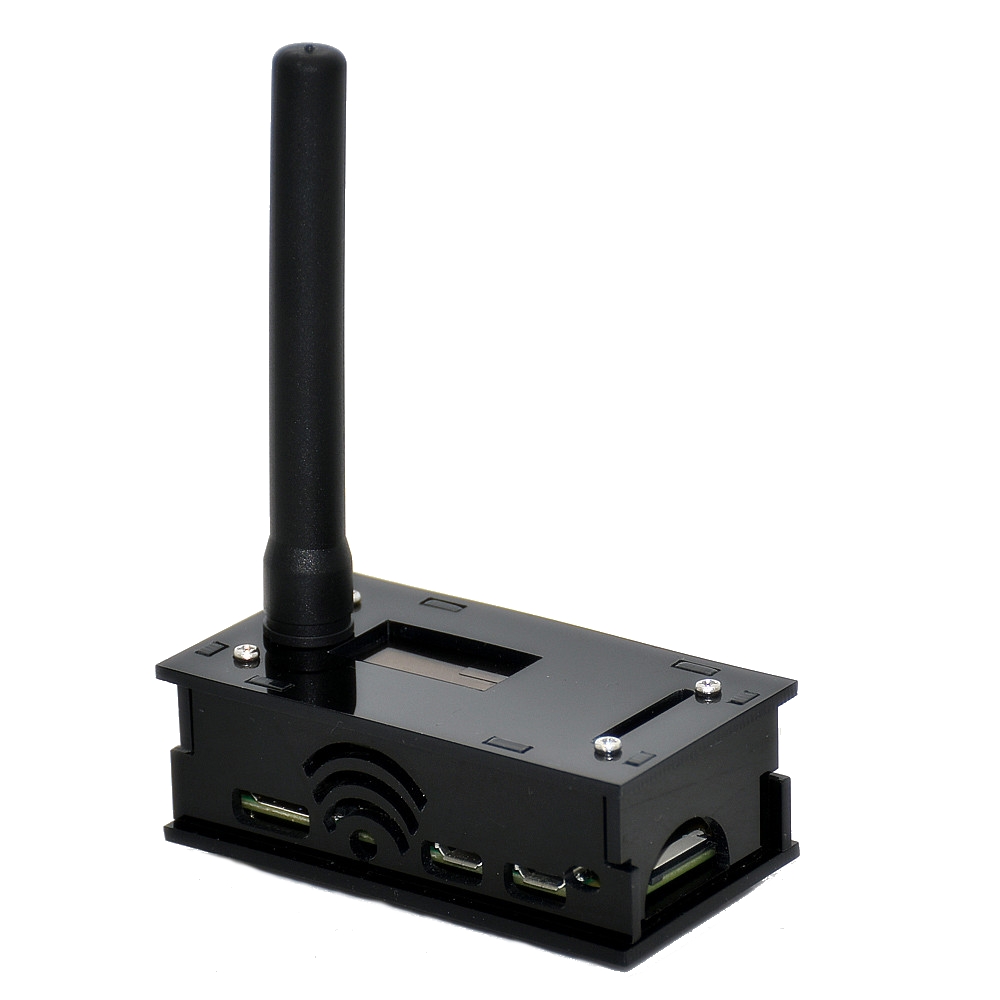

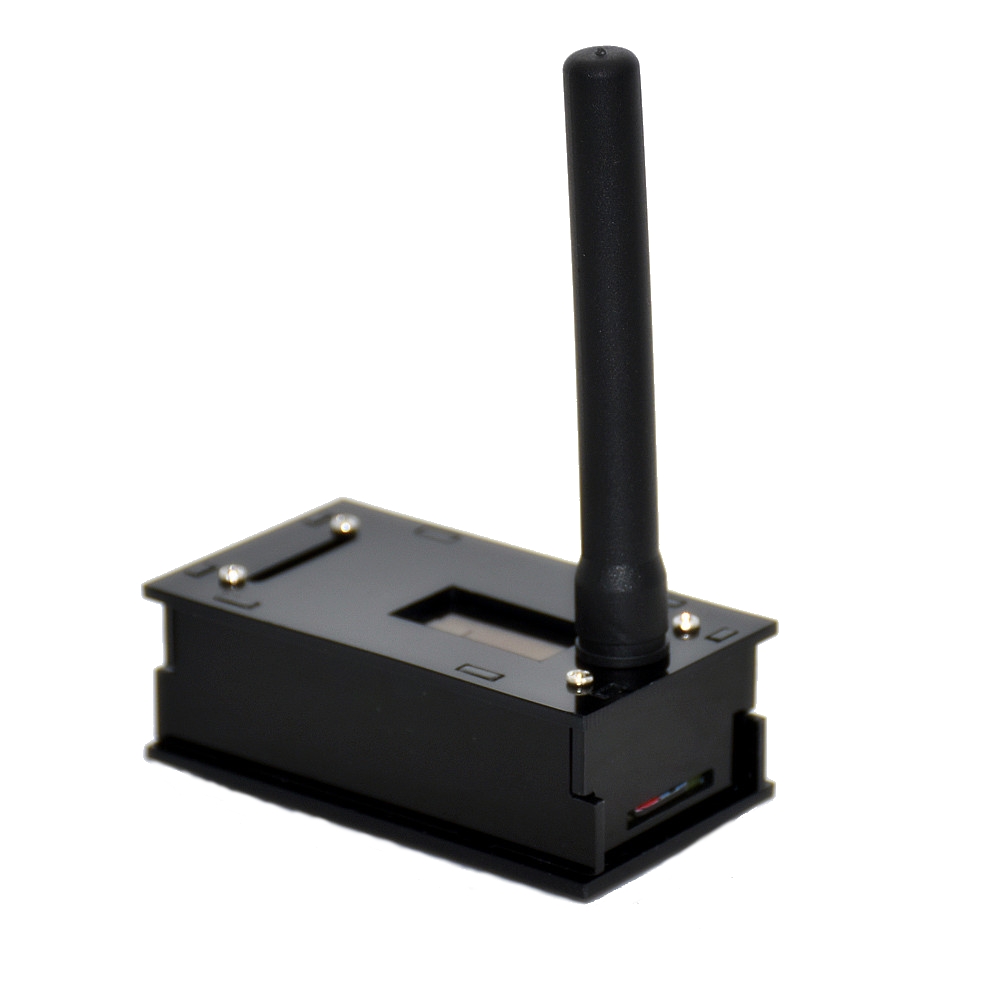

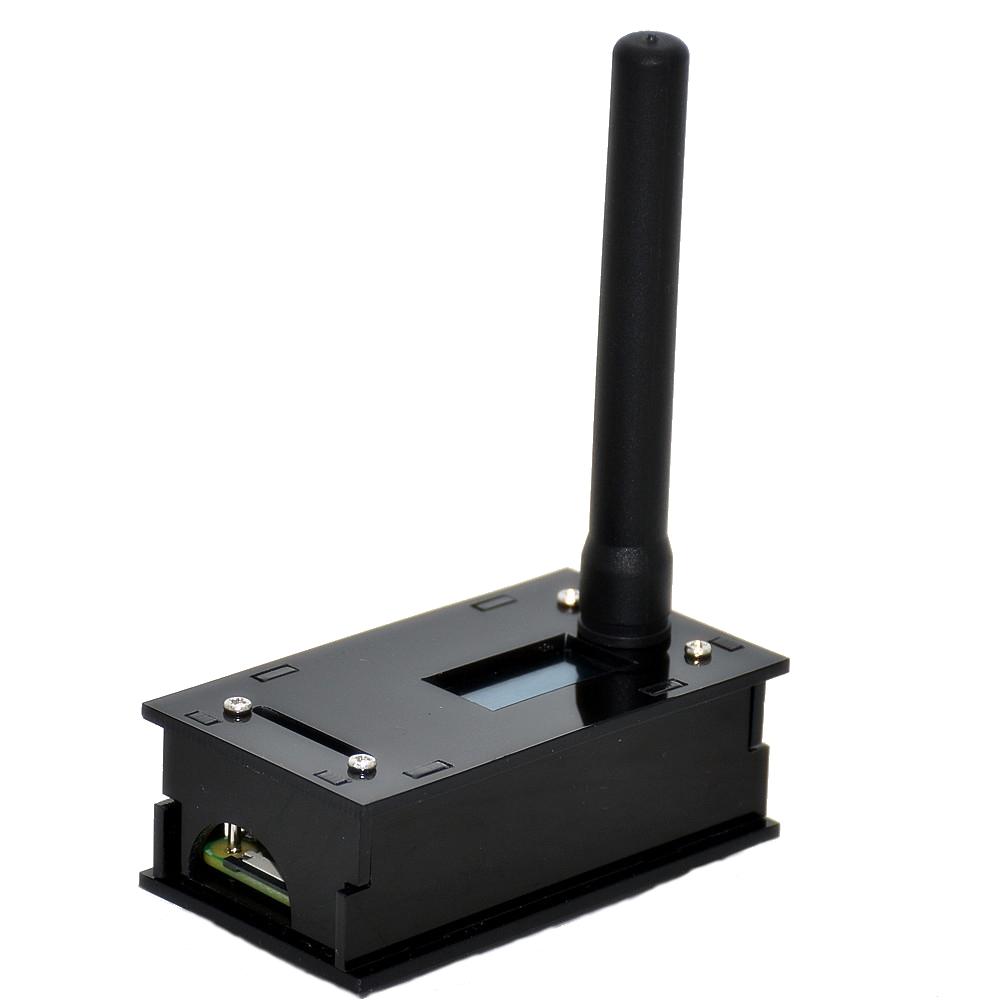

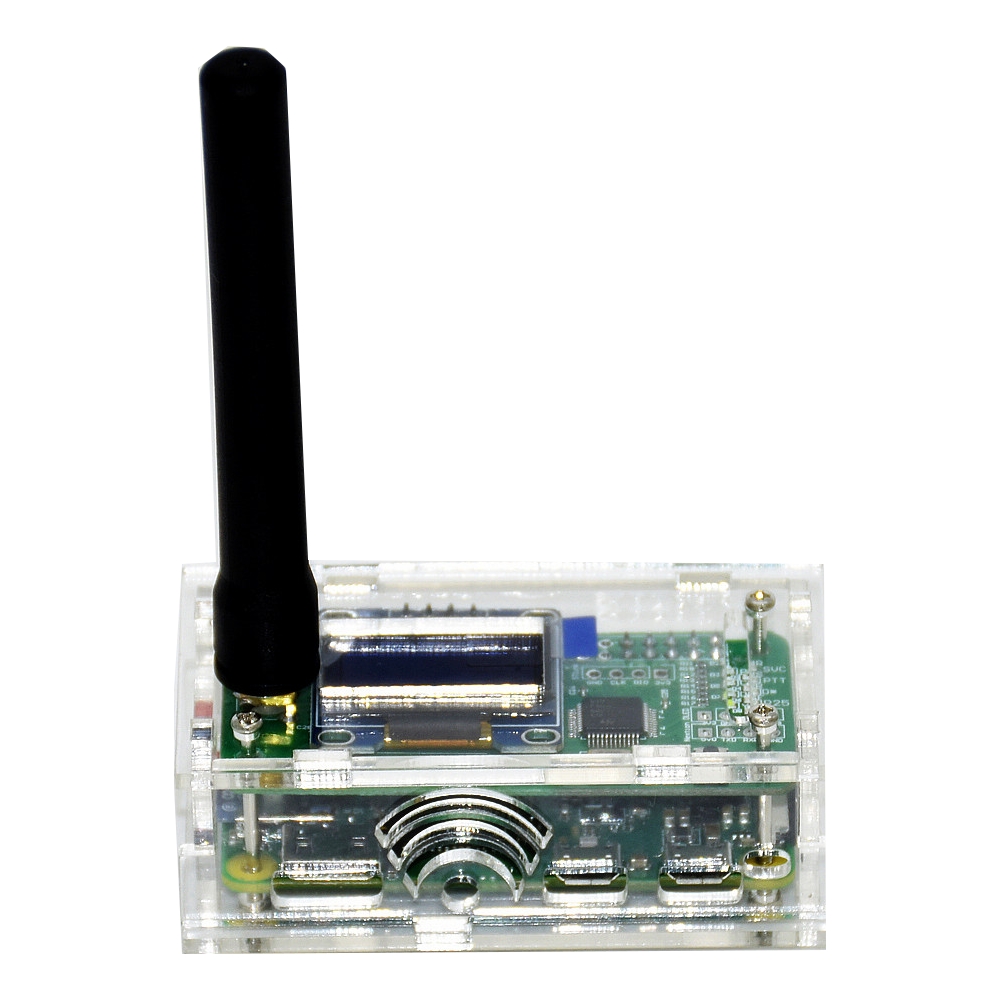

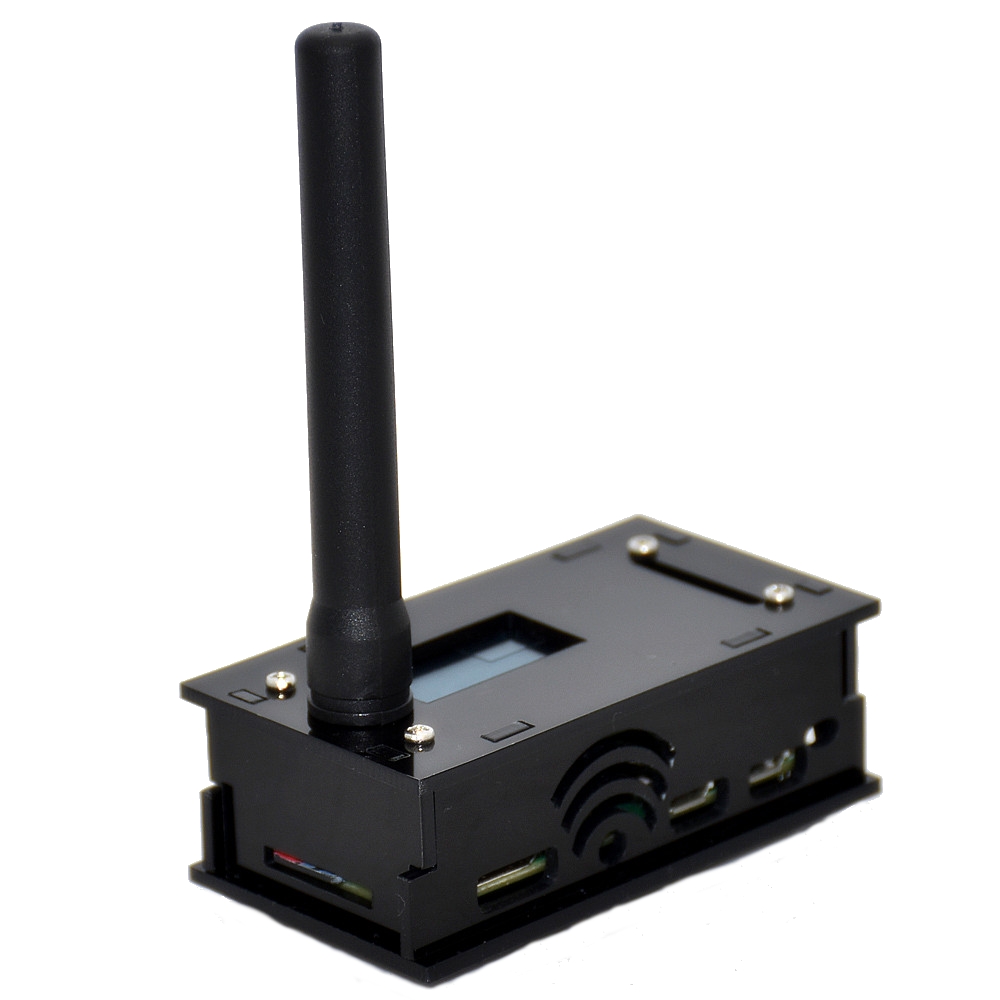

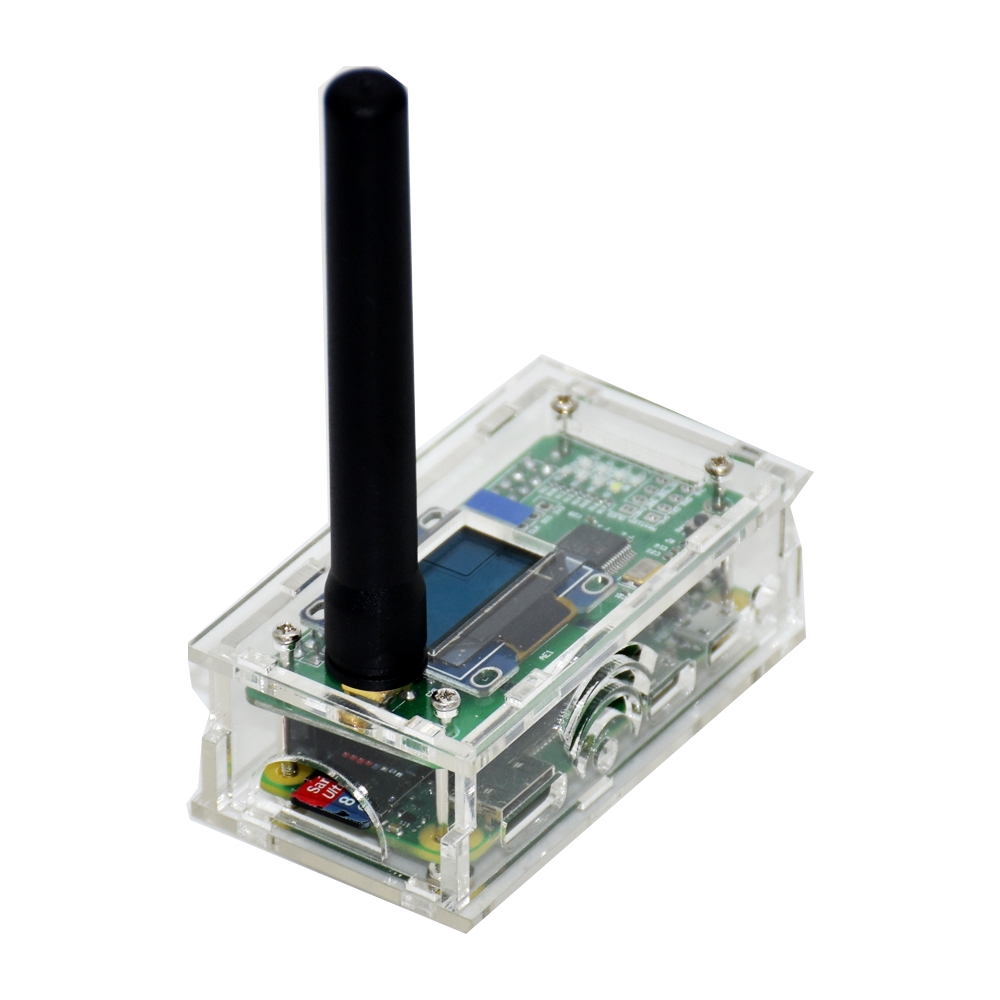

Jumbo-SPOT-RTQ is a completely self-contained digital hotspot supporting DMR,Dstar,P25 and System Fusion communications.Fully assembled and tested in a ruggedized aluminum enclosure.All that's required for operation is a mini usb (android phone's cable)power source and a WiFi based internet connection.
Pi-Star Digital Voice Software pre-loaded and easily upgraded via software.


- Supports PI-STAR's web based digital voice dashboard and configuration tool
- Supports all four digital amateur modes DMR,D-Star,P25 and System Fusion
- Built-in WiFi: 802.11b/g/n; Built-in OLED system status display indicating Mode,Talk Group and Call Sign; Built-in LED indicators for status of Power,PTT,COS and Mode
- Console port SSH 22 for root level access to the operating system
- Quad Core A7 1.2GHz Processor,512mb DDR3 RAM and 8gb TF Card

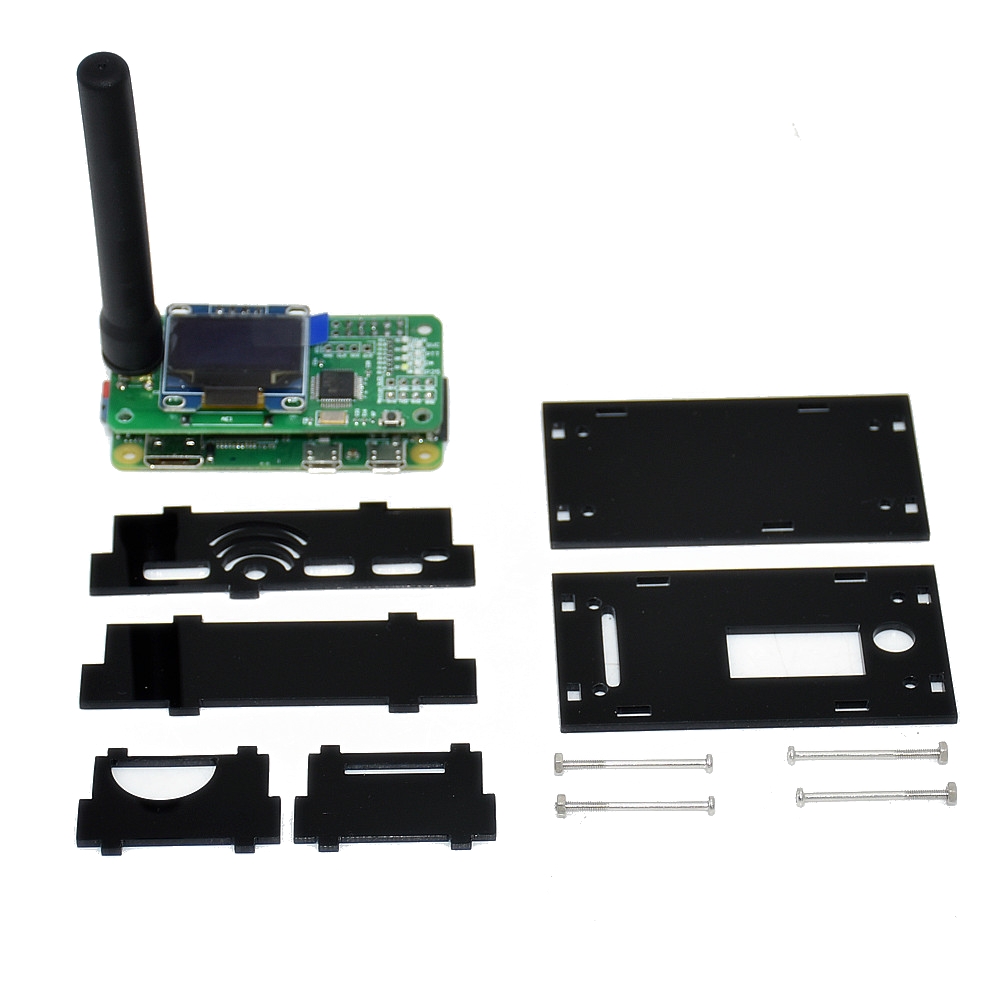

1x OLED display
1x Raspberry pi zero
1x MMDVM hotspot board
1x 8G TFT card
1x Acrylic case
1x 433Mhz antenna
