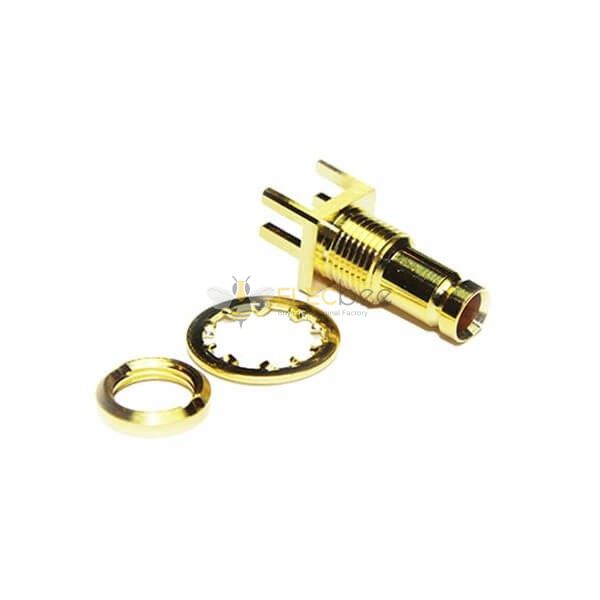

商品图

Elecbee 1.0/2.3 Connector Jack Straight 75Ω Solder Termination PCB Mount Micro Miniature Bulkhead Fitting

SKU: EB-010-0016
Favorites
Key Features

Features:

  • Female,Right Angle,Solder, PCB Mount,Micro Miniature,Brass,Gold, 75Ω,Push-Pull,6GHz
  • Compact design is ideal for limit space application and save space in delivery;
  • Push/pull mating is excellent for quick installation without vibrate loose;
  • Great performance with frequency up to 10GHz support high data rates.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of DIN1.0/2.3xa0Connectors:

  • Aerospace and Defense:xa0Communication systems
  • Telecommunications:xa0CATV, Central office, High-density Radios, Base station, Switching equipment
  • Networking: Video Equipment, Radio boards
Show More
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Bulkhead
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
75 Ohms
Frequency Max
10 GHz
Connector Series
DIN 1.0/2.3
Color
Gold
Fastening Type
Push-on
Orientation
Straight
Shell Material
Copper Alloy
