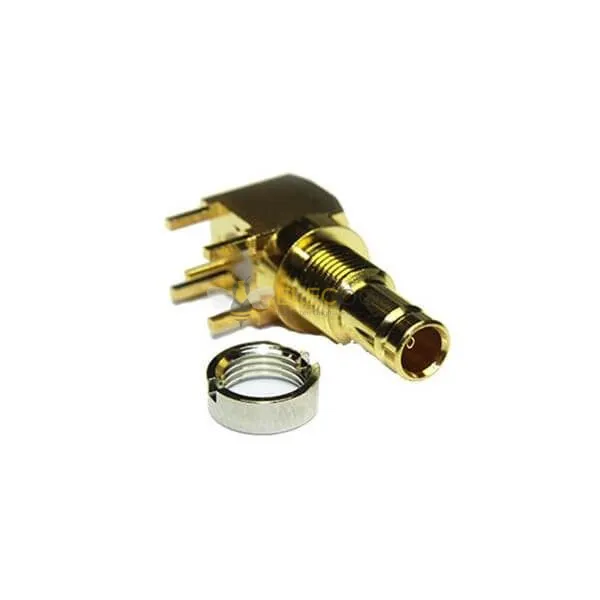

Elecbee 1.0/2.3 Connector Right Angle 75Ω Jack Solder Termination Micro Miniature Bulkhead Fitting for PCB Mount

SKU: EB-010-0013

Favorites

Key Features

Features:

xa0Female,Right Angle,Solder, PCB Mount,Micro Miniature,Brass,Gold, 75Ω,Push-Pull,4.5GHz
Compact design is ideal for limit space application and save space in delivery;
Push/pull mating is excellent for quick installation without vibrate loose;
Great performance with frequency up to 10GHz support high data rates.
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of DIN1.0/2.3xa0Connectors:

Aerospace and Defense:xa0Communication systems
Telecommunications:xa0CATV, Central office, High-density Radios, Base station, Switching equipment
Networking: Video Equipment, Radio boards

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

17%

4 stars

5 stars

67%

E****s

The quality is very reliable and the price is affordable.

J****e

Perfect for tight PCB spaces – the right-angle design and micro miniature size saved me so much room on our defense comms board. Soldering was smooth and signal integrity up to 2 GHz is solid.

J****s

Good build quality and gold plating ensures reliable contact. The 75Ω impedance matches well with our CATV setup. Push-pull coupling holds firm, even in vibration-prone environments.

P****i

Exactly as described. Performed flawlessly in a high-density radio array. Supports up to 4.5GHz and maintained low VSWR. Brass body feels durable for field use.

M****i

Works well electrically, but be careful when soldering – the small size makes it easy to overheat. Once mounted, the push-pull connection is secure and repeatable.

B****a

Impressed with the performance up to 10GHz in testing. Great for high-data-rate applications. Also appreciate the 30-day money-back guarantee – gives confidence when ordering in bulk.
