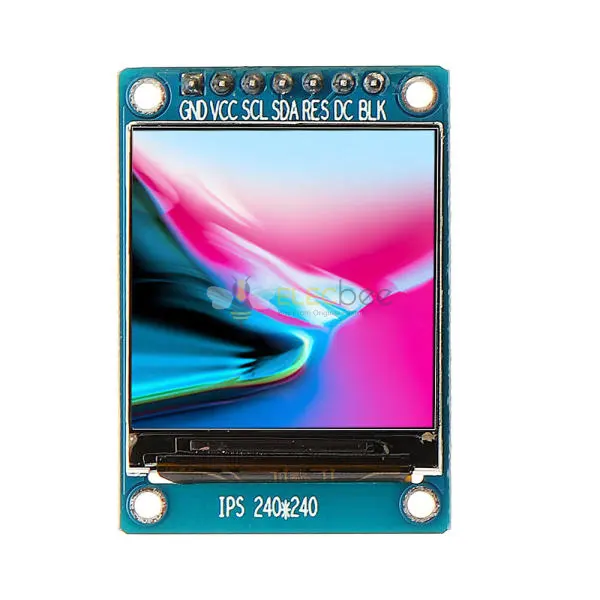

Elecbee 1.3 Inch IPS TFT LCD Display 240*240 Color HD LCD Screen 3.3V ST7789 Driver Module

SKU: EB0051017
Favorites
Key Features


Display Sizexa01.3 inch
Materialxa0HD IPS color screen,xa0the color is more vivid than ordinary TFT LCD
Resolutionxa0240*240 display, the xa0direction can be adjusted, horizontal and vertical
Control chipST7789
Display area23.4x23.4mm
Physical size27.78x39.22mm
Interface typexa04-wire SPI interface
Number of pins7PIN
Viewing direction
Full view
Working temperature-20°C~70°C

Interface definition:

1GNDPower ground
2VCCPower 3.3+
3SCLSPI clock line
4SDASPI data line
5RESReset
6DCData/command selection foot
7BLKBacklight control, the default can be left floating, low level to turn off the backlight.

More informations andxa0Routine: Click here to open

Show More
Attribute
Value
Model
ST7789
Description


1 x TFT display module


1 x TFT display module
