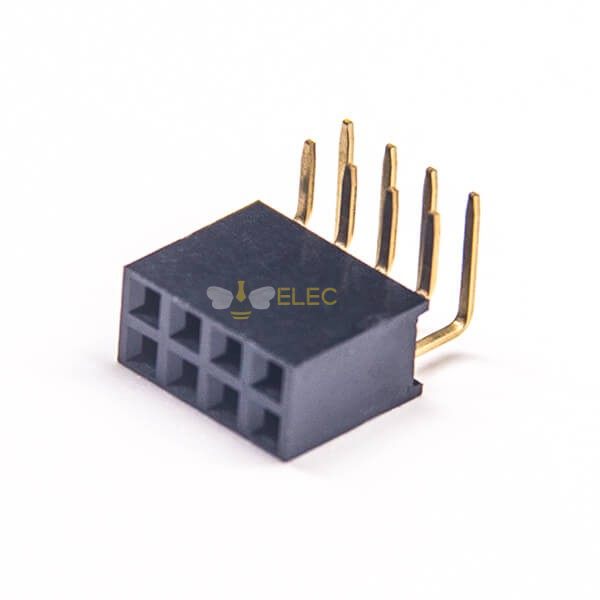

Elecbee 10pcs Right Angle Female Header Pin Connector Dual Row Y Type 2.54mm Picth

SKU: 10XEB-609-0074

Favorites

Key Features

Features:

Female Header Connector,Female/Jack,Right Angled/90°, 2.54mm,8Pin,Double Row,Y Type ,DIP,Solder Type，Gold Plating,H8.5mm,Square, Black
Normally associated with ribbon cable connectors, or worked as recipients for jumpers
consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Applicationxa0

Electronic device
Home appliances
Electrical instruments
Automotive: Car navigation LCD panel and so on.
Lighting industry
The above applications are typical but not limited, these products are widely use in many fields

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

17%

4 stars

5 stars

67%

R****g

I will buy again because the quality is good.

P****r

Perfect for my DIY PCB project. The right-angle design saves space and the gold plating ensures solid connections. Exactly as described, 8-pin dual row with 2.54mm pitch fits neatly.

A****a

Good quality connectors, worked well with my ribbon cables. Soldering was easy thanks to the DIP design. One arrived slightly bent, but overall great value.

M****i

Used in a car navigation repair—fit perfectly on the LCD panel. Withstands temperature changes well. Happy with the durability after 3 months of use.

S****m

Solid connectors, but be careful when soldering—PA6T housing can warp if overheated. Otherwise, good performance for the price.

M****z

Exactly what I needed for compact prototyping. The Y-type dual row is rare to find—great for tight spaces. Will buy again.
