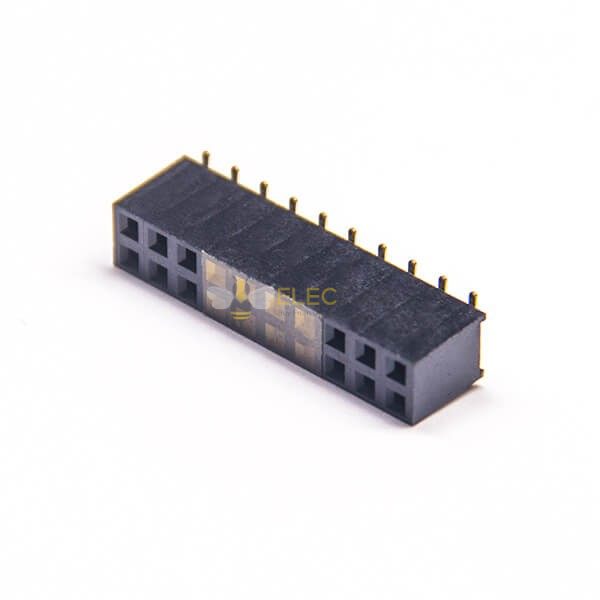

Elecbee PH2.54mm Female Header SMT Type 180 Degree U Type Dual Row 7.1mm palstic Height 2*10 20 Pin

SKU: EB-609-0076

Favorites

Key Features

Features:

Female Header Connector,Female/Jack,Straight/180°,20pin,2.54mm,Dual Row，U Type,SMT,Solder Type，Gold Plating,H7.1mm,Square, Black
Normally associated with ribbon cable connectors, or worked as recipients for jumpers
consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application

Electronic device
Home appliances
Electrical instruments
Automotive: Car navigation LCD panel and so on.
Lighting industry
The above applications are typical but not limited, these products are widely use in many fields

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

17%

4 stars

5 stars

67%

M****n

Excellent service.

a****d

Perfect fit for my automotive LCD panel project. The gold plating and SMT design made soldering smooth, and it held up well during reflow. Exactly as described.

H****s

Good quality connector with solid pin spacing (2.54mm). Used in a home appliance control board—works reliably. Only wish the packaging was a bit more protective.

K****t

Used these in a lighting control module. Withstands high temps and the PA6T insulator gives confidence in durability. Great value for OEM-grade parts.

R****?

Decent product. Worked fine for my prototype, but one unit had slight misalignment. Still okay for the price, especially with the 30-day return option.

T****n

Reliable contact resistance and easy to integrate. Ideal for ribbon cable setups. Will definitely reorder when needed.
