Part Number: EB-DRF-0105

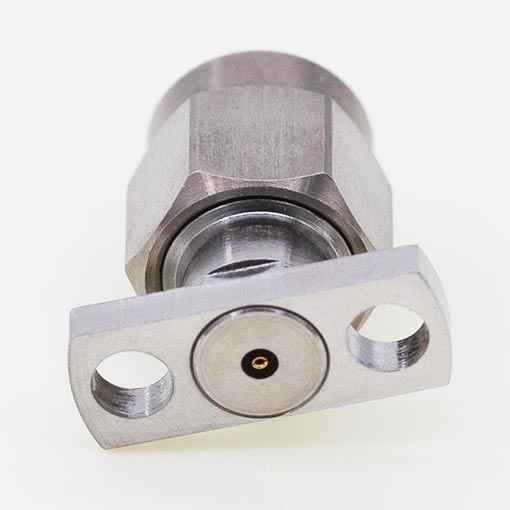

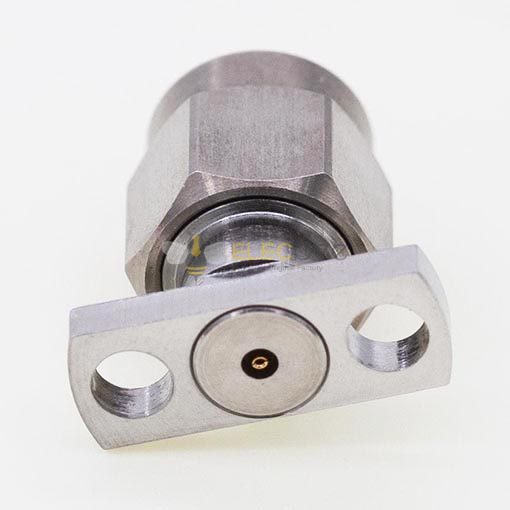

Description: 2.92mm Male Replaceable Connector, 12.7 x 4.8mm / 0.500 x 0.190inch Flange Plug Receptacle for Φ0.23mm / .009″ Pin.
This EB-DRF-0105, 2.92mm 2 hole male replaceable connector with size 12.7 x 4.8mm / 0.500 x 0.190inch flange plug, receptacle for Φ0.23mm / 0.009inch pin, frequency range from DC to 40GHz, 50Ω impedance, VSWR 1.15:1 (max) for DC~40GHz, 750V withstanding voltage, ≥3000mΩ insulation resistance, 500 cycles durability and -55°C~+165°C operating temperature.
| Polarity | Standard |
| Interface | 2.92mm |
| Connector Type | Plug |
| Connector Gender | Male |
| Impedance | 50Ω |
| Body Shape | Straight |
| Body Mounting | 2 Hole Flange |
| Attachment Method | Field Replacement |
| Frequency Range | DC~40GHz |
| VSWR： | DC~40GHz: 1.15:1 (Max) |
| Contact Resistance | Centre Conductor ≤3.0mΩ |
| Outer Conductor ≤2.0mΩ | |
| Insulation Resistance | ≥3000mΩ |
| Withstanding Voltage | 750V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper Plated |
| Gold (MIL-G-45204) | |
| Insulators | PEI or PEI & PTFE |
