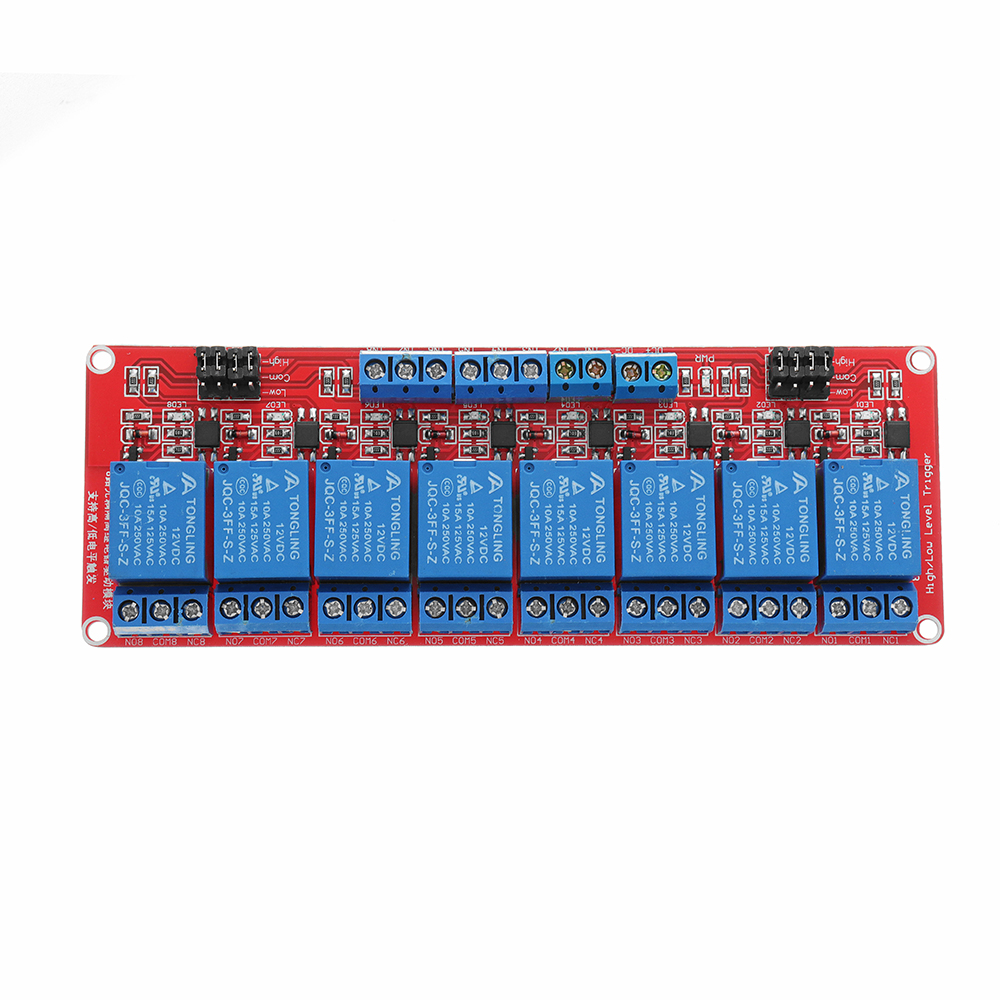

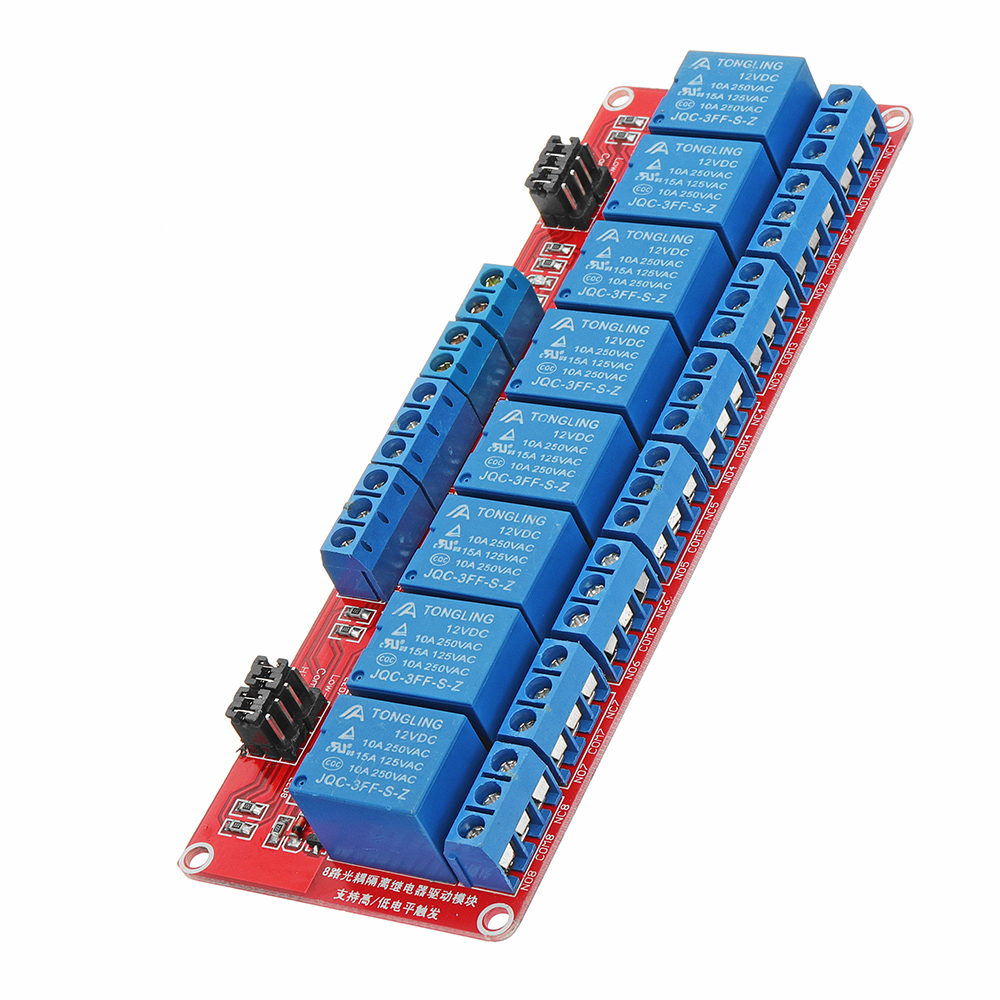

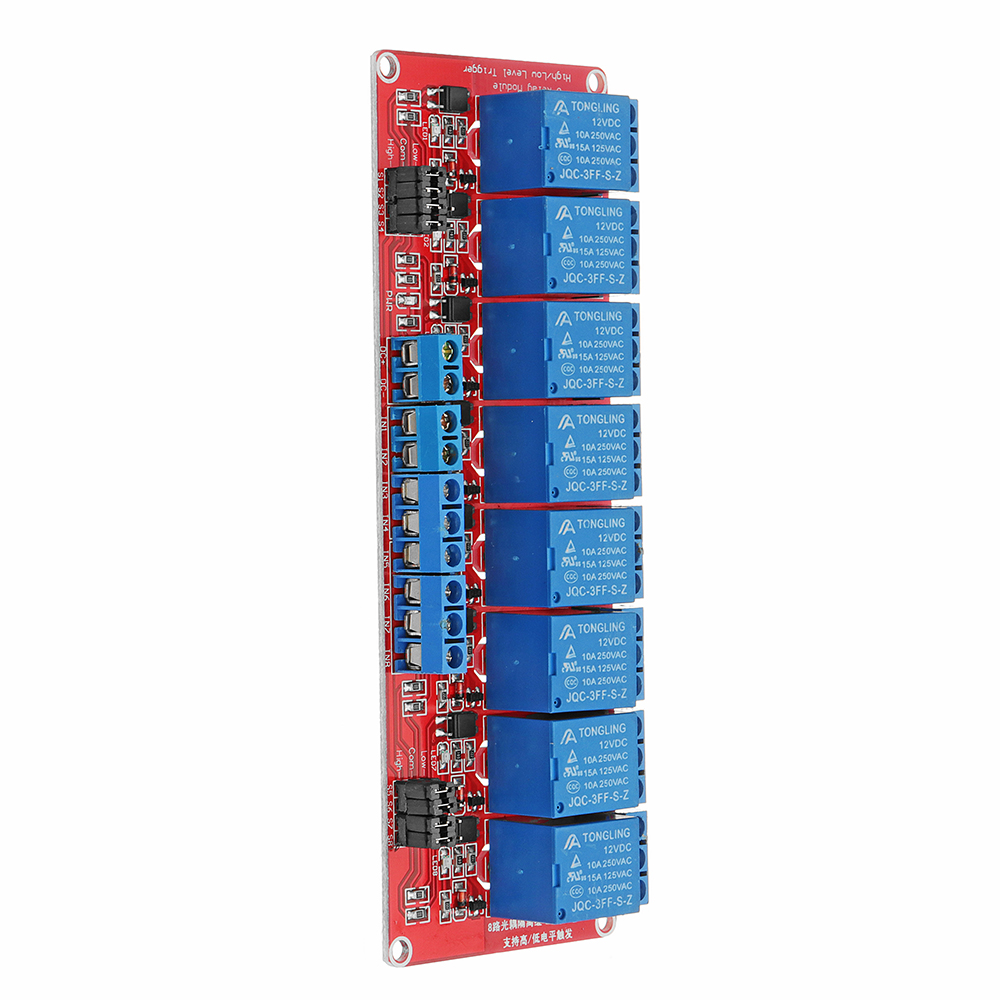

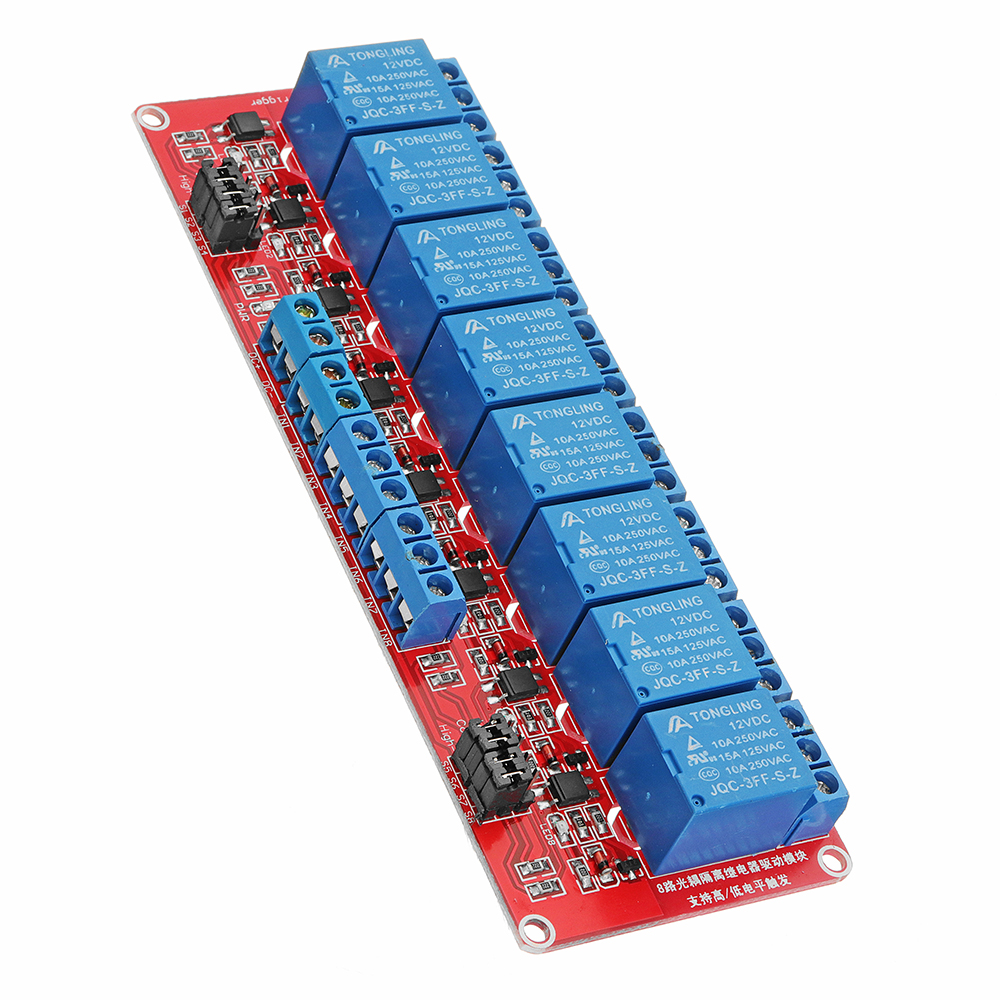

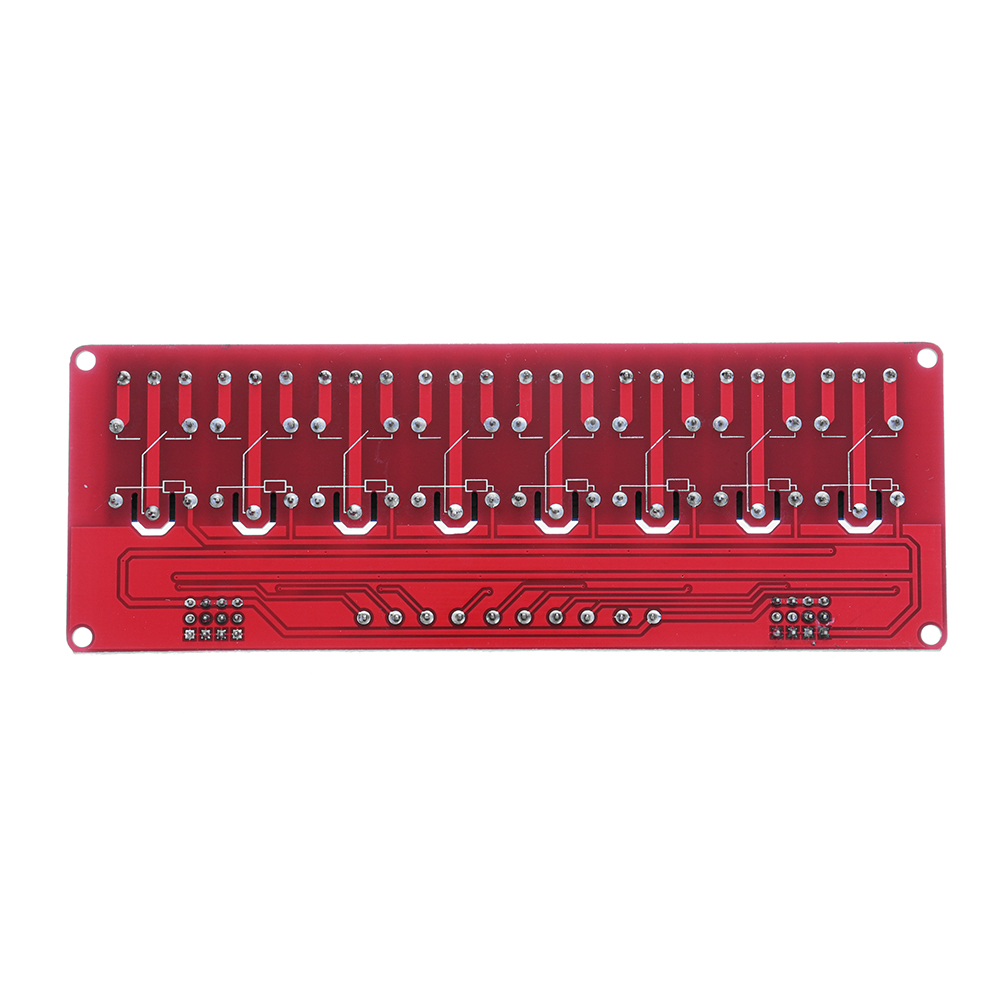

Elecbee 12V 8 Channel Level Trigger Optocoupler Relay Module

SKU: EB0045687

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

DESCRIPTIONIMAGE0

Show Similar Products >

Description

Description:

The module uses genuine quality relay, normally open interfaces

Using SMD optocoupler isolation, driving ability, stable performance

The module can be high or low by a jumper setting trigger

Fault-tolerant design, even if the control line is broken, the relay will not operate

The power indicator (green), the relay status indicator (red)

The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient

Specification:

Maximum load: AC 250V/10A, DC 30V/10A

Trigger current: 5mA

Working voltage: 12V

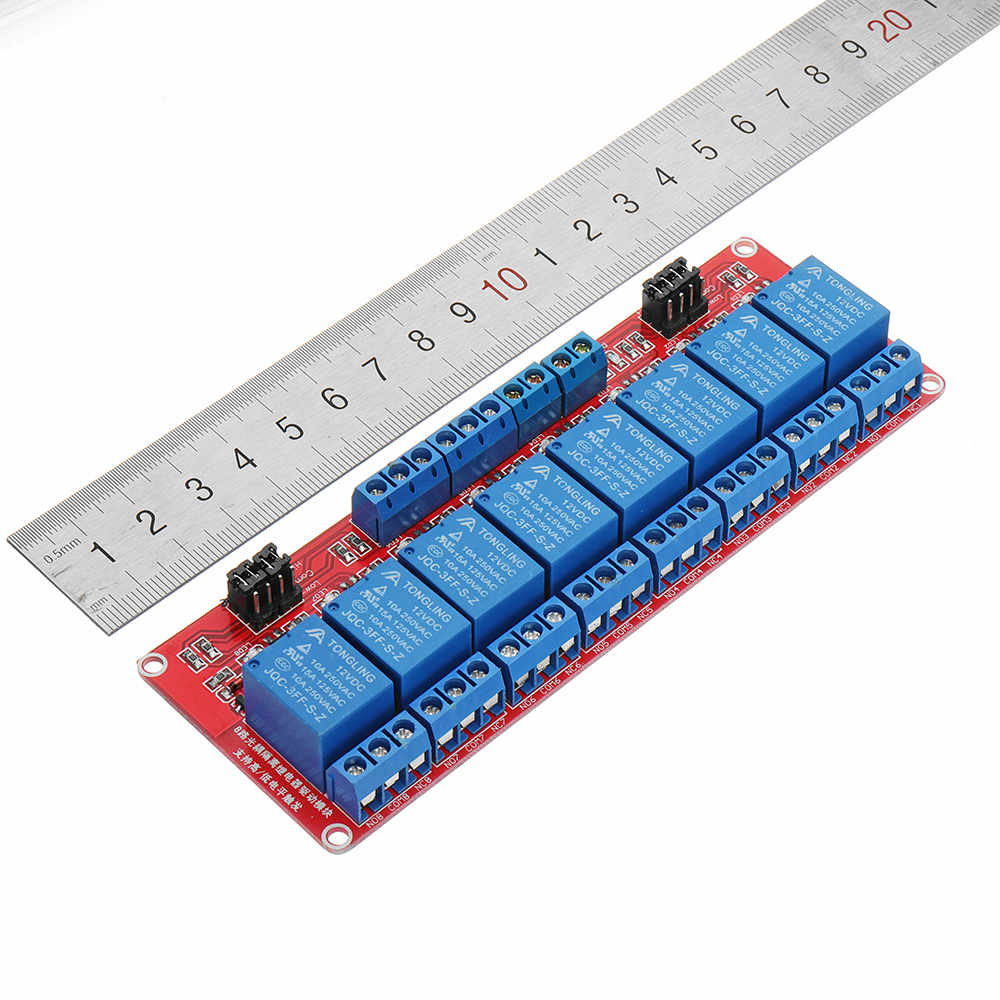

Module size: 140 x 50 x 18.5mm (L x W x H)

Four mounting bolts holes, diameter 3.1mm

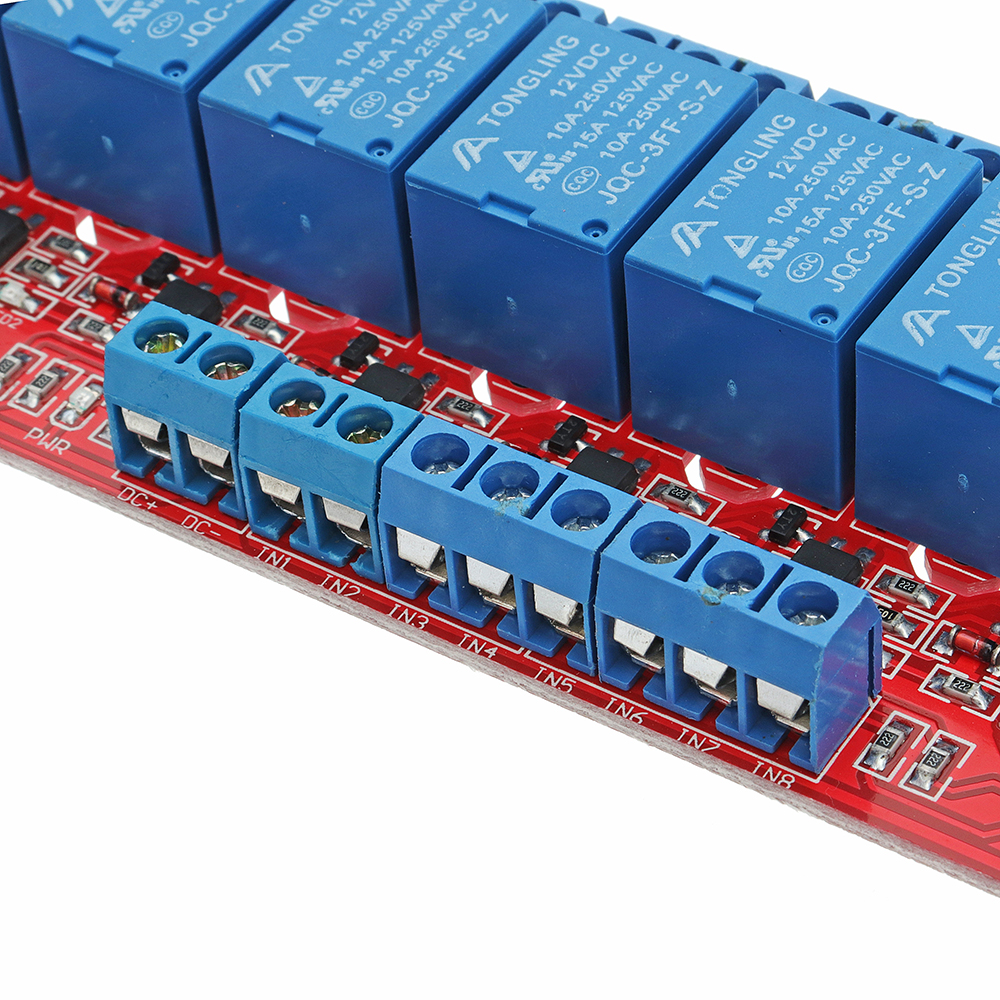

Module Interface:

DC+: positive power supply (VCC)

DC-: negative power supply (GND)

IN: can be high or low level control relay

Relay Outputs:

NO: normally open relay interface

COM: Common Interface Relays

NC: normally closed relay interface

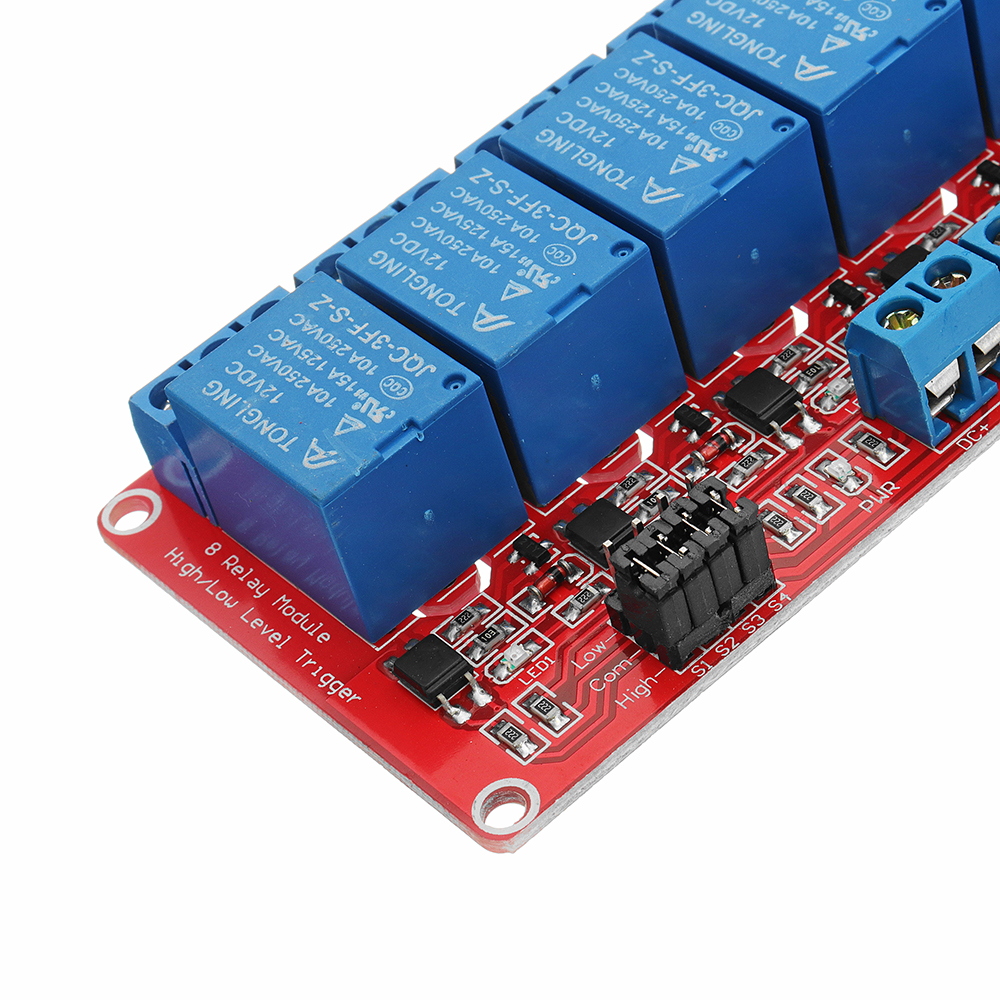

High and low level trigger options:

It is low level trigger when jumper connect to LOW pin

It is high level trigger when jumper connect to HIGH pin

Package included:

1 x 8 Channel H/L Level Trigger Optocoupler Relay Module

12V-8-Channel-Level-Trigger-Optocoupler-Relay-Module-1343147
