Elecbee 2.8 inch TFT LCD Display Shield + UNO R3 Board with TF Card Touch Pen USB Cable Kit For UNO Mega2560 Leonardo

SKU: EB0050515

Favorites

Key Features

xa0

- Can use it directly to display characters, graphics and BMP format images. And touch controlling is available;

- Compatibility: As the SD card is connected to SPI pins of ICSPxa0 interface, compatible with UNO R3 /xa0 Mega2560 / Leonardo

- Library: TFTLibrary and Adafruit_GFX;

- Touch screen type: resistive touchscreen.

- Touch Pen: length is 9cm;

- Resolution: 240X320;

- Display size: 2.8 inch;

- Operating voltage: 5V;

- Logic level: 5V / 3.3V;

- On-board 3.3V / 300mA regulator circuit;

- Operating current: the maximum is 150mA

- Use the A0 ~ A3 pins, D4 ~ D13 pins. Andxa0 I2C interface, D0 / D1 / D2 / D3 is available, please refer to the product schematics for the details.

- Onboard Micro SD slot, support Micro SD / TF Card;

- Onboard LM75 temperature sensor: default I2C address is 0X48, scale is -55 ~ 125'C

- Great for DIY

Specifications

Show Similar Products >

Description

Description:

No additional modules, this kit can achieve rich projects such as character display, image reading and display, touch sketchpad, temperature measurement, and display.

The kit includes a UNO R3 board which is 100% compatible with the UNO R3 program, expansion shields, IDE.

The kit includes a 2.8 inch TFT touch screen expansion board using standard Shield interface and it has good compatibility. It integrates a 2.8-inch touch screen, I2C temperature sensor, TF card holder, level conversion circuit, and the secondary development is less difficult.

With the GPRS module, you can design your Arduino phone.

With the NFC reader module, you can create access control systems with the photos show.

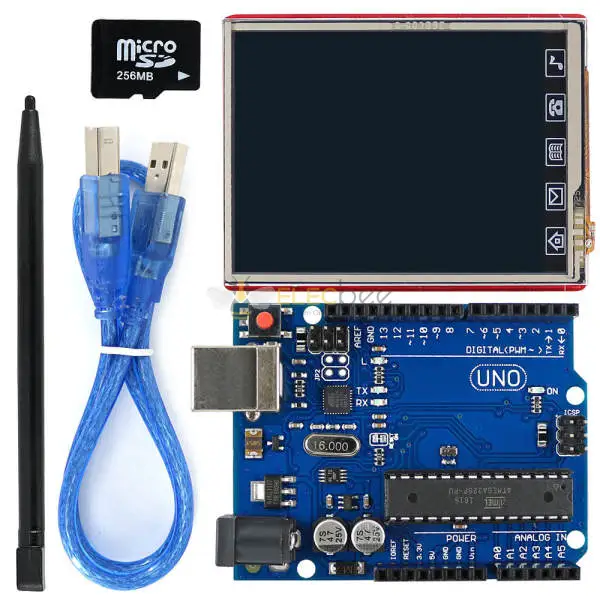

1 x Shield

1 x UNO R3 board

1 x USB cable (50cm)

1 x Micro SD card (256MB)

1 x Touch pen

28-inch-TFT-LCD-Display-Shield--UNO-R3-Board-with-TF-Card-Touch-Pen-USB-Cable-Kit-For-UNO-Mega2560-L-1625460
