Elecbee 2 Channel 12V Relay Module High And Low Level Trigger For Auduino

SKU: EB0046749

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

IN1

Show Similar Products >

Description

Description:

The module uses genuine quality relay, normal open interface maximum load: AC 250V/10A, DC 30V/10A.

The chip optocoupler isolation, strong driving ability, stable performance, trigger current 5mA.

Working voltage is 12V.

Each channel of the module can be set up by high jumper or low level trigger.

Fault tolerant design, even if the control line is broken, the relay will not act.

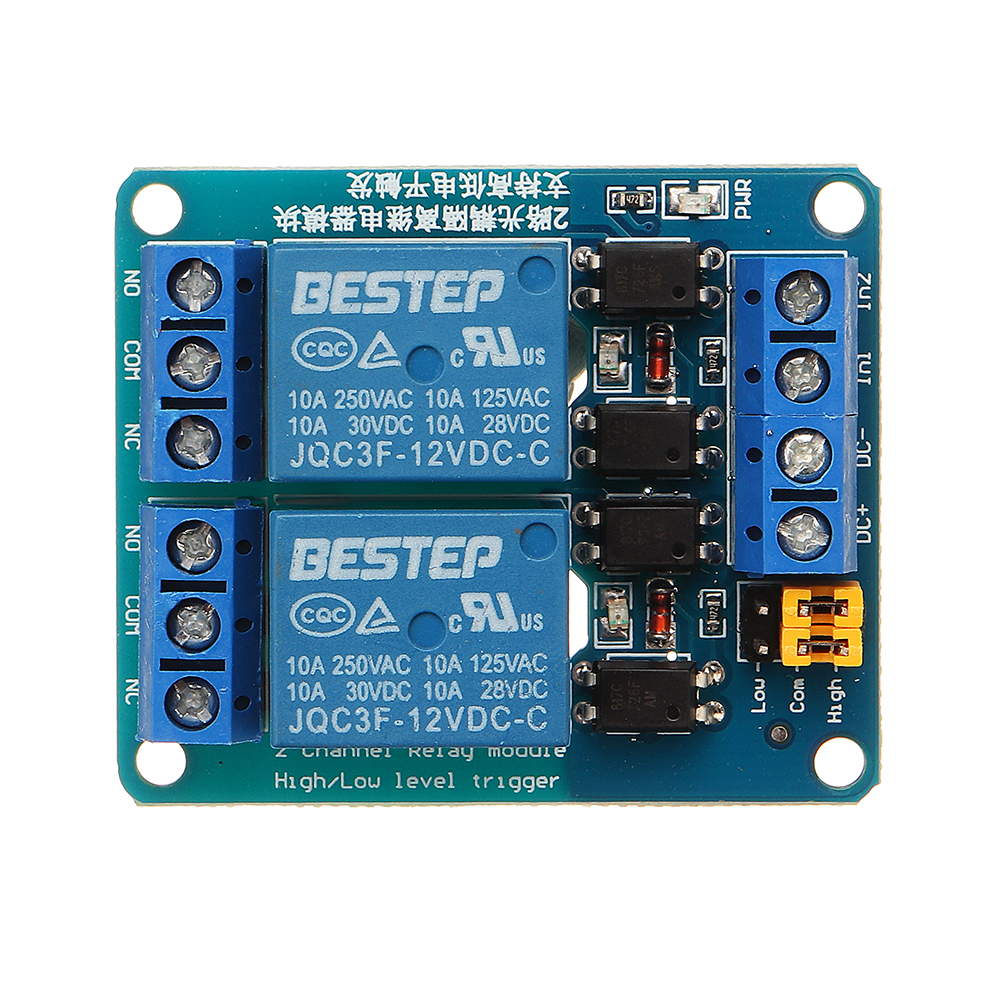

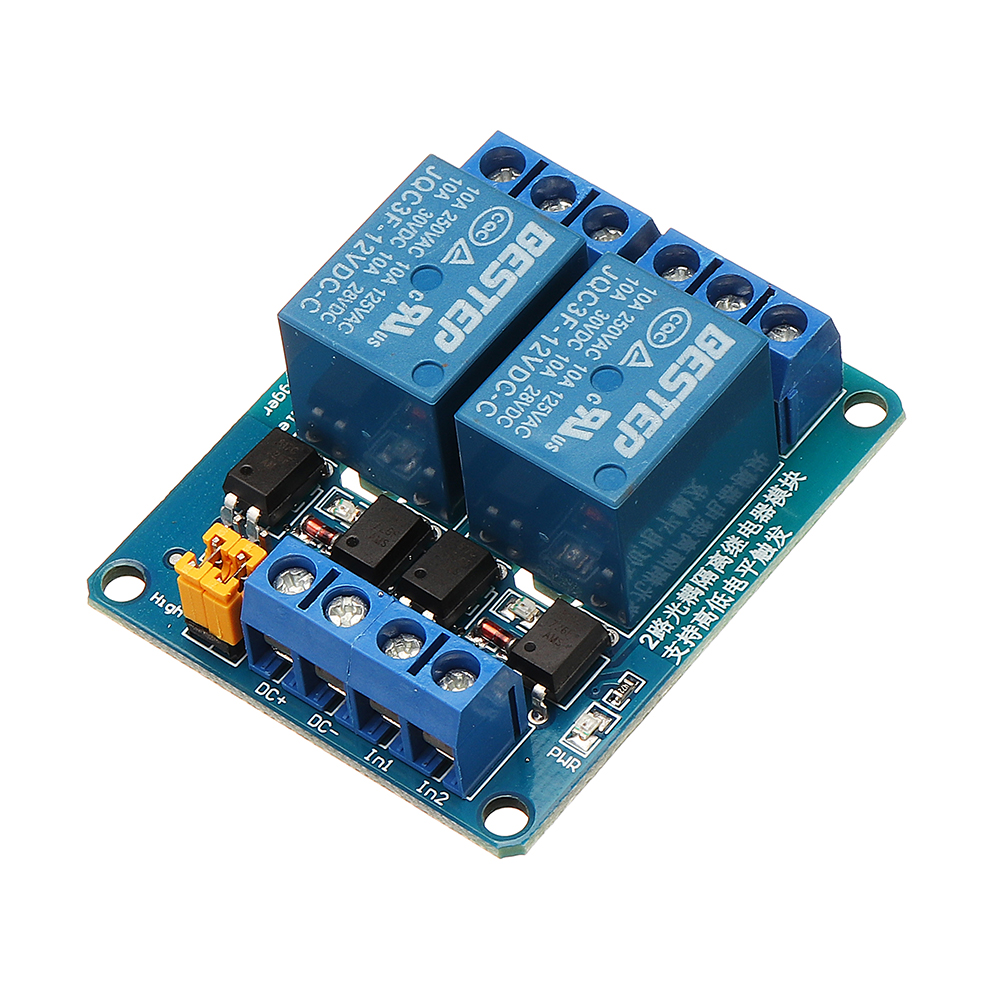

Power indicator (green), 2 relay status indicator (red).

The interface design is humanized, all interfaces can be directly connected through the terminals, so it is very convenient.

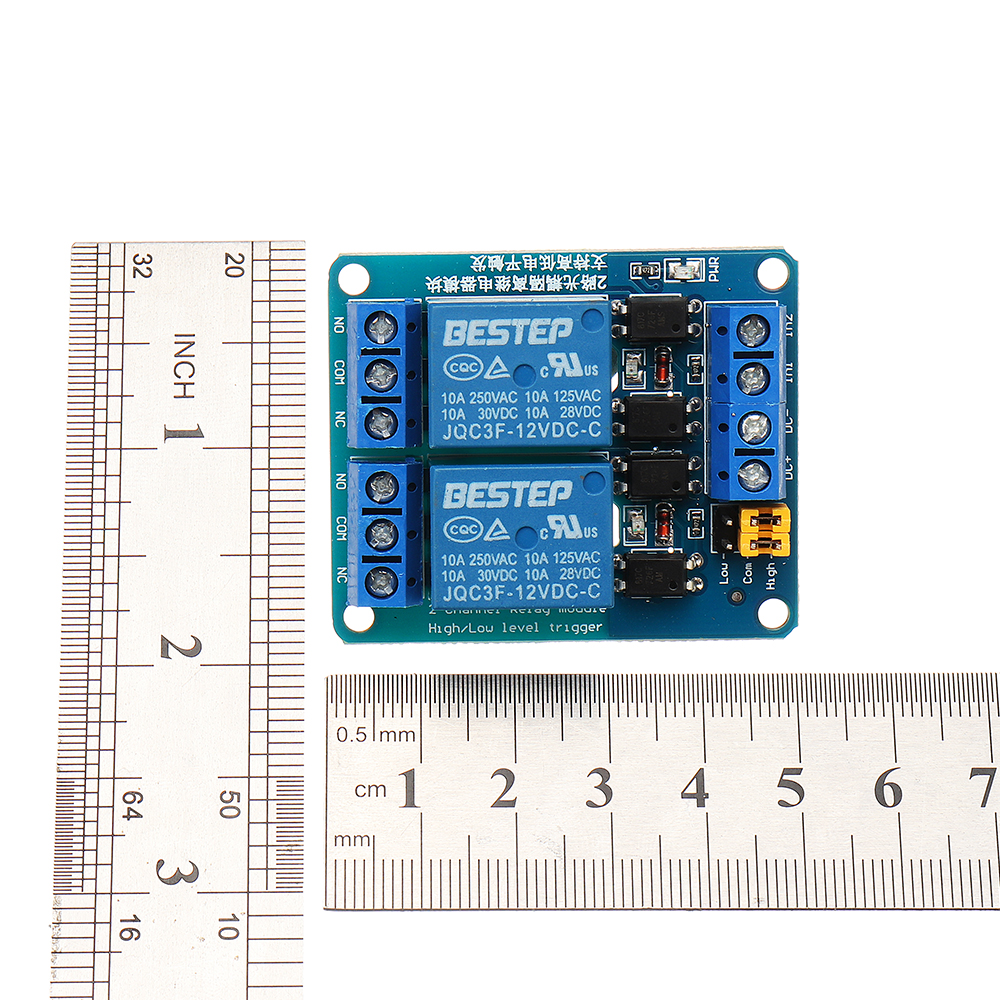

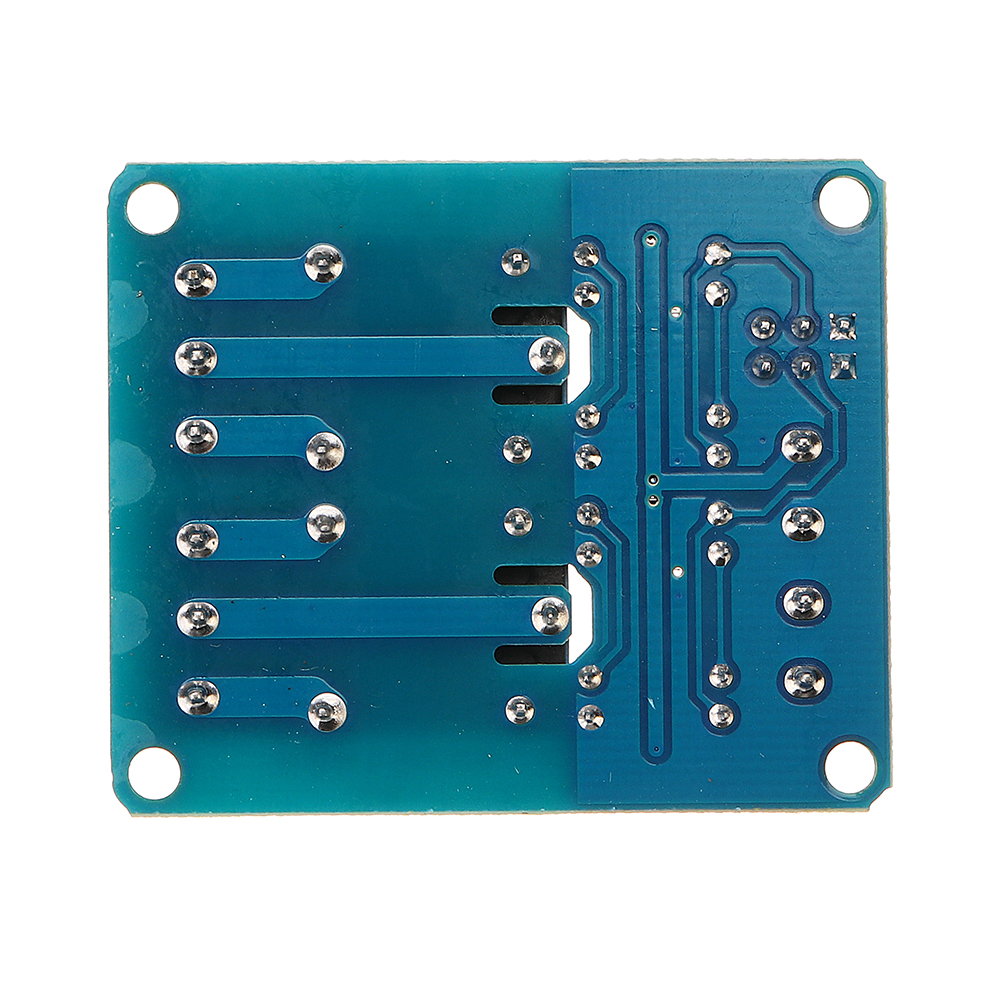

Module size: 50mm x 42mm x 18.5mm (length x width x height).

There are 4 fixed bolt holes, holes 3.1mm, spacing 67mm x 44.5mm.

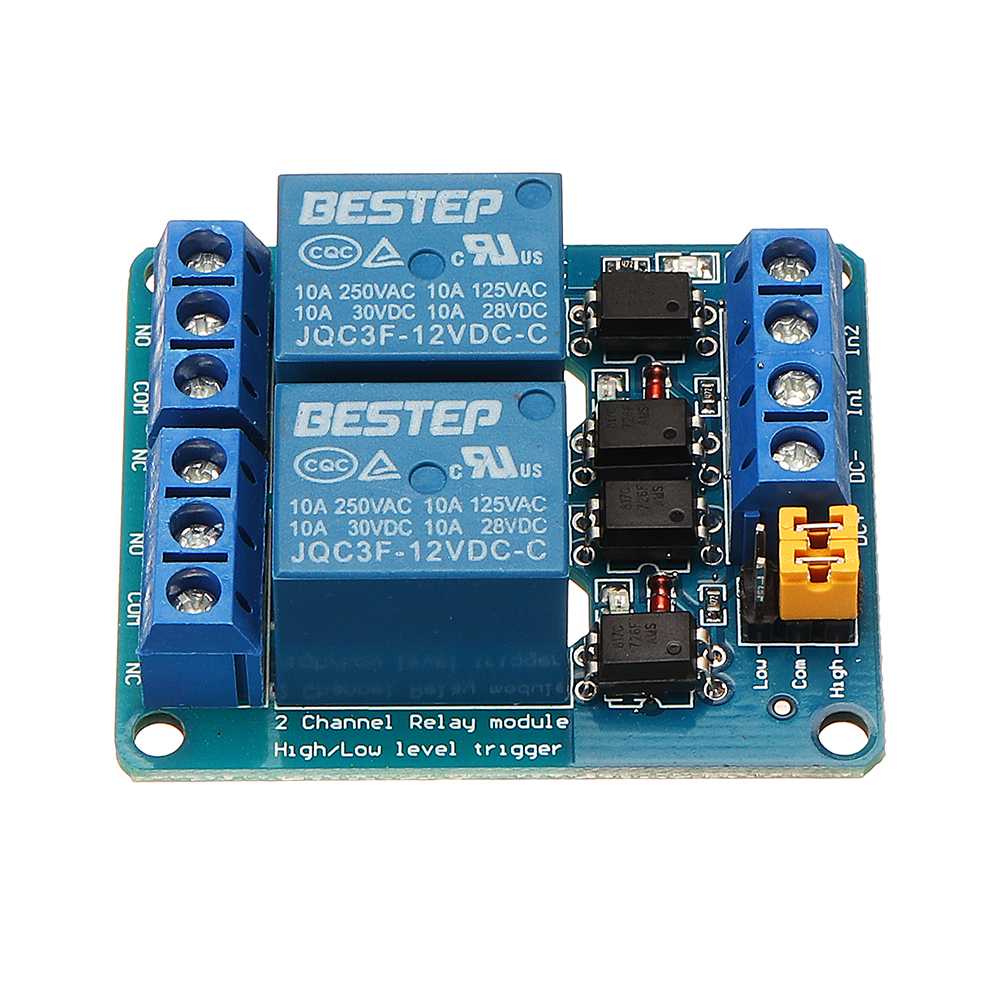

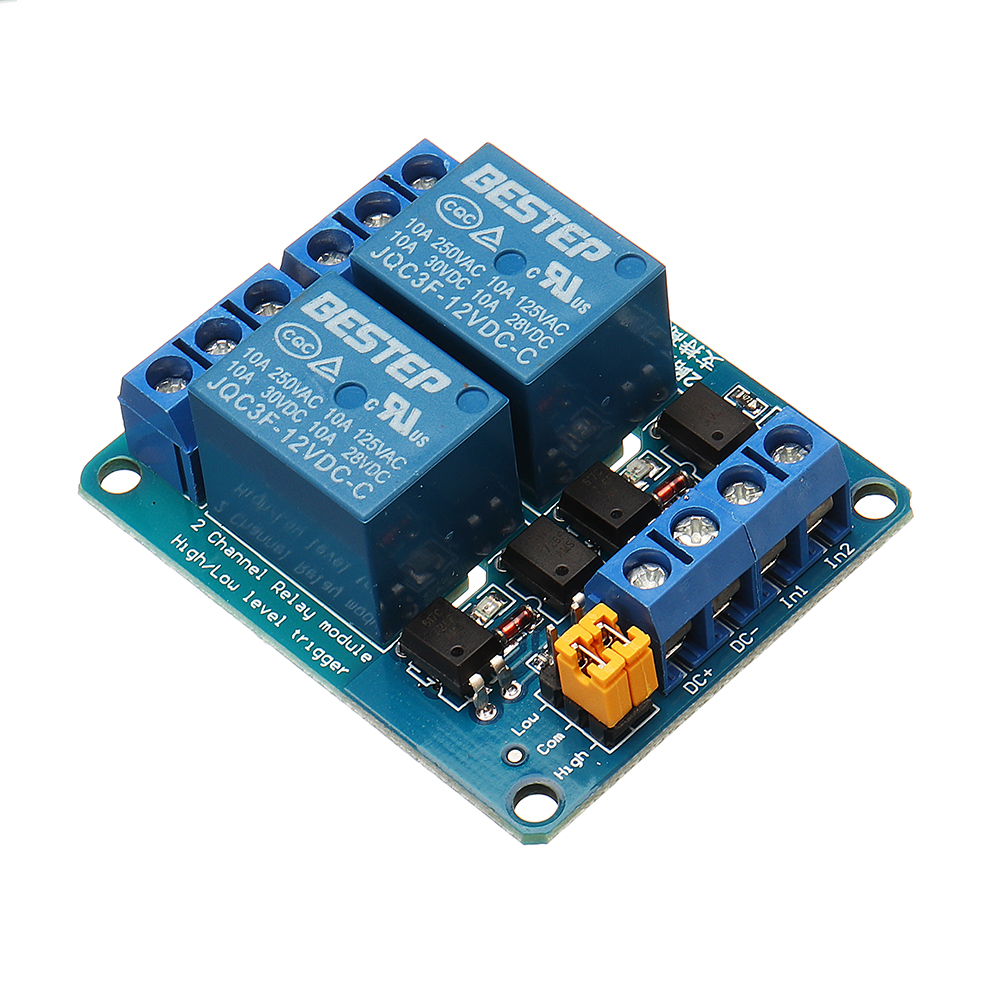

Module interface:

1, DC+: Connect the power positive pole (voltage according to relay 12V).

2, DC-: Connect the power negative pole.

3, IN1-IN2: According to the setting of each way, the corresponding relay-operating can be controlled by high or low level.

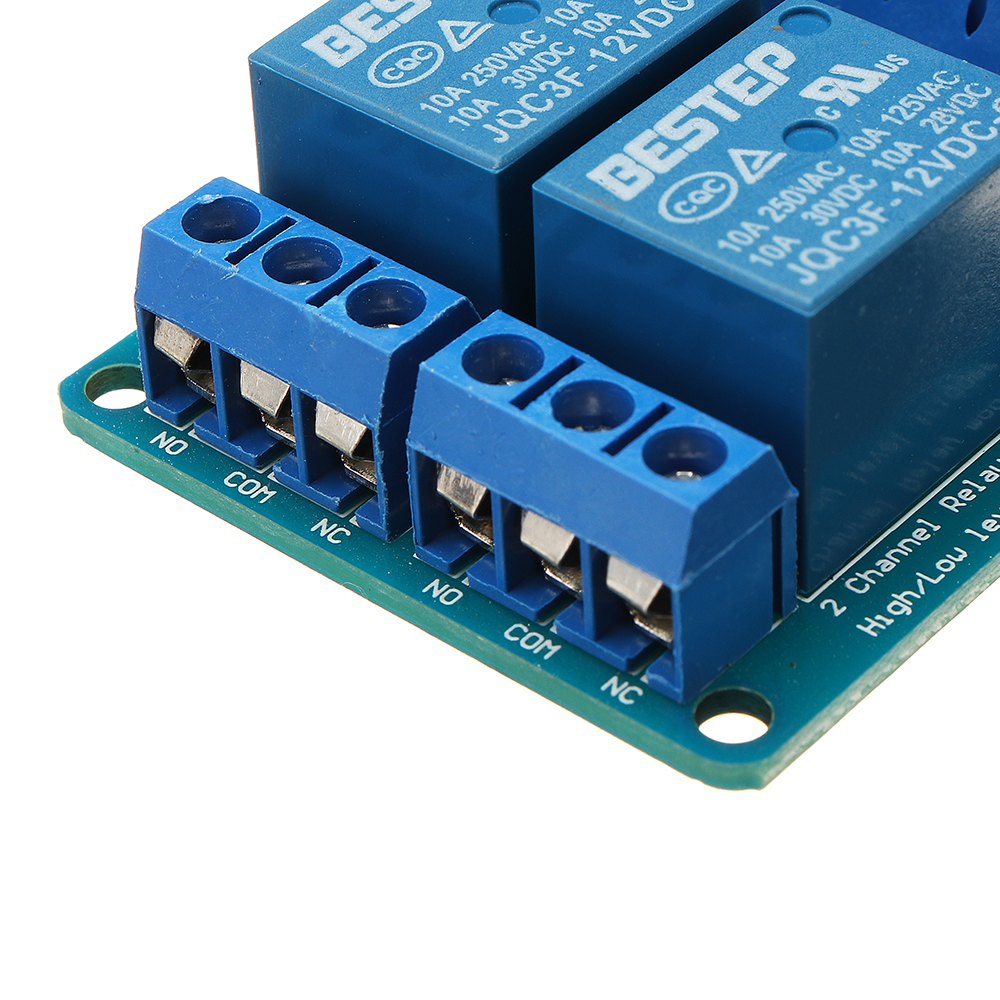

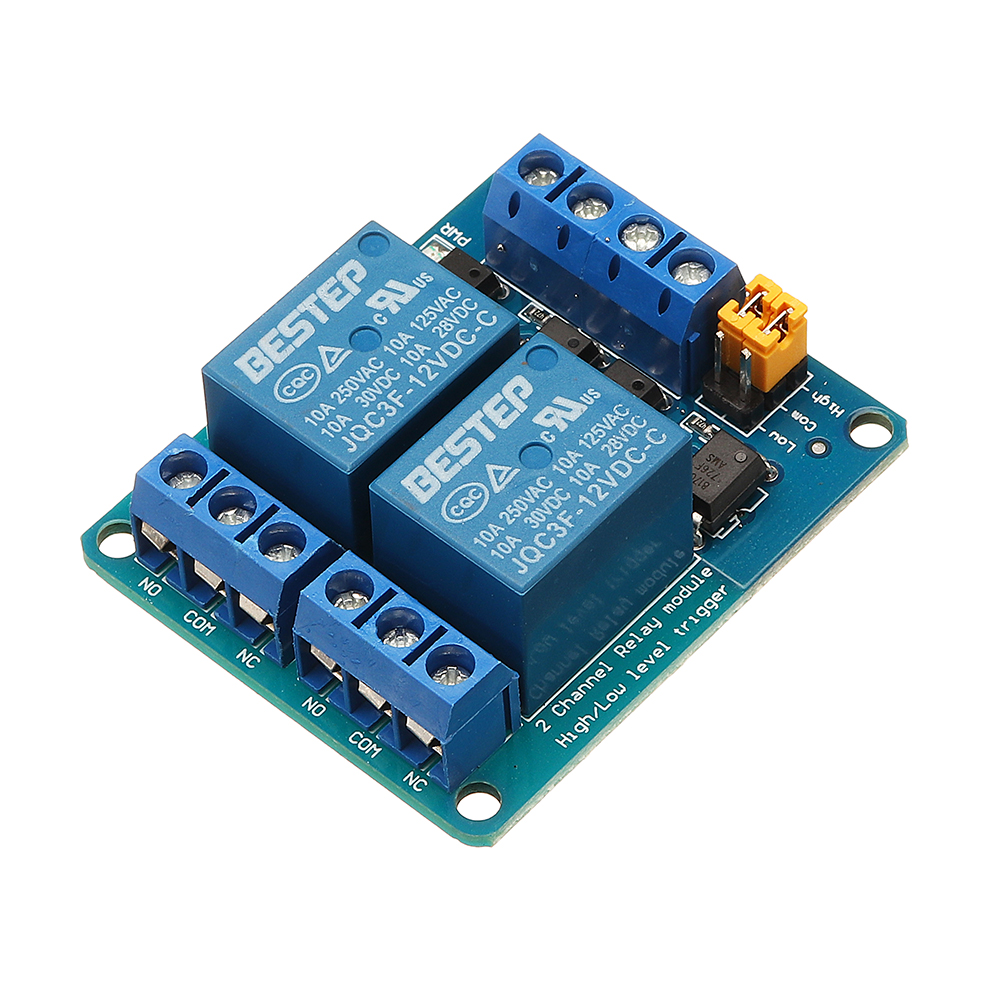

Relay output: there is a 6 wire interface, all interfaces can be directly connected to lead to facilitate user use.

1, NO1--NO2: Relay normal open, the relay suspends before pulling in, and then short-connect with the COM.

2, COM1--COM2: Relay common interface

3, NC1--NC2: Relay normal close, short connected with COM before pulling inand suspended after pulling in.

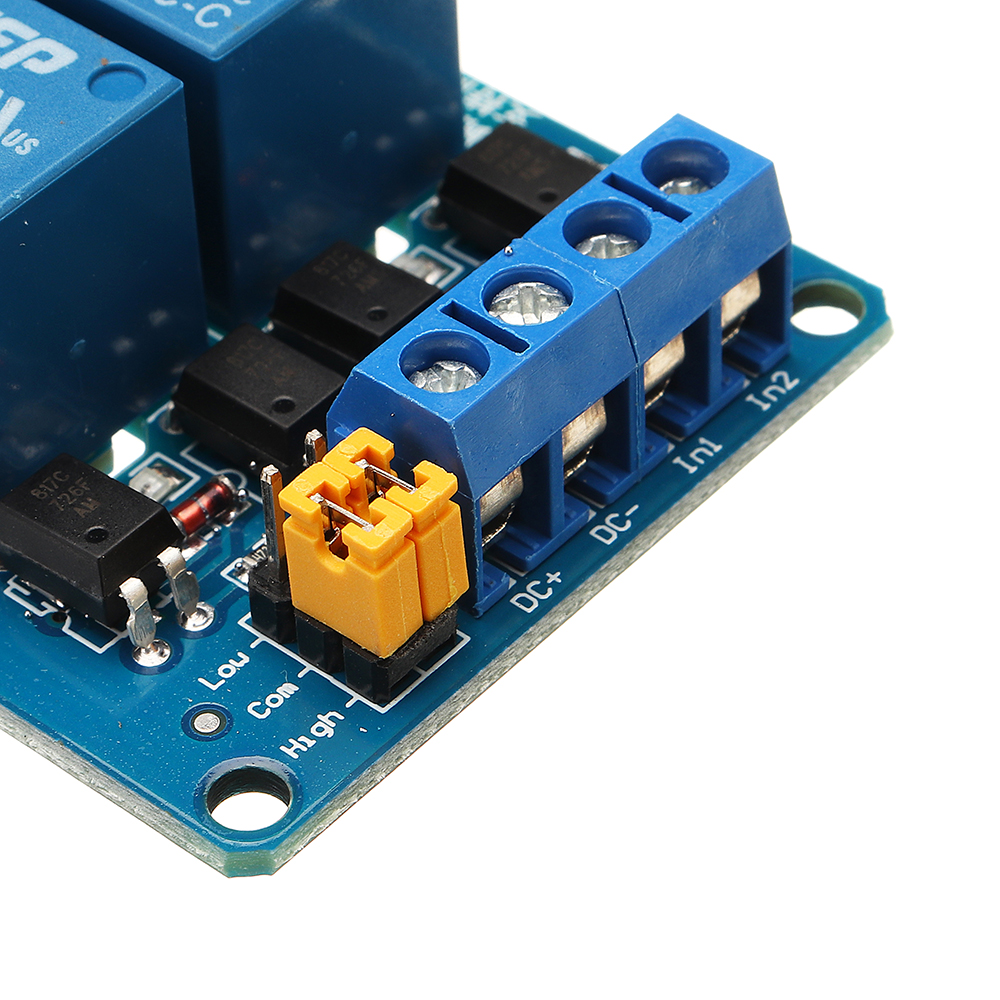

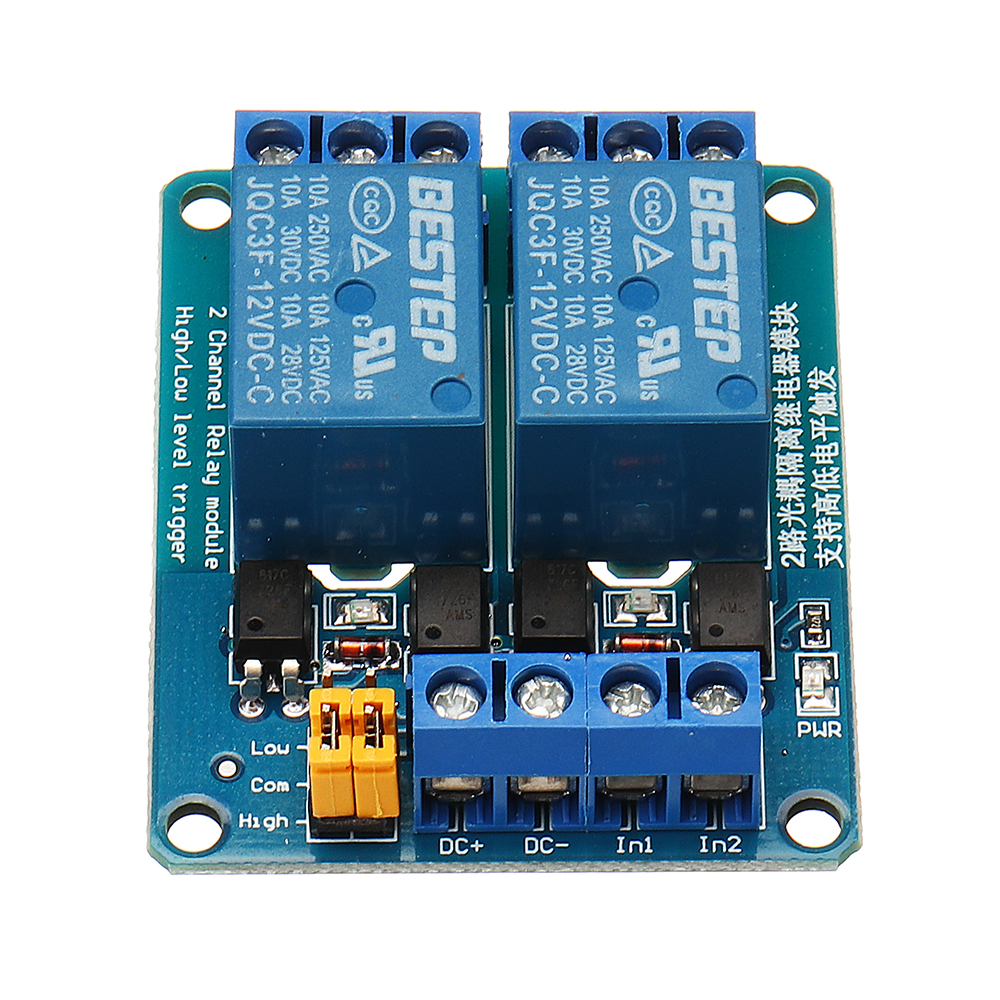

High and low level trigger option:

1. S1-S2 is the high level trigger selection of relay 1 Channel -2 Channel.

2. When COM is short connected with LOW, the corresponding relay is LOW level trigger, while when COM is short connected with high end is high level trigger.
