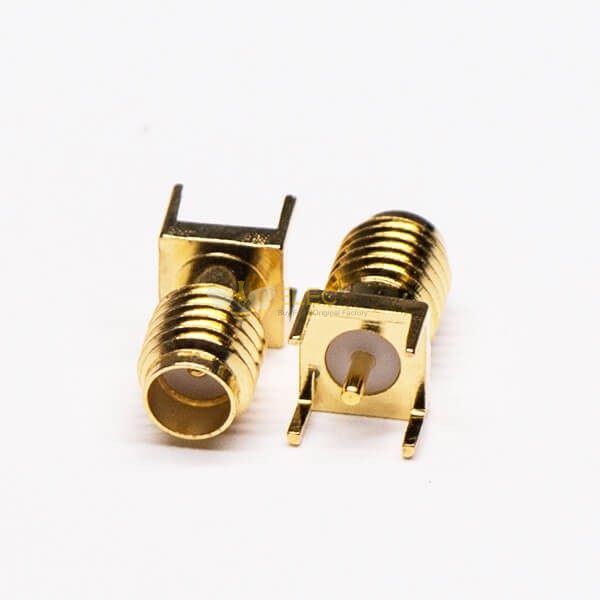

Elecbee 20pcs SSMA Female Connector Straight RF Connector Through Hole for PCB

SKU: 20XEB-018-0004
Favorites
Key Features

Features:

  • SSMA Connector,Female/Jack,Straight/180°,Through Hole,PCB Mount,Gold Plated;
  • Space saving alternative to standard SMA;
  • Straight jack and straight plug configurations available;
  • 50 Ohm nominal impedance;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application ofxa0SSMA Connectors:

  • Mil-Aero
  • Telecommunication
  • RFID
  • Antennas
  • Test and measurement
  • Radar systemsxa0
Show More
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
35 GHz
Connector Series
SSMA
Color
Gold
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.
Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
G****o
Perfect for compact RF designs. These SSMA female connectors save space vs SMA and handle up to 14 GHz with stable 50-ohm impedance. Soldered cleanly onto PCB.
M****n
Good build quality with gold-plated brass body and phosphor contact. Fit perfectly on my board. Only wish there were more mounting guides included.
K****i
Impressed by the performance up to 6 GHz—VSWR is solid at 1.3. The teflon insulator and durable plating make these reliable for harsh environments.
N****i
Works as advertised, but very small and tricky to hand-solder. Make sure you have fine-tipped tools. Good RF leakage spec though (-128 dB).
G****s
Great value for high-frequency PCB work. Withstands extreme temps and rated for 500+ mating cycles. Love that they’re gold-plated for corrosion resistance.
