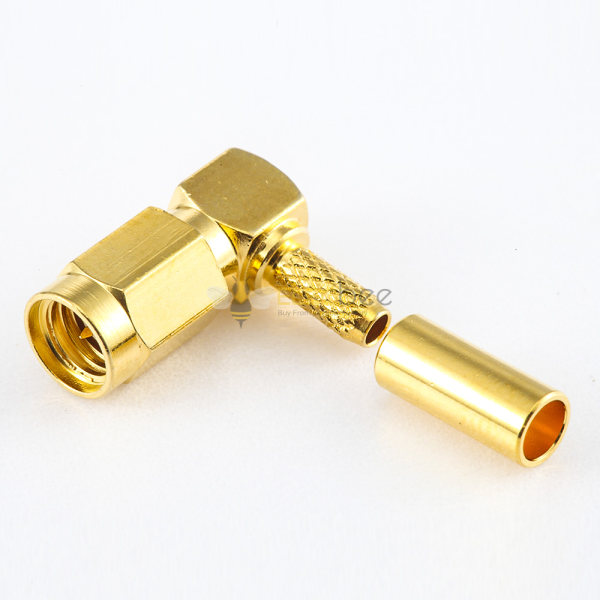

Elecbee SSMA Connector Types Male Right Angle Crimp RG174/RG316 Cable

SKU: EB-211-0190
Favorites
Key Features

Features:

  • SSMA Connector,Male/Plug,right angle/90°,Solded Type,Gold Plated;
  • Space saving alternative to standard SMA;
  • Straight jack and straight plug configurations available;
  • 50 Ohm nominal impedance;
  • From the OEM Original Factory, same quality with much better price.

Appliance:

  • Mil-Aero
  • Telecommunication
  • RFID
  • Antennas
  • Test and measurement
  • Radar systems
Show More
Attribute
Value
Connector Type
Male
Number of Ports
1
Mounting Type
Cable Type
Termination
Crimp
Contact Type
Male Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
35 GHz
Suitable Cable
RG174, 316
Connector Series
SSMA
Color
Gold
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper Alloy
