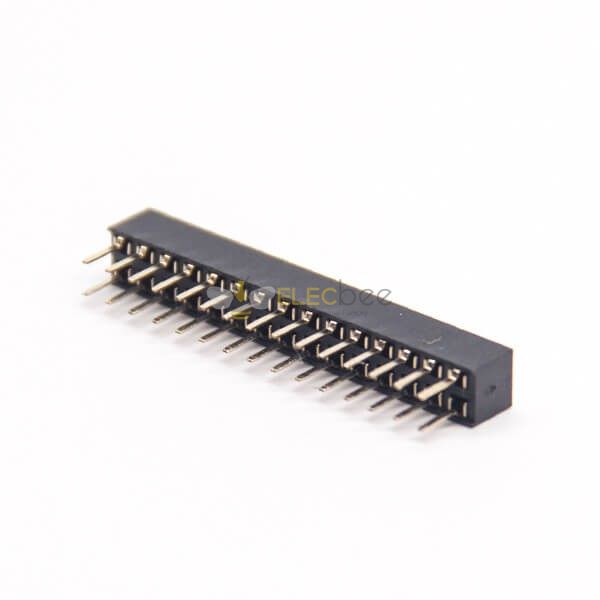

Elecbee 30 Pin Header Straight Female DIP Type Dual Row PCB Mount 2.54 Center Spacing

SKU: EB-609-0117

Favorites

Key Features

Features:

Female Header Connector,Female/Jack,Straight/180°,30Pin,1.27mm,Double Row,Through Hole,PCB Mount,Solder Type,Gold Plating，Black,Square
Normally associated with ribbon cable connectors, or worked as recipients for jumpers
consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Applicationxa0

Electronic device
Home appliances
Electrical instruments
Automotive: Car navigation LCD panel and so on.
Lighting industry
The above applications are typical but not limited, these products are widely use in many fields

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

v****a

Perfect fit for my custom PCB project. The gold plating ensures solid connectivity, and the 2.54mm spacing matches standard headers exactly. Soldered cleanly with no issues during reflow.

I****i

Good quality female header, black PA6T insulator looks durable. Used in a car navigation prototype—handles vibration well so far. Withdrawal force feels just right, not too loose.

j****n

Exactly as described. Works great with ribbon cables and fits snugly onto my control board. Love that it's rated up to 105°C—ideal for enclosed spaces.

Z****o

Solid connector, but took a bit of care to align during soldering due to the 1.27mm pitch. Not for beginners, but performs reliably once mounted.

A****a

Great value for OEM-grade parts. Compared to others I've used, this one has better plating and consistent contact resistance. Will definitely reorder.
